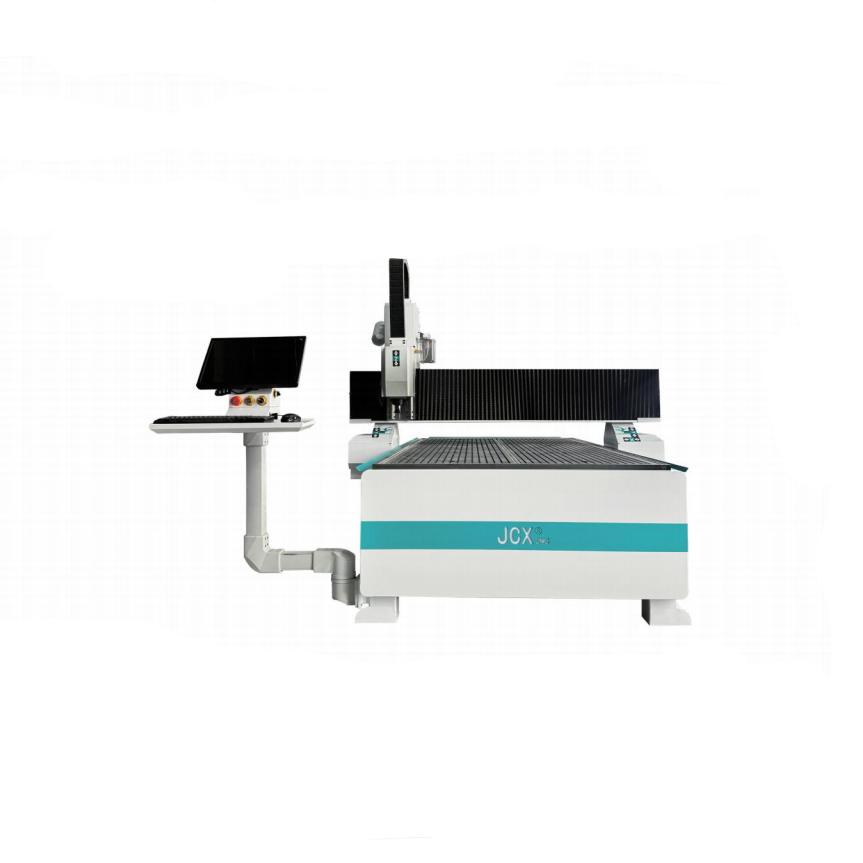

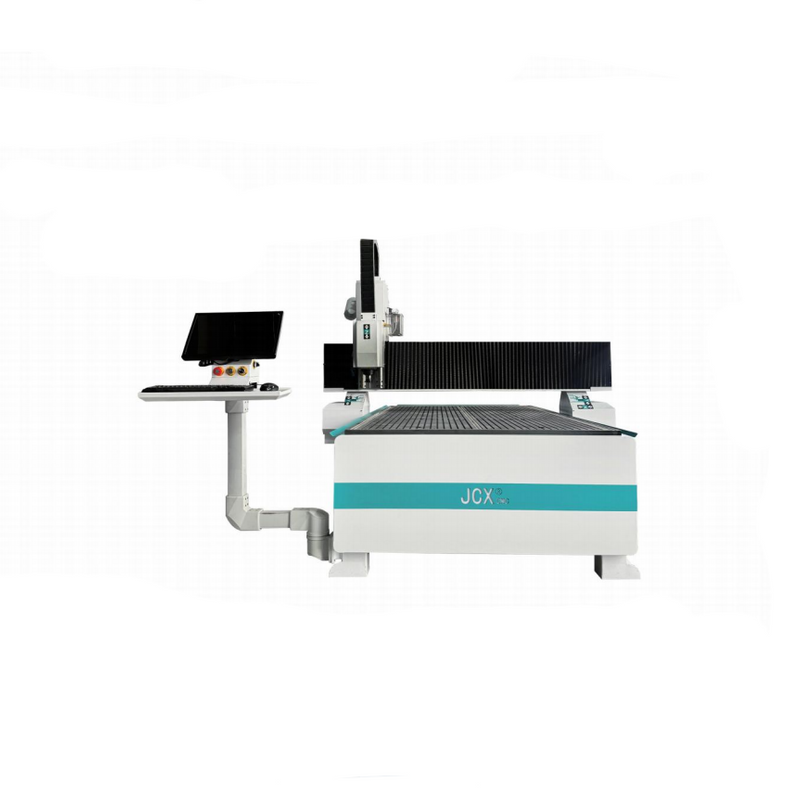

1325 CNC Engraving Machine ＋CCD

This 1325 CNC Carving Machine+CCD device, with the function of CCD, can be directly connected to the device after computer composition, and can quickly cut and carve desired styles on wooden materials, improving the efficiency and versatility of wood carving and processing. It is a cost-effective machine equipment.

Availability:

Quantity:



Inquiry Add to Basket PDF Export

Model:
JCX-1325
Brand:
JCX

Product Description

1325 CNC Engraving Machine ＋CCD

Technical Parameter:

Working Area	13002500300 MM
Traveling Speed	>30m/min
Working Speed	>15m/min
CCD Camera	With CCD camera
Control System	NCcontrol system
Working Table	Vacuum table and T-slot
Guide Way & Block	20 mm linear guide rail
X,Y Transmission System	Gear rack
Z Transmission System	Ball screw
Spindle	6KW air cooling spindle
Spindle Speed	0-24000rpm
Tool Diameter	Φ3.175mm,Φ6.0mm,Φ12.7mm
Inverter	7.5 KW inverter
Motor & Drive	Stepper motor & drive
Machine Weight	1180kgs
PS: All the working area and specifications can be customized according to your requests.

Samples :

Panel furniture, cabinets and wardrobes, office furniture, custom furniture. Wardrobe cabinets, cabinets, computer desks, panel furniture, office furniture, wooden speakers, wooden kitchen utensils and other panel furniture plane cutting, milling, chamfering, punching, carving and other auxiliary processing.

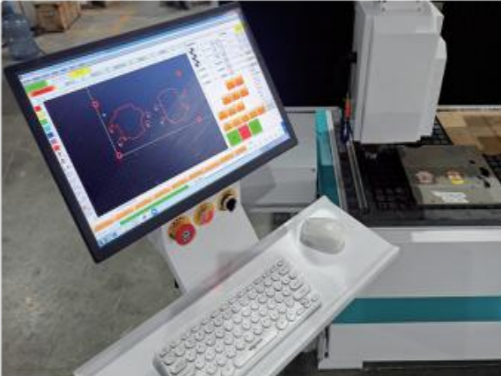

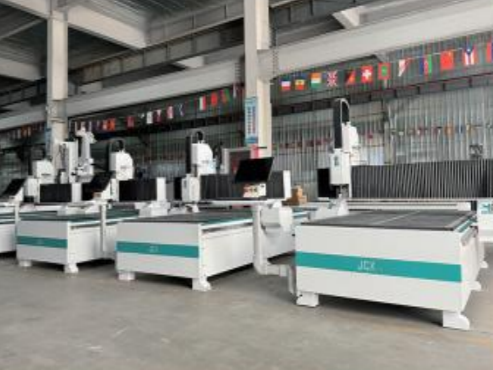

ScreenShot_2026-03-03_091930_547 ScreenShot_2026-03-03_091940_257 ScreenShot_2026-03-03_091948_737
