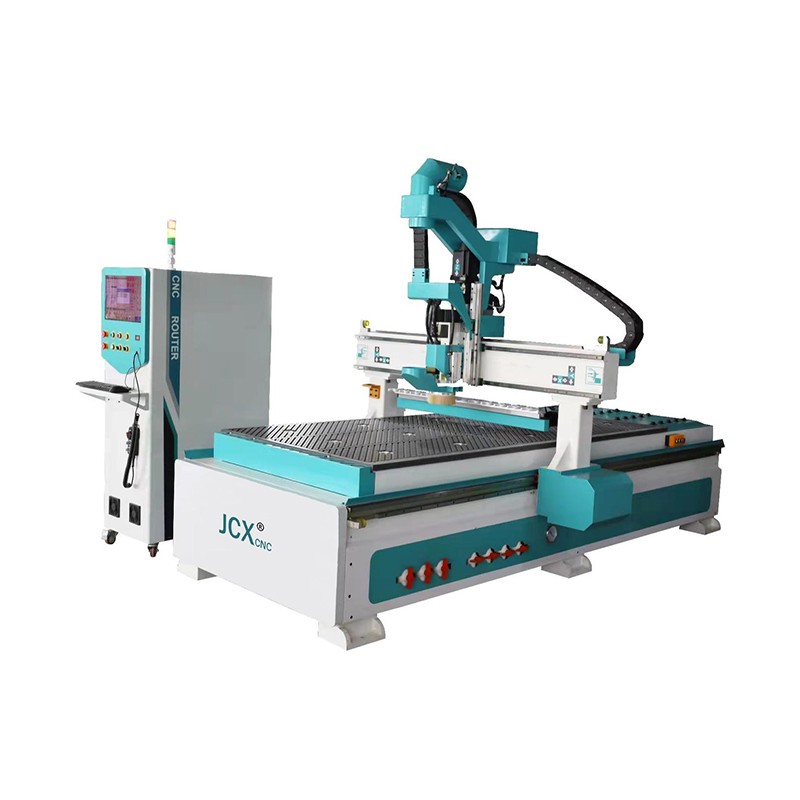

1325 CNC router Wood CNC Engraving Woodworking CNC cutting machine
Machine advantage:
1. ATC function: Linear automatic changing tools ,12 tools, saving time of changing tools.
2. Bed structure : Whole bed is steel structure welding , strong rigidity, no deformation.
3. Servo motor and driver: Taiwan LNC servo motor and driver, high speed and precision
4. Guide rail: Taiwan square guide rail, running smoothly . high precision .long lifespan.
5. Vacuum table : With powerful absorbing power ,ensure the flatness of material surface.
6. Two Rollers : Two Rollers for fixing small piece of materials for more stable working.
7. Control system: Easy operation, help correct errors in processing files in advance .
8. Automatic oil filling system: Lubricate transmission part，Improve working life of machine.
Technical parameter:
Model | JCX-L12 |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 250mm |
Table size | 1380x2750mm |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Bed body structure | Heavy steel structure |
Table Type | Vacuum table |
Vacuum pump | 7.5KW water cooling vacuum pump |
X,Y ,Z Structure | XY gear wheel, Z ball screw |
Max. Power Consumption | ≤20KW |
Max.Traveling Speed | 45000mm/min |
Max. Working Speed | 25000mm/min |
Software working environment | G-code/HP-GL |
Spindle | 9kw ATC JST air cooling spindle |
Inverter | 11kw hpmont INVERTER |
Tools | 12 tools linear |
Motor and Driver | 1.7KW Taiwan LNC servo motor and driver |
Reducer | 850 Japan Shimpo reducer |
Spindle Speed | 0-18000rpm/min |
Vacuum Cleaner | 5.5KW Vacuum Cleaner |
Working voltage | AC220V/380V 50Hz/60Hz |
Control System | Taiwan LNC2200 controller system |
Guide rail | Longma 25mm Square rail TAIWAN BRAND |
Pushing material system | Automatic pushing material system |
Tool change system | Automatic tool change system |
Tool setter | Automatic tool setter |
Control cabinet | Independent cabinet |
N.W./G.W. | 2300KGS /2900KGS |
Packing Size | 3300*2150*1850mm |
PS: All the working area and specifications can be customized according to your requests.
Design feature:

| Whole machine bed structure The frame and beam are welded by thick-walled rectangular pipes, with excellent rigidity and vibration resistance |
 | High precision linear guide rail With high speed movement and high processing accuracy，improve machine lifespan |
 | Ball screw Ensure sliding plate, caliper and spindle with high-precision movement in Z axis . |
 | Gear wheel and rack X,Y-axis with helical gears. , ensure high speed performance |
 | Working table with T-slot Table is made of aluminum alloy profiles with T-slot for pressure plate fixing material, ensure flatness of material surface. Table surface is covered with a special protective layer of wear-resistant plastic for preventing damage of tools and workbenches. |
 |
Industrial Electric Spindle 3.2 kW-18000 RPM "HQD" (Chinese brand) The spindle design is based on the best design solution of the world's leading spindle manufacturer HSD (Italy). High speed (24000 rpm) and optimal power (3.2kW) enable wood parts as well as DSP, MDF, plastic, acrylic glass and other materials to be processed to make high-quality furniture, doors, advertisements and souvenirs. The spindle cooling is a circulating water pump.
|
 | Dust hood machine with a dust removal hood, can be connected to a dust removal device and effectively remove dust and chips in the working area. |
 | High-precision stepper motor Ensure machine working stable and high quality . |
 | Tools setter Automatic tool length measurement and calibrate sensor , improve machine performance and safety operation. |
 | Control system: NCSTUDIO Fully supports 3D processing, can edit and create programs directly near the machine tool, and the system graphical interface is simple and clear. The system provides high-performance and high-quality products, short set-up time, and easy operation. To install, you must install the NC STUDIO board into the computer system unit and connect it to the machine tool with a signal cable. |
 | Design software CAD/CAM design software, such as type3,Artcam,Castmate ,Wentai and so on. |
Applicable industry:
Wood furniture processing industry, Home decoration, Wooden crafts processing industry, Large panel cutting , large relief carving products, Car modification， Loudspeaker Box and musical instruments making industry.
Application Area:
Engraving ；
---engrave various materials
Furniture :
---simple and complex exterior walls (including artistic carvings), furniture linings, exclusive furniture elements with intricate carvings. Curve cutting of DSP, DVP, MDF (including laminated products).
Interior decoration:
---coffee machines and pool tables, reliefs, stairs, skirting and more intricate carvings.
Exterior decoration:
--- carve doors and windows with curly patterns.
--- decorate wooden houses and bathrooms with decorative elements.
--- decorate balconies, pavilions, fences with wood plank patterns.
Customized product:
---mirror frames, panels, images of people and animals, souvenirs, coffins, desks, watches, etc.
Making doors:
--- Milling curved cuts on the fiber door of glass and fiber.
--- Fabrication of fibers, including artistic carving.
--- Wood inlaid doors, lining iron doors, etc.
--- Custom doors made of wood.
Making models :
---make master models, casting models, prototypes, vacuum forming molds by various materials (including aluminum, brass, bronze and plastic molds).
Advertising:
--- Cutting letters, logos, brackets and logos by plastic, PVC, acrylic and other materials.
Samples:
Applicable material:
Solid wood panel, Artificial board, Acrylics, PVC, MDF, Carbon fiber
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
