JCXLaser-1325
JCX

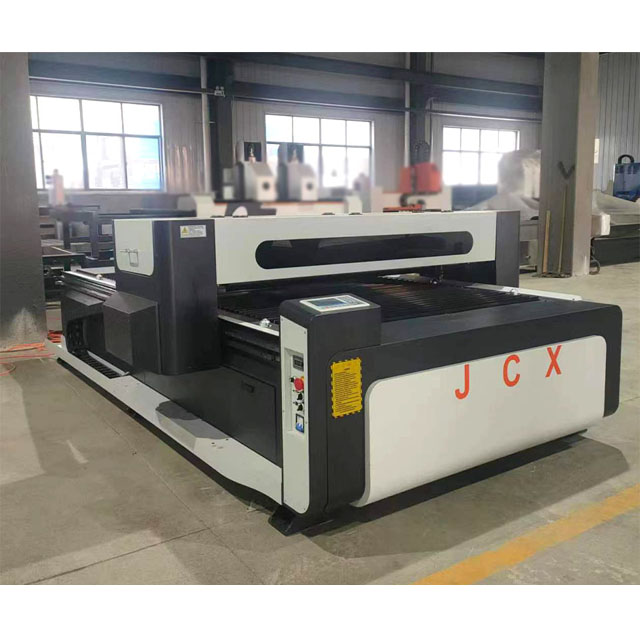

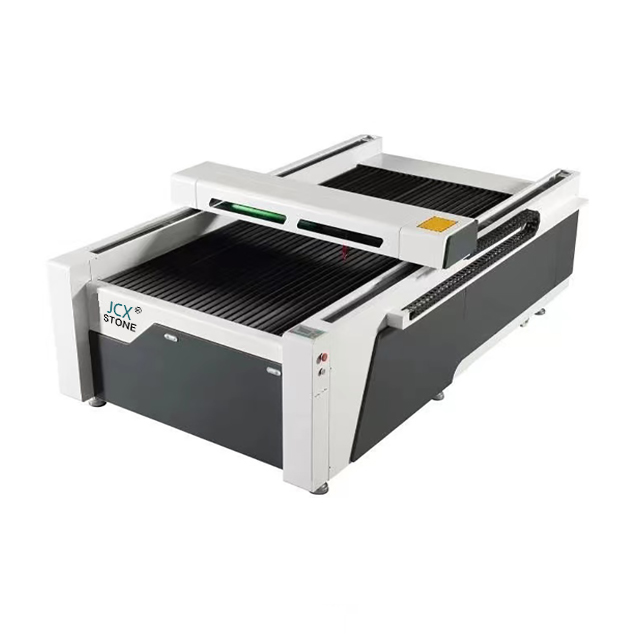

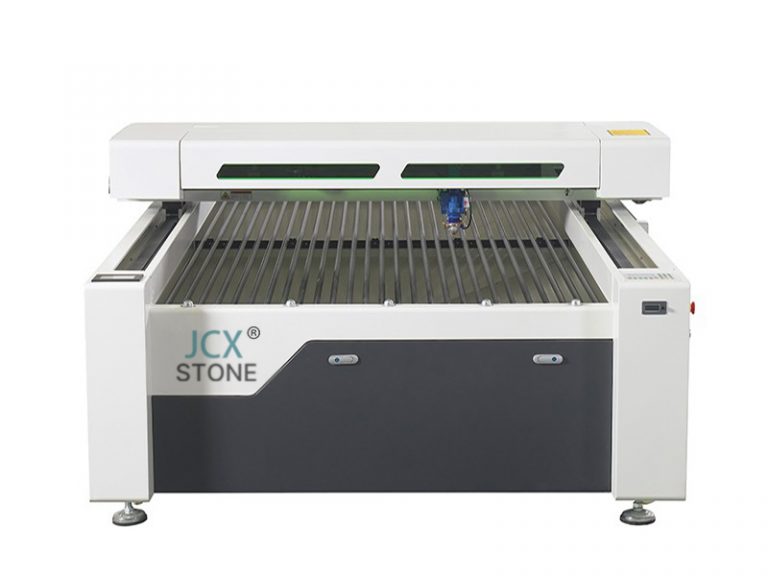

1325 Co2 Laser Engraving Cutting Machine
Product Parameters :
Item | Specification | Quantity |
Machine size | W:2000mm; L: 3500mm; H: 1300mm | |
Machine weight | About 1200kG | |
Working area | W: 1300mm; L: 2500mm | One set |
Axial travel | X: 1300mm; Y: 2500mm; Z: 40mm | |
Positioning accuracy | ±0.1mm | |

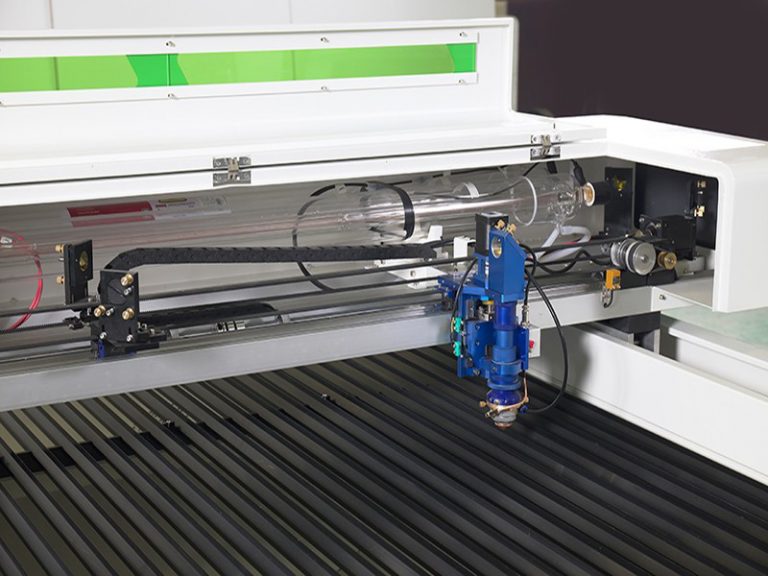

Laser tube： | 130W laser | One set |
Focus lens and Reflect mirror | Φ20 2.5’ lens ,Φ30 reflected mirror | One set |
Light path | 3 reflected mirrors | |
Gearing and Motor | Belt and Step motor | |
Following system | One set | |

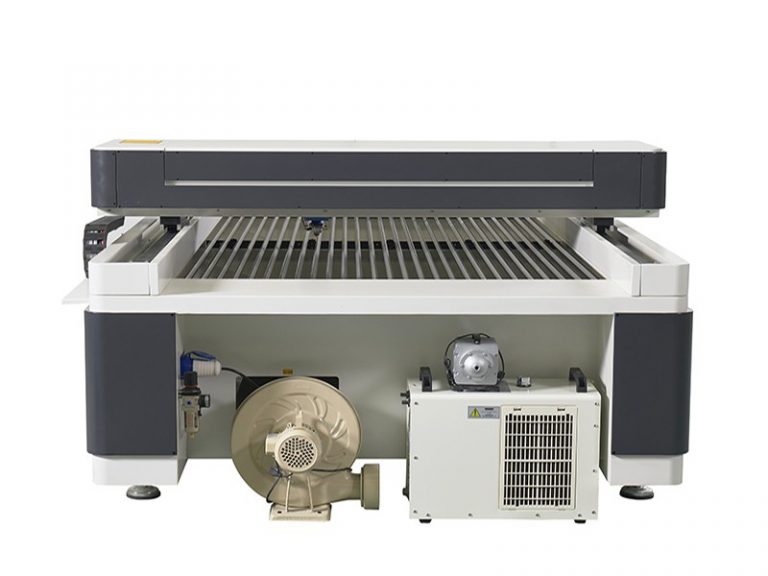

Chiller | CW5200 | One set |
Controller & Software | Motion control card and software | One set |
Power line | 5m | |
Vent pipe： | Interface dimension φ200mm | 3m |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
Product Advantages :
1.Fast engraving speed, up to 0-60000mm/min.
2. Wide range of applicable materials and ranges.It applied to stone image sculpture,fine pattern carved,marking etc,wide application in the tombstone carving,stone handicraft carving,stone cultural carving and other application field.It can carve the material of wood,glass,leather,bamboo products,acrylic,plastic material ,etc.It can also cutting hollow for wood,acrylic,leather,cloth,paper products,etc.
3.Non-contact engraving.
FAQ :
1. What is the size of the laser engraving machine?
Our commonly used sizes are 400*600mm, 600*900mm, 1300*900mm, 1300*2500mm.
2. Laser tube life?
A laser tube can be used for 10,000 hours.
3. Laser tube type and power?
We mainly have three brands of laser tubes: EFR, RECI, SPT.
The power is 40W, 60W, 90W, 100W, 130W, 150W.
Company Introduction :

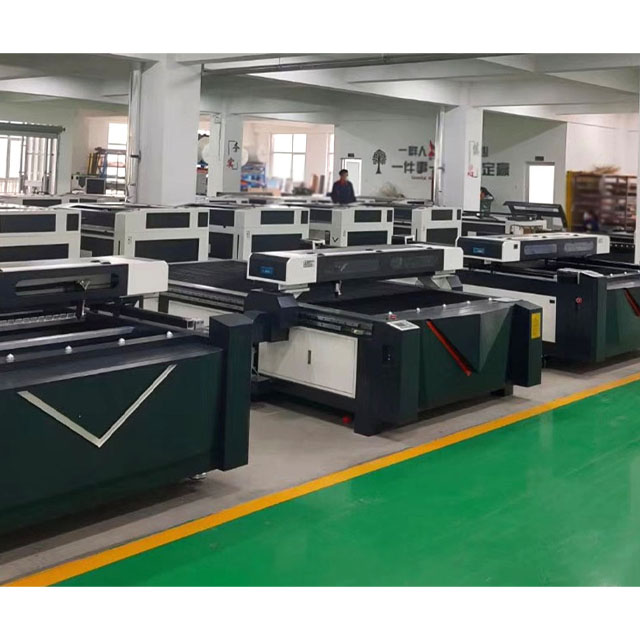

Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
