JCXLaser-1325
JCX

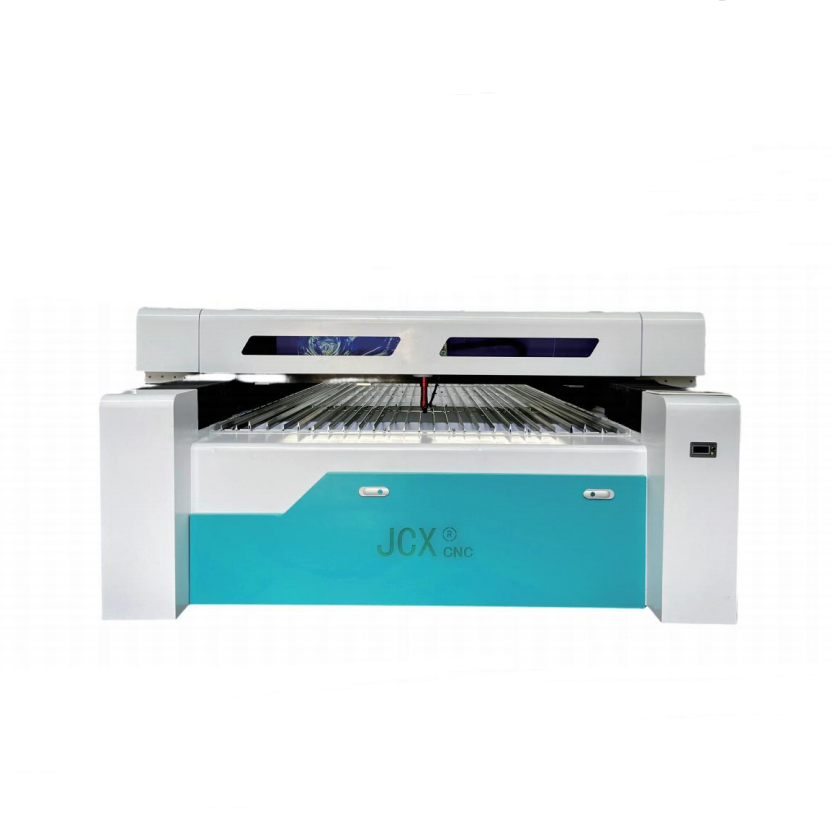

1325 Co2 Laser Engraving Machine ＋CCD
Product Parameters :
Model | JCX-1325 |
CCD Camera | With CCD camera |
Laser type | Co2 sealed laser tube, water-cooled,10.6um |
Laser power | 150W |
Working size | 1300 X 2500mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 30mm |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) 2x2mm (Chinese) |
Laser Energy control | Dual - mode (Software or Manual mode) |
Control syste | Ruida |
Machine dimensions | 3650x2010x1000mm,700kgs |
Total power | 4000W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :

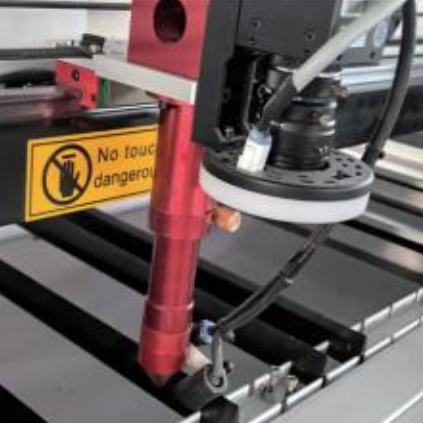

This machine is equipped with CCD function, which has the advantages of fast cutting and high precision of laser cutting machine. After the laser cutting machine starts the automatic edge finding function, the cutting head can start from a specified point and calculate the inclination angle of the board by the positions of two vertical points on the board, thereby adjusting the cutting process and completing the cutting task. In the processing of materials, the weight of the sheet can reach hundreds of pounds, making it very inconvenient to move. By using the automatic edge finding function of the laser cutting machine, the skewed sheet can be directly processed, reducing the manual adjustment process
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.

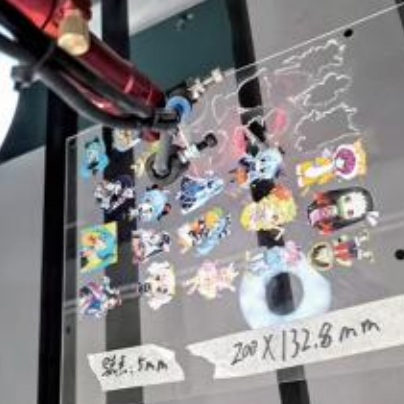

Samples :
1325 Co2 Laser Engraving Machine ＋CCD
Product Parameters :
Model | JCX-1325 |
CCD Camera | With CCD camera |
Laser type | Co2 sealed laser tube, water-cooled,10.6um |
Laser power | 150W |
Working size | 1300 X 2500mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 30mm |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) 2x2mm (Chinese) |
Laser Energy control | Dual - mode (Software or Manual mode) |
Control syste | Ruida |
Machine dimensions | 3650x2010x1000mm,700kgs |
Total power | 4000W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :
This machine is equipped with CCD function, which has the advantages of fast cutting and high precision of laser cutting machine. After the laser cutting machine starts the automatic edge finding function, the cutting head can start from a specified point and calculate the inclination angle of the board by the positions of two vertical points on the board, thereby adjusting the cutting process and completing the cutting task. In the processing of materials, the weight of the sheet can reach hundreds of pounds, making it very inconvenient to move. By using the automatic edge finding function of the laser cutting machine, the skewed sheet can be directly processed, reducing the manual adjustment process
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
