JCXLaser-1325
JCX

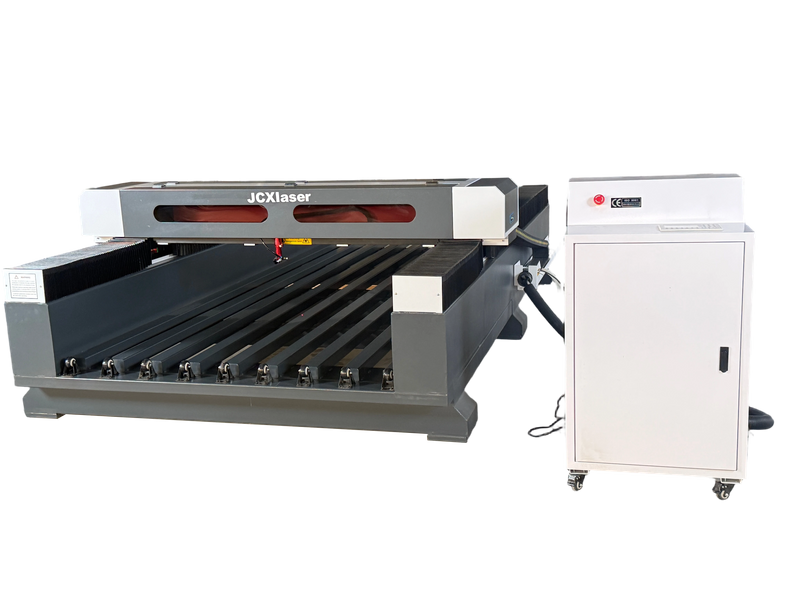

1325 Stone Laser Engraving Machine
Product Parameters :
Model | JCX-1325 |
Laser type | Co2 sealed laser tube, water-cooled,10.6um |
Laser power | 150W |
Working size | 1300 X 2500mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 30mm |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) 2x2mm (Chinese) |
Laser Energy control | Dual - mode (Software or Manual mode) |
Power supply | AC110-220V +10%.50-60HZ |
Control syste | Ruida |
Machine dimensions | 3650x2010x1300mm,1200kgs |
Total power | 4000W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :

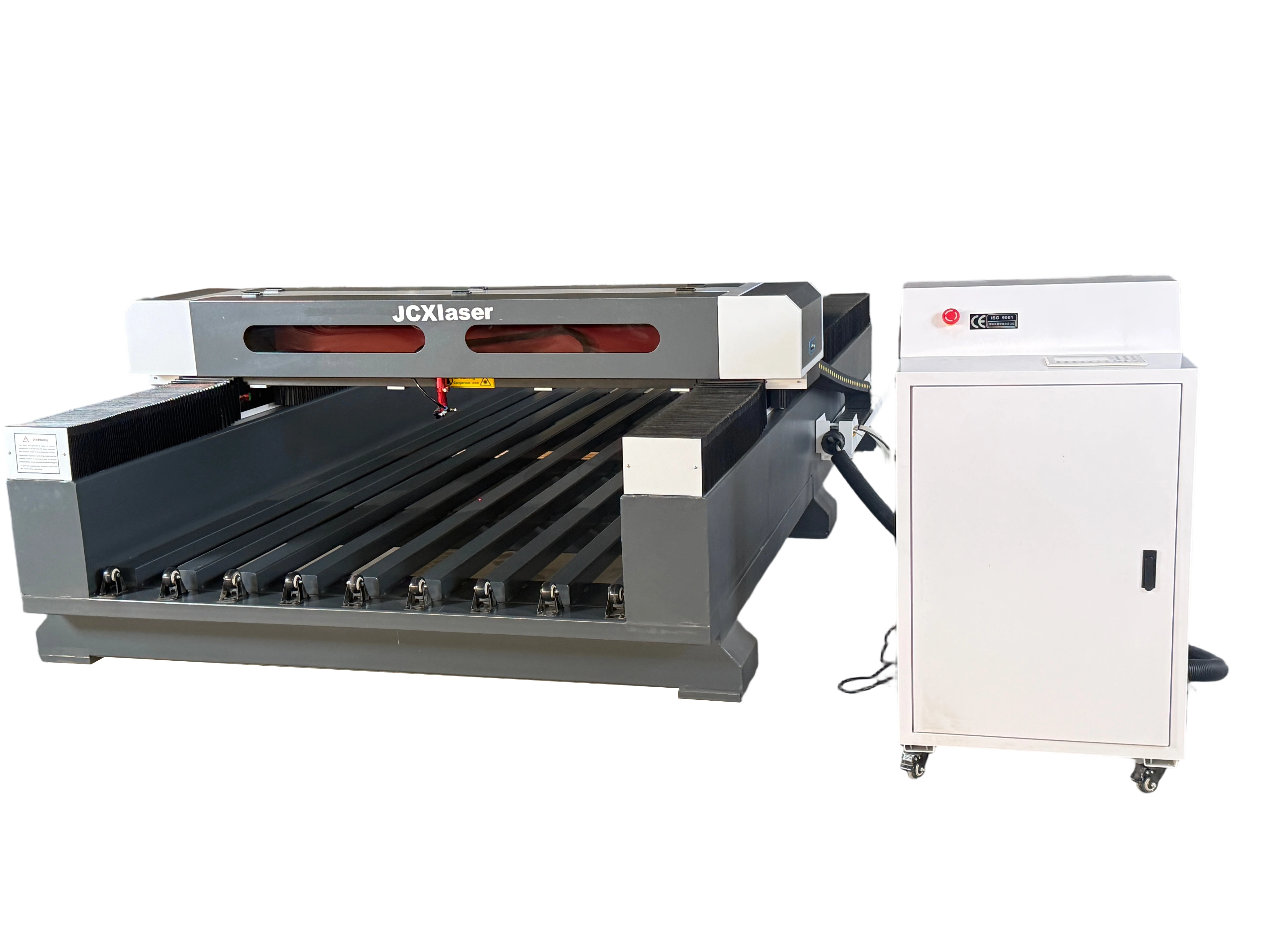

1325 Stone Laser Engraving Machine
Product Parameters :
Model | JCX-1325 |
Laser type | Co2 sealed laser tube, water-cooled,10.6um |
Laser power | 150W |
Working size | 1300 X 2500mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 30mm |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) 2x2mm (Chinese) |
Laser Energy control | Dual - mode (Software or Manual mode) |
Power supply | AC110-220V +10%.50-60HZ |
Control syste | Ruida |
Machine dimensions | 3650x2010x1300mm,1200kgs |
Total power | 4000W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
