JCXLaser-1390
JCX

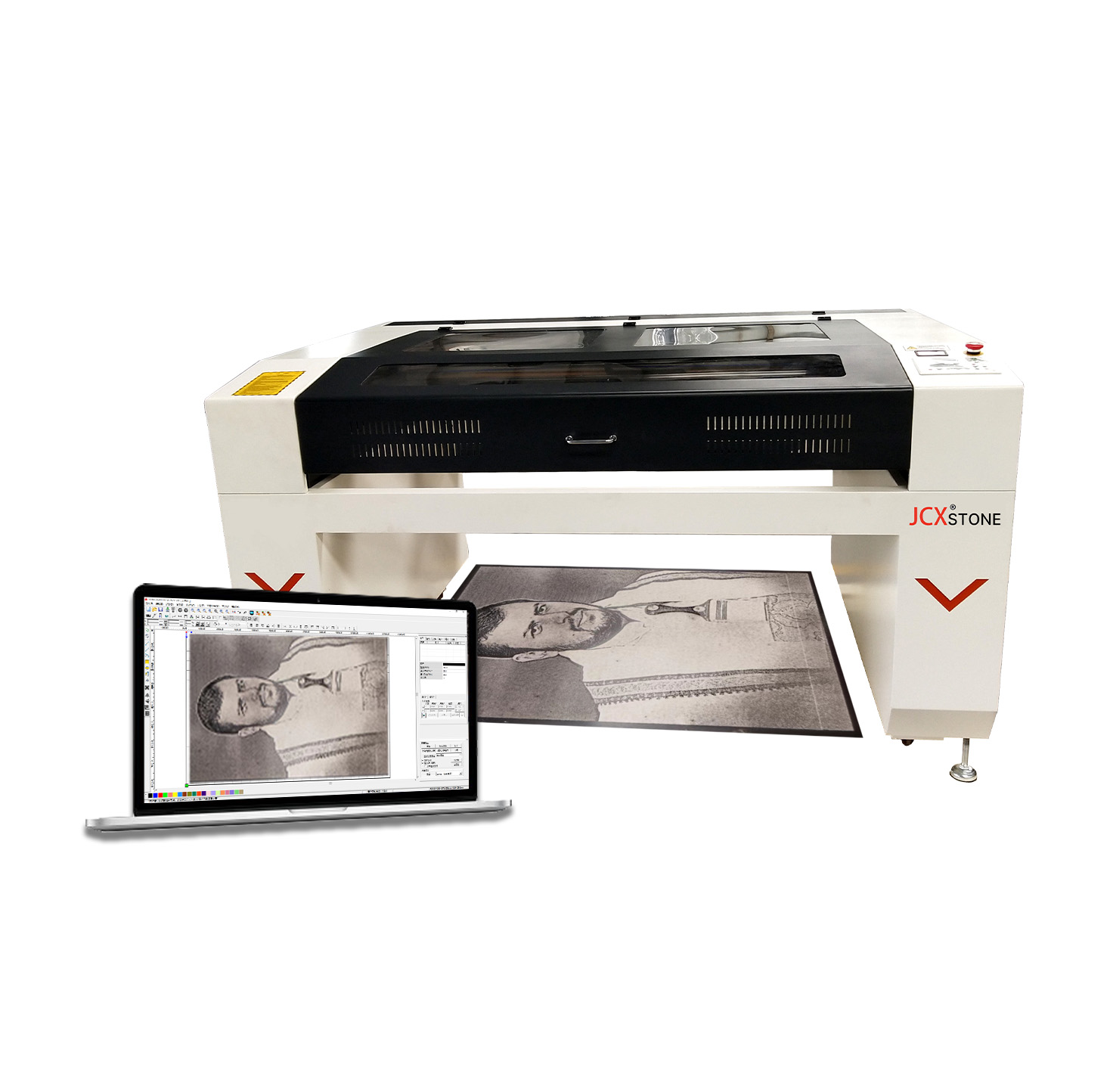

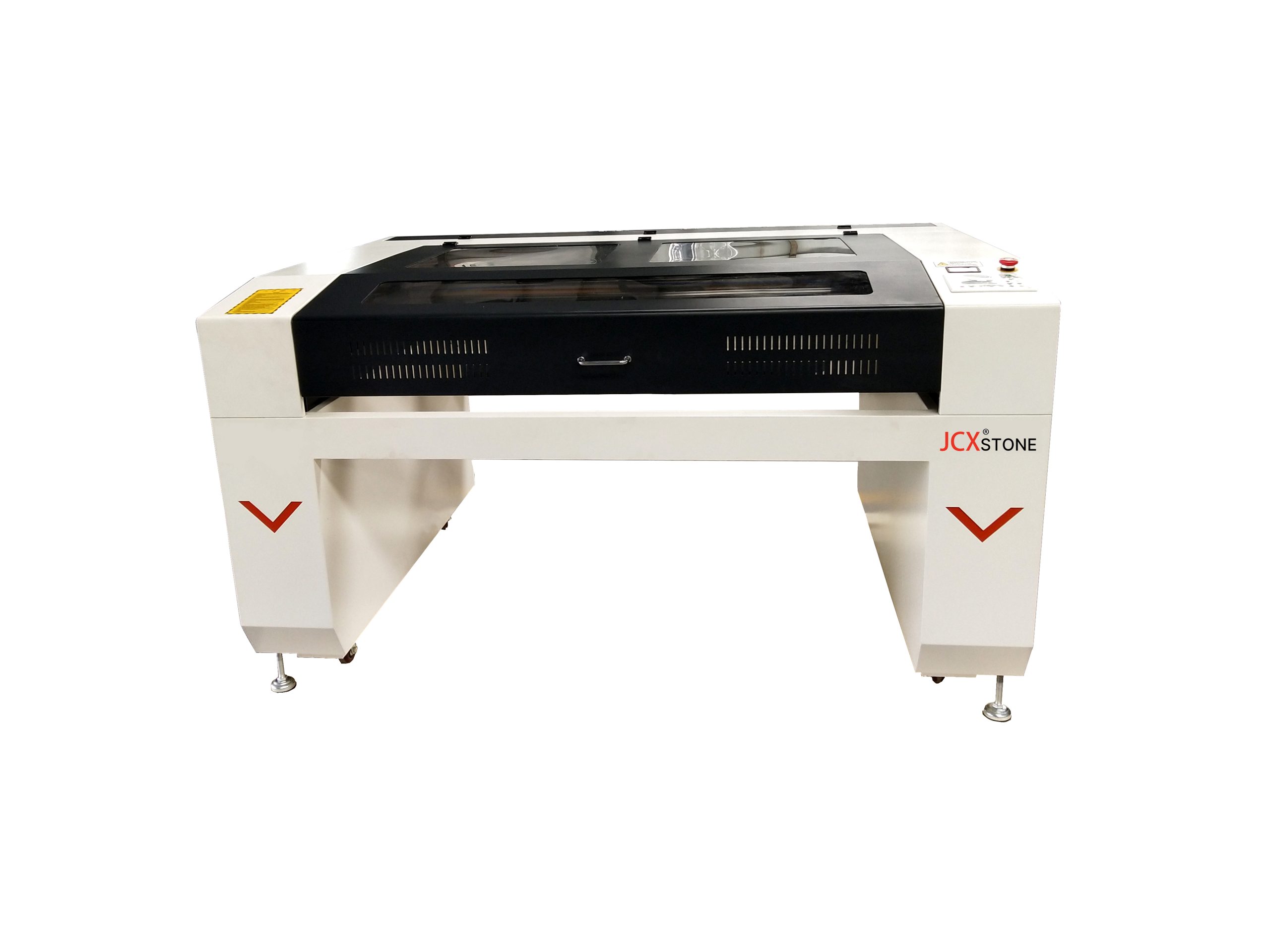

1390 Co2 Laser Engraving Cutting Machine
Product Parameters :
Model | JCXstone-1390 |
Laser type | CO2 laser tube |
Laser Power | 60W |
Work size | 1300*900mm |
Engraving Speed | 0-60000mm/min |
Cutting Speed | 0-30000mm/min |
Location Precision | ≦±0.01mm |
Max Resolution | 2500DPI |
Minimum Shaping Character | Chinese:2*2mm,English:1*1mm |
Laser Control | Software and manual mode |
Graphics Format Support | AI,DXF,PLT,BMP,DST |
Power Supply | AC220V,50HZ/AC110V 60HZ |
Work table | Knife-strip or Honeycomb or push-pull platform |
Dichroic Cutting | Yes |
Operating Environment | Temperature 0-45℃,Humidity:5-95% |
Dimensions | 1950*1460*1050mm |
Total power: | ≤1100W |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
Product Instructions :
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
