JCXLaser-1390
JCX

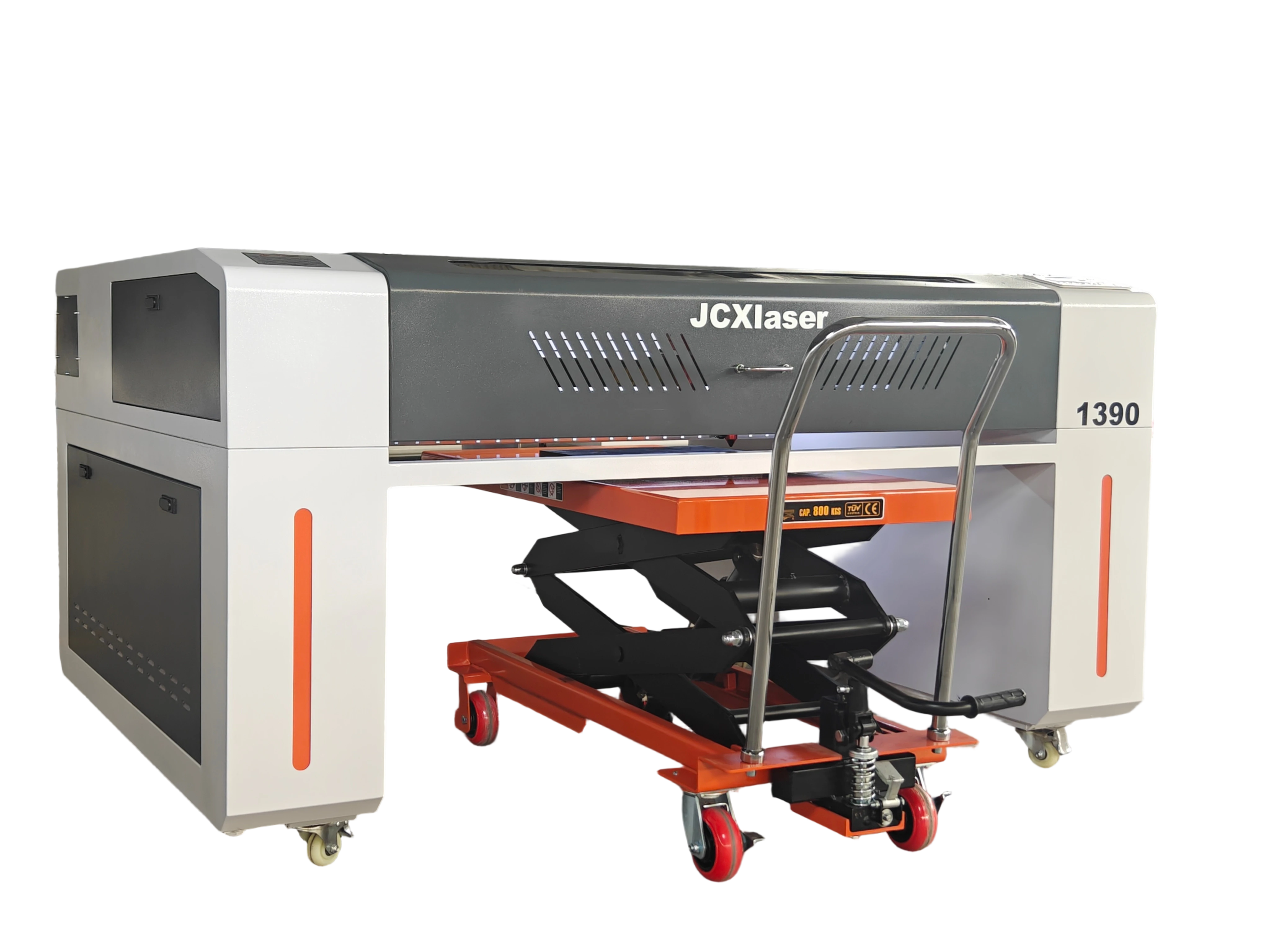

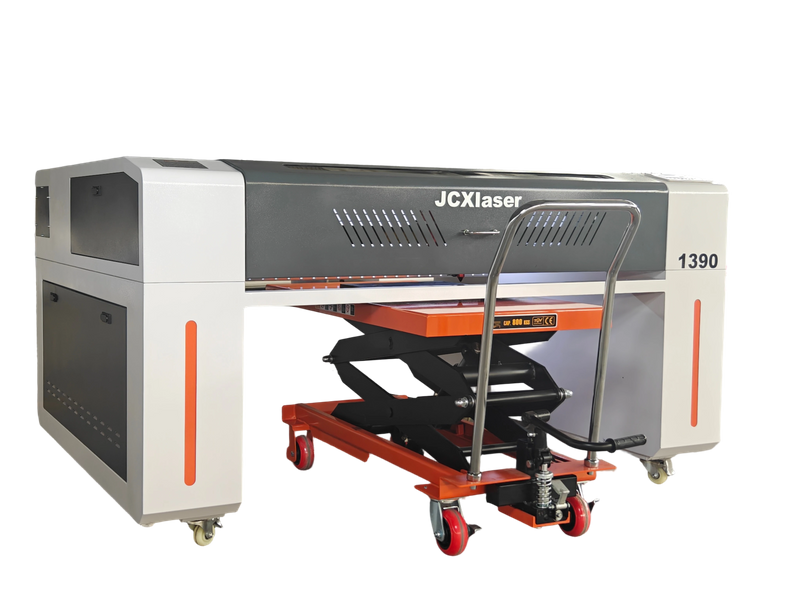

1390 Stone Laser Engraving Machine
Product Parameters :
Model | JCXstone-1390 |
Laser type | 10.6um Co2 sealed laser tube |
Laser power | 60W(80W,100W,130W option) |
Working size | 1300 X900mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 20mm ( when laser power 100W , for acrylic ) |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) |
Laser Energy control | Dual –mode ( Software or Manual mode) |
Graphic Format | AI , DXF, PLT, BMP,DST |
Power supply | AC110-220V，50-60HZ |
computer system | Windows XP , Windows 7 ,Windows 8 |
Total power | ≤1100W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
1390 Stone Laser Engraving Machine
Product Parameters :
Model | JCXstone-1390 |
Laser type | 10.6um Co2 sealed laser tube |
Laser power | 60W(80W,100W,130W option) |
Working size | 1300 X900mm |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-45000mm/min |
Maximum processing depth | ≤ 20mm ( when laser power 100W , for acrylic ) |
Position accuracy | ≤ 0.01mm |
Max scanning accuracy | 2500DPI |
Min shaped character | 1×1mm ( English) |
Laser Energy control | Dual –mode ( Software or Manual mode) |
Graphic Format | AI , DXF, PLT, BMP,DST |
Power supply | AC110-220V，50-60HZ |
computer system | Windows XP , Windows 7 ,Windows 8 |
Total power | ≤1100W |
PS:All the working area and specifications can be customized according to your requests. | |
Machine Feature :
1. High precision: 32-bit DSP controller with 3-phase stepper motor;
2. Fast speed: Imported six balanced outer sliding high-speed linear slides with higher stability and faster speed.
3. Long life: High-performance long-life catalytic laser tube imported ZnSe focusing mirror, metal eye mirror high standard long-life-consumables saving the cost of customer consumables.
4. Multiple functions: Support power-off continuous carving function.If power is off suddenly. the machine can continue to work after restart.
5. Laser head: The laser head can be increased or decreased at any time and the single head and double head models can be selected at will.
Samples :
