JCX stone-2013S
JCXStone

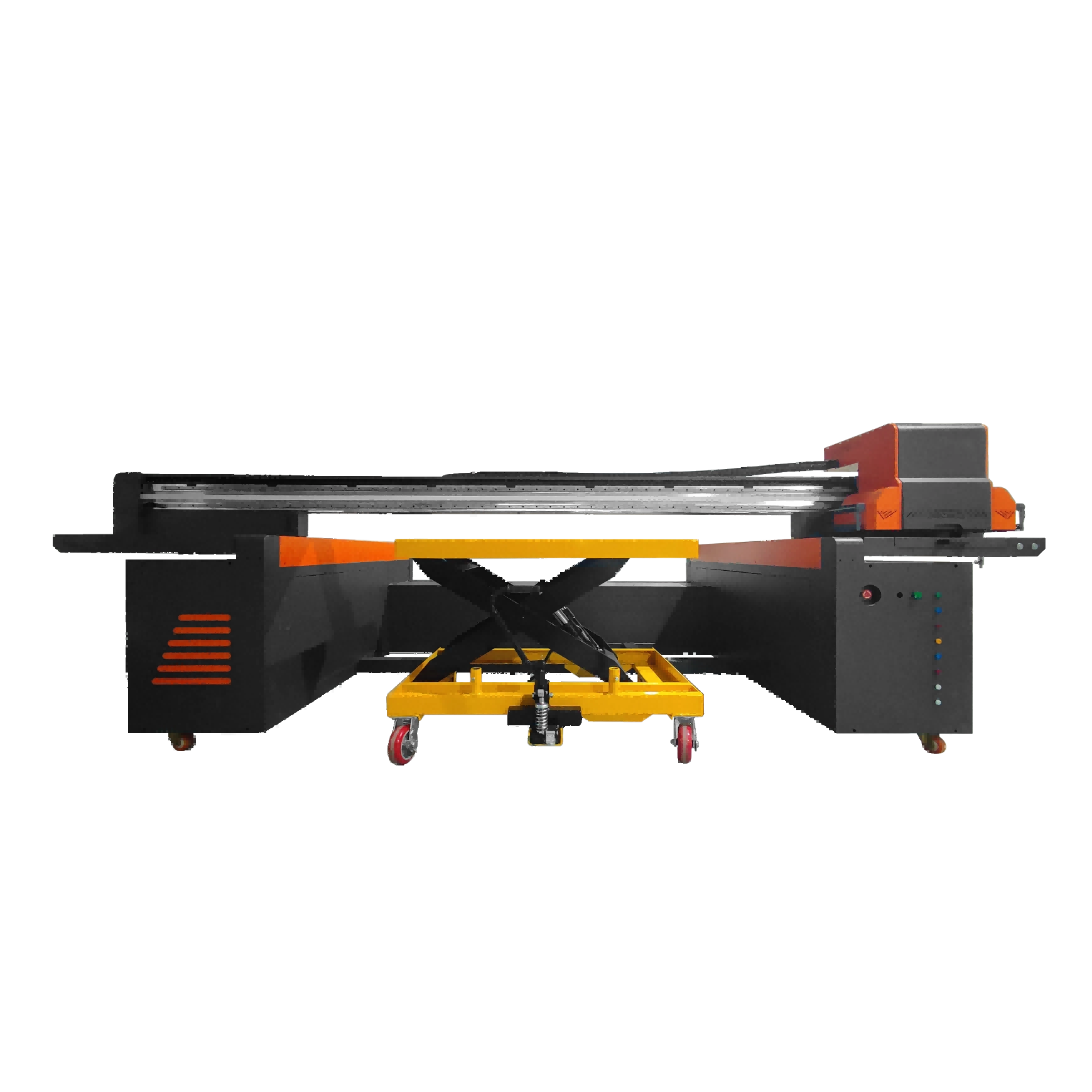

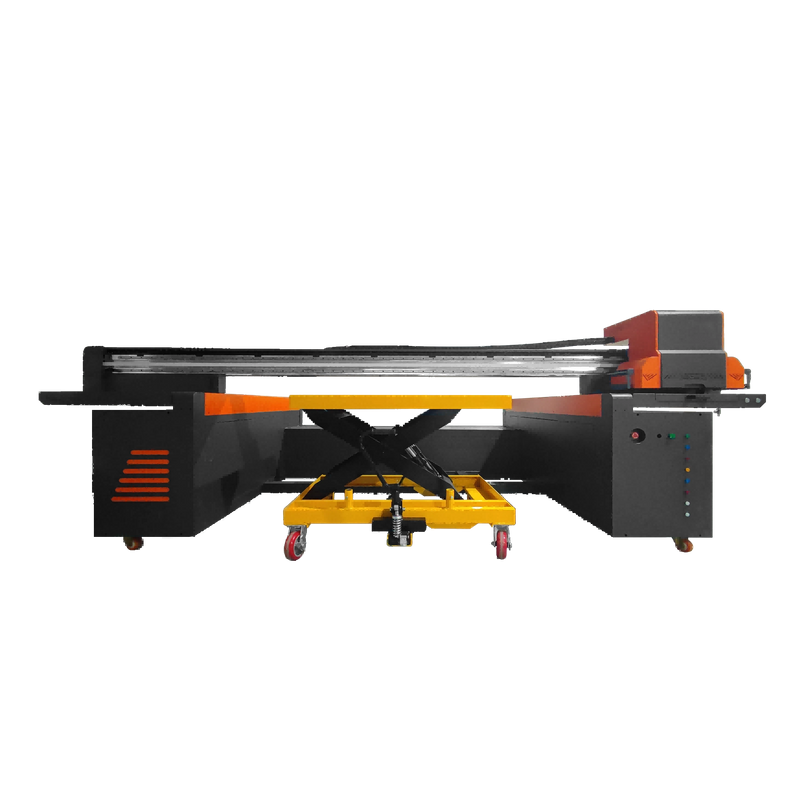

2013 UV Flatbed Printer
Printer Feature :
UV flatbed printers are digital inkjet devices that employ UV curing technology and can directly print patterns on various flat materials such as glass,metal,wood,and plastic.The working principle is that the UV ink is sprayed onto the material surface through the nozzle,and then the UV lamp is used to irradiate and quickly cure the ink,forming high-precision and vivid patterns.
UV flatbed printers have the characteristics of instant curing,environmental friendliness,durability,and easy operation. They are widely used in advertising,decoration,industrial manufacturing,and handicrafts,etc.They support small-batch and personalized customization and have become an important tool for efficient and flexible modern digital printing.
Product Characteristics :
Double layer filtration
Stable operation
Color precision
High precision sprinkler
Support customization
Poweroff endurance
Samples:
Printer parameter:
| Sprinkler type | EPSON |
| Sprinkler counting | Three heads ,(6 colors , 1 white and 1 varnish ) |
| Sprinkler accuracy | 1440x2880 DPI(MAX) |
| Print size | 2000x1300mm |
| Machine bed | Machining integrated bed |
| Machine beam | All aluminum high precision casting beam |
| Height measurement | Automatic height-measuring components for more accurate material thickness positioning |
| RIP software | PHOTOPRINT/MAINTOP |
| Connection mode | USB 2.0 3.0 High speed transmission |
| Print thickness | 1-200MM |
| Print color | CMYK+LC +LM+W + varnish |
| Ink type | Anti-blocking and eco-friendly UV ink |
| Weight | 1300 kg |
| Packaging | 4000 x 2200 x 1800 mm |
| Number of ink colors | 8 bottles, 1000ml per bottle (300ml) |
Printing speed | 2-4 m²/h |
