JCXstone-3F
JCXStone

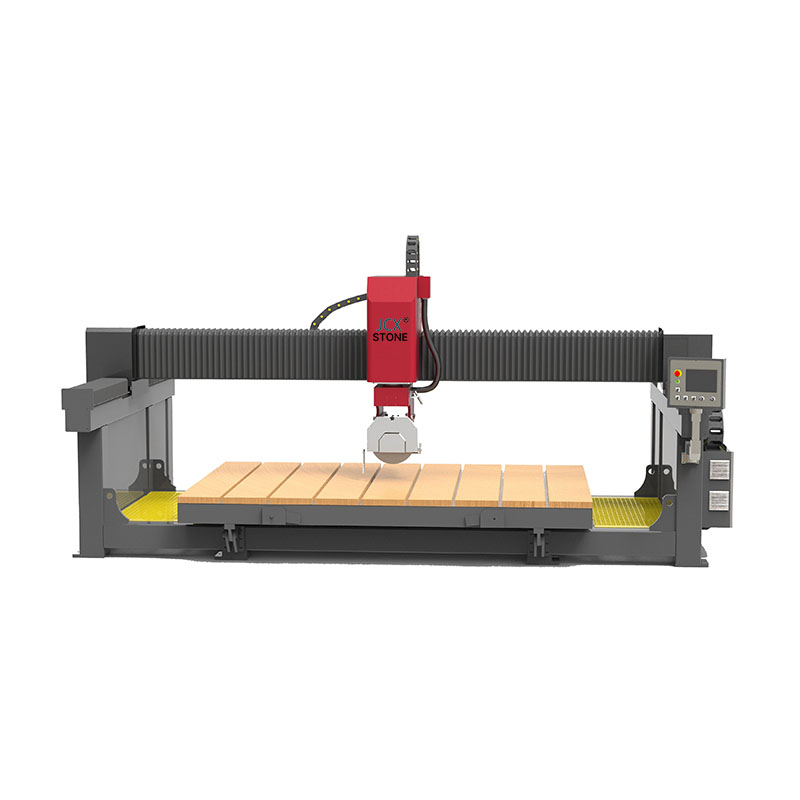

3 Axis Infrared Quartz Granite Marble CNC Milling And Cutting Bridge Saw Machine
Product Parameters :
3-axis integrated bridge cutting machine | Model: 3220 |
X&Y&Z Working Area | X3200mm-Y2000mm-Z260mm |
/X&Y Transmission | 1.5M gear |
Z Transmission | TBI ball screw |
Rail | Taiwan TIWIN 30 square rail |
Max idling speed | 20M |
Max engraving speed | 10M |
Spindle Power | 11KW |
Spindle speed | 0-2980R/min |
Inverter | 11KW |
Motor | 1.5KW servo |
Driver | 1.5KW servo |
Control system | PLC |
Working voltage | 380V/50HZ |
Collector | ER32 |
Application software | JD.Wentai .Artcam,type 3,etc |
Cable | CNC special cable. |
Electrical appliances | Zhengtai |
Limit switch | Japan OMRON |
Z axis assembly | Thickened steel plate components |
Outside size | 3000MM*5000MM |
Sample :
Equipment Accuracy Guarantee :
The material of this machine is heavy, the bed is solid, and the bed is durable and not deformed. The whole machine is processed by a large-scale five-sided milling machine for the guide rail surface and drilling. The key parts of the machine are imported high-quality accessories, which have high processing precision, large production capacity and a higher degree of automation. The imported high-precision ball screw is used for transmission, and the wear resistance of the screw is more durable after high heat treatment, and the service life of the whole machine is prolonged.
Using a new type of towline, the signal line and the power line are separated according to the specifications, which can better defend against signal interference. The cable adopts imported high-flexible shielded wire, which has a longer service life.
The platform is turned 85 degrees, and the loading and unloading of large heavy plates is convenient and labor-saving.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
