JCXstone-3013-S
JCXStone

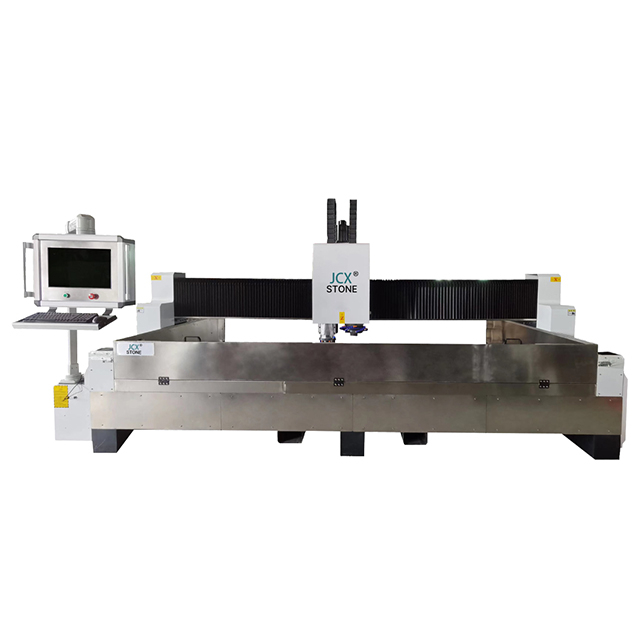

3013 CNC Countertop Processing Center
Product Parameters :
X axis working size | 3000mm (Transverse) |
Y axis working size | 1300mm (Longitudinal) |
Bed body | Seamless welding, aging treatment, five – side milling machine processing |
Surface treatment | High temperature spray to prevent paint peeling |
Cutting thickness | Within 50mm |
Control system | Customized processing center system |
Transmission mode | High wear-resisting widened square rail + imported high precision ball screw |
Driving mode | Imported high precision 1.3KW Ori servo (automatic alarm) |
Control Method | Industrial control panel (cutting and grinding together) |
Motor Power | 5.5KW (opening holes + edge grinding) |
Table | Hard PVC (waterproof and wear-resistant) |
Filling method | Automatic oiling lubrication (long life of track slider) |
Toolbox | Grinding wheel, digging tools, tools clip/handle, suction cup, vacuum generator |
Packaging | Plastic package |
Machine dimensions | 4800* 2100*2500mm (L*W*H) |
Machine weight | 3500kg |

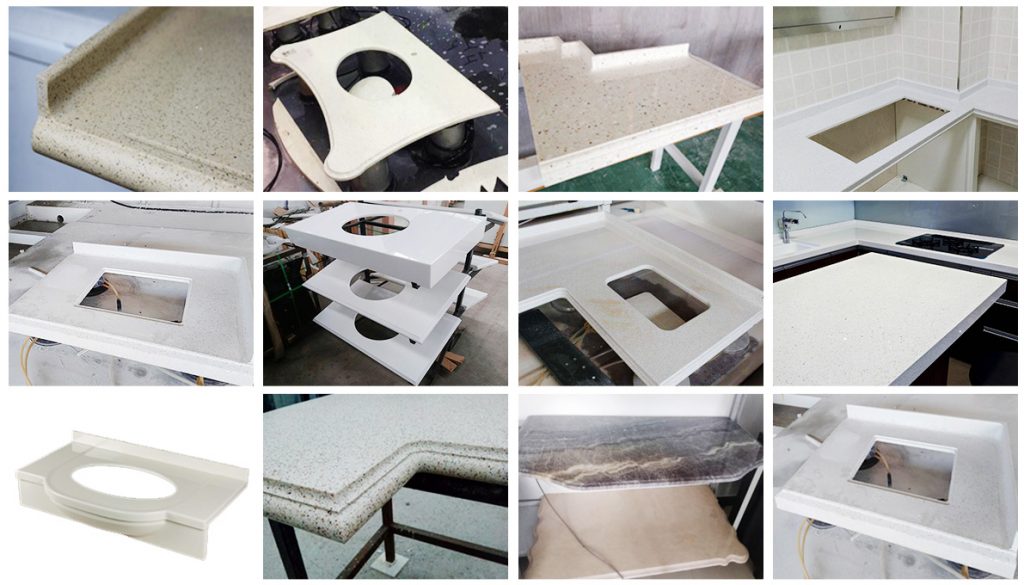

Samples :
Machine Feature :
This machine is made of heavy materials, compact bed and durable bed without deformation. The whole machine processes the guide rail surface and drilling through a large five face milling machine. The key parts of the machine choose imported excellent accessories, with high machining precision, large production capacity and higher degree of automation. Imported high-precision ball screw transmission is adopted, and the lead screw is highly heat-treated.
The wear resistance is more durable and the service life of the whole machine is prolonged. This equipment is equipped with high-end, servo control, fast and stable operation.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
