JCXstone-3015
JCXStone

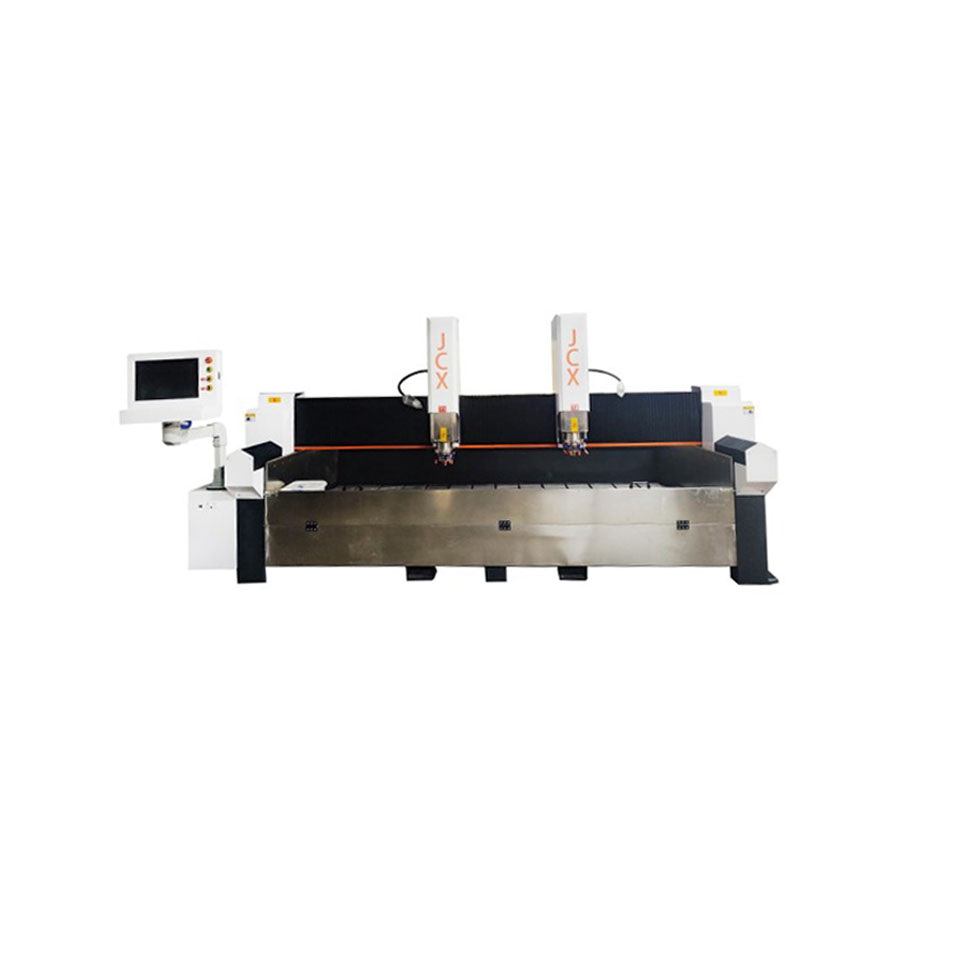

3015 High Speed CNC Carving Machine
Product Parameters :
Model | JCXstone-1825 |
X/Y/Z axis working area | 3000mm*1500mm*400mm |
Table Size | 2000*3000mm |
Max traveling speed | 15m/min |
Max working speed | 10m/min |
Max feed height | 500mm |
Resolution | 0.005mm |
Reposition accuracy | 0.05mm |
Spindle /tool cooling | 100W-220V cooling pump (circulation water) |
Spindle power | 7.5KW |
Spindle Speed | 0-24000rmp/min |
Working Mode | Stepper |
Driving system | Ball Screw |
Control system | NC system |
Operating System | Windows98/2000/XP |
Carving command | G code |
Machine Power | 7KW |
Voltage | AC380V/50Hz |
Machine Weight | 2000kgs |
Machine size | 2300*3500*1900mm |
Samples :
Product Instructions :
The first step is to use photo editing software to beautify the photos provided by customers
The second step is to use Agat software to export the picture to G code format
The third step is to store the converted pictures in the SD card
The fourth step, insert the SD card into the control system, and control the machine to engrave
Product Advantages :
The three shafts are exclusively protected by full dust and water-proof process to ensure that the guide rail, gear and rack are free from dust and waste cutting, and the service life of accessories is extended.
The lathe bed is made of high-quality steel structure and welded seamlessly. The gantry is processed by the machining center after being reinforced by the large tube to ensure the gantry has sufficient stability in the processing process.
High precision rack and pinion drive, equipped with high-power 7.5kW water-cooled spindle, large cutting force, high efficiency, suitable for long-time engraving.
The cable of the whole machine adopts CNC special high flexible anti-interference cable
lt adopts Taiwan linear square guide rail, double row and four row sliding blocks. with large bearing capacity, stable operation, no shaking and vibration, high precision long service life and accurate cutting.
This equipment is CNC digital control, with the function of power-offmemory, with the function ofknife breaking and carving after power failure.
Automatic oil lubrication svstem is adopted to maintain the slide guide rail bv itself and the whole machine is free of maintenance.

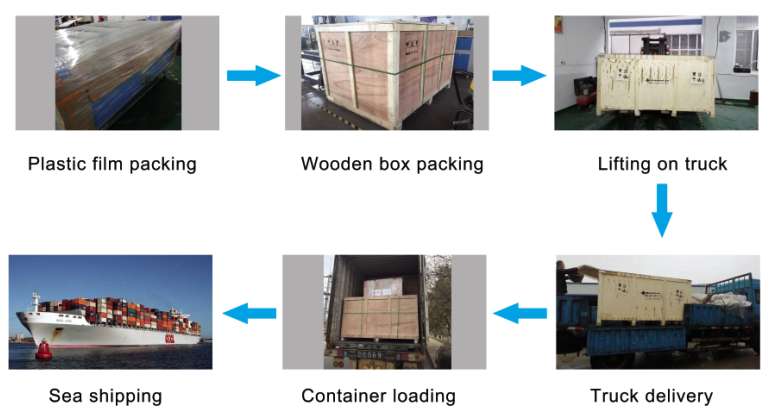

Packaging Details :
Film+ PE stretchy film.
Package is much more strong and environmental protection. We can also make package according to your requests.
Frequently Asked Questions By Customers :
Depth/thickness of CNC engraving machine engraving/cutting? – up to 20cm
Are CNC engraving machines suitable for marble works? –Yes
How to get the engraving knife matched with the engraving machine? ——We have a variety of matching engraving tools, you can buy from us.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
