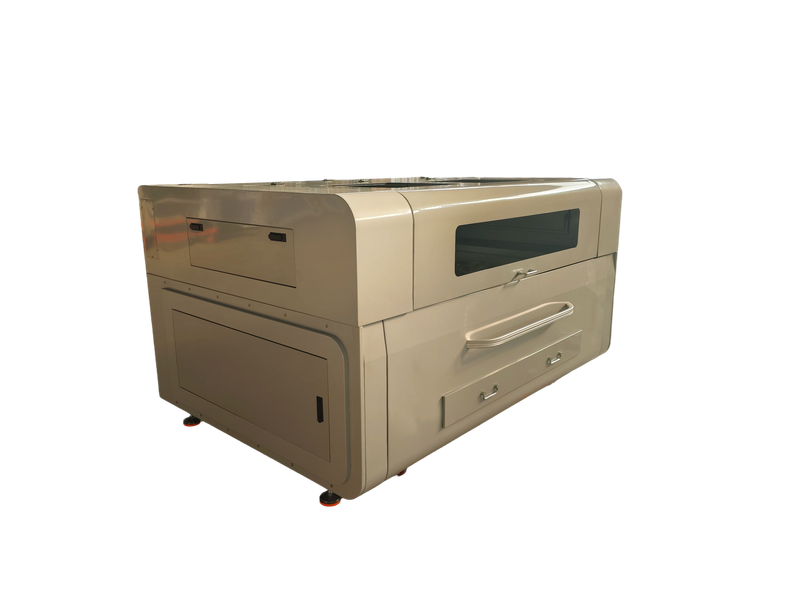

6 In 1 Laser Machine

The 6-in-1 laser machine is suitable for a variety of materials, with a wide range of applications for both metallic and non-metallic materials. Equipped with a high-end Ruida system, this machine can improve carving efficiency, with higher carving accuracy and faster carving speed. And it is easy to operate and has strong durability, making it an ideal choice for carving or cutting operations.

Availability:

Quantity:



Inquiry Add to Basket PDF Export

Model:
JCXLaser-1390
Brand:
JCX

Product Description

6 In 1 Laser Machine

Product Parameters :

Model	JCXstone-1390
Laser type	Fiber laser + CO2 laser
Fiber Laser Power	MAX 2000W
Co2 Laser Tube	Reci/EFR 180w
Function	Welding/Cutting/Cleaning/Marking (Metal)Cutting/Engraving (non-metal)
Working Area	1300*900mm
Max Move Speed	700mm/s
Repeatability	+-0.05mm
Control System	Relfar controller + Ruida controller

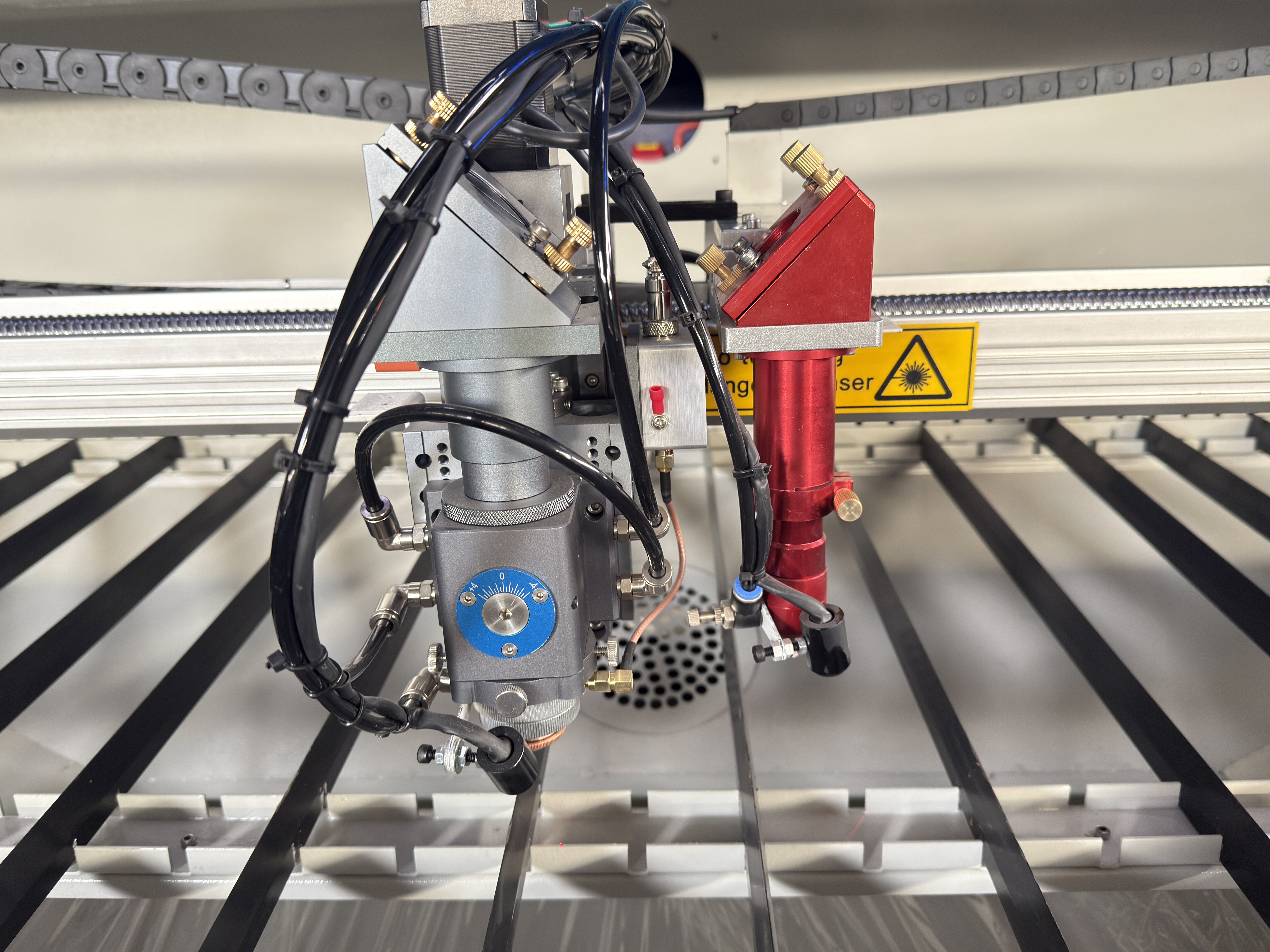

Laser Head	Relfar laser head + CO2 laser head
Guide Rail	Taiwan linear guide rail 25mm
Transmission	Rack pinion transmission
Drive	Servo drive motor
Electronic Components	French Schneider electrical components
Cooling Method	Air Cooling for fiber laser + Water cooling for CO2 laser
Power Requirements	220V, 1 phase, 50/60hz

Machine Feature :

c4a122bfe6b00c73521d9875b717afaa e13d0e8f61011383b300fe3e0da3c4ad 87366eec14e37a7127e9dec1f17c3013
