JCX-AEB
JCX
Automatic Edge Banding Machine
Machine Introduction :

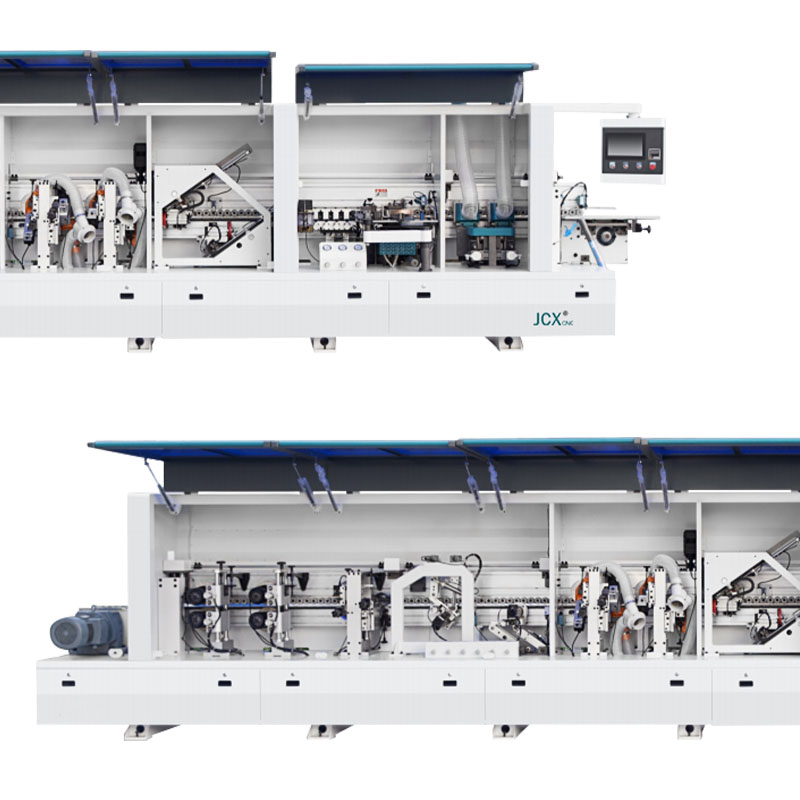

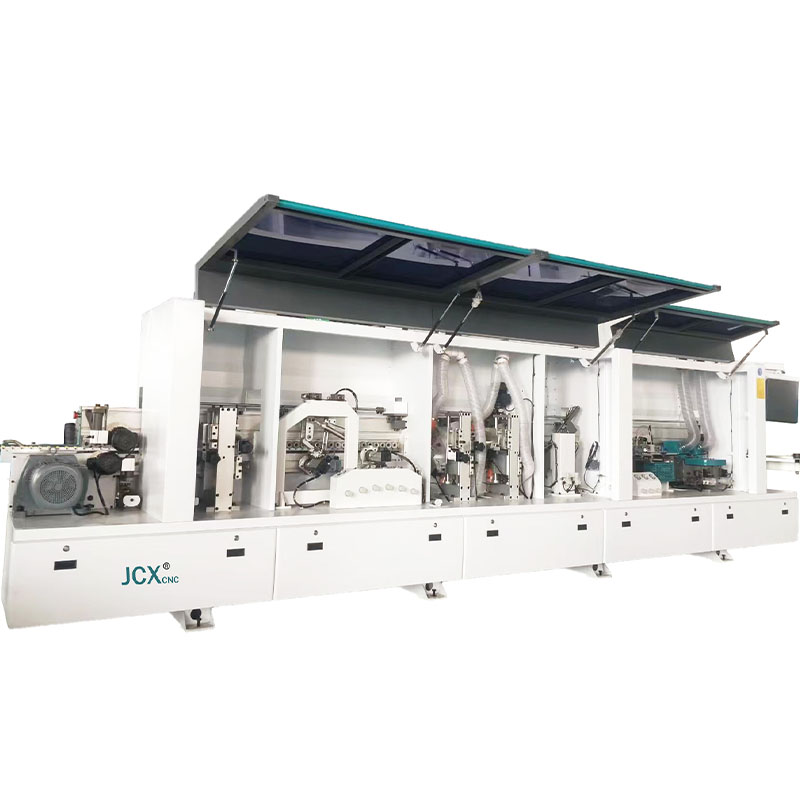

(1)Machine photos
(2)Function description
Pre-milling , Automatic tape feeding, Gluing, Pressing, End cutting, Rough trim, Fine trim, Corner-rounding, Scraping, Buffing
(3) Scope of application
Suitable for plate furniture, custom furniture, cupboard wardrobe, office furniture, solid wood furniture, tables ,chairs,doors and windows,wood products， decoration industry, etc
(4)Machinable boards
Suitable for Medium Density Fiberboard, eco-board, multi-layer board, creative board, straight solid wood board, aluminum honeycomb board and other boards
Technical Parameter :
1 |
Precision | Workpiece width | ≥ 60mm |
Workpiece thickness | 10-60mm | ||
Workpiece length | ≥ 120mm | ||
2 | Thickness of edge band | 0.4-3mm | |
3 | Working air pressure | 6 bar | |
4 | Total power | 15.48KW | |
5 | Feeding speed | 15—23m/min | |
6 | Electric lifting | 0.37KW | |
7 | Pre-milling power | 2.2kW x2 | |
8 | End cutting power | 0.37kW x2 | |
9 | Power of rough cutters | 0.75kW x2 | |
10 | Power of fine cutters | 0.75kW x2 | |
11 | Power of angle grinders | 0.37kW x2 | |
12 | Conveyor power | 4kW | |
13 | Total power | 16.5kW | |
| 14 | Machine dimensions | 7100*970* 1700mm | |
| 15 | Package dimensions | 7300x970x1900mm | |
| 16 | Weight | 2450 kgs | |
Machine Accessories Brands :
Item | Configuration model |
Brand | Logo |
1 | Conveyor motors | Tengwan/Tuosheng |  |
2 | Rubber pot high temperature bearings | Germany/Humanism |  |
3 | Flush head / other cylinders | AirTAC/ E^SUN |   |
4 | Keep track ofthe cylinder | AirTAC |  |
5 | Proximity switches | Autonics |  |
6 |
PLC | INVT/INOVANCE | invtx Cs |
7 | Frequency converters | INVT/INOVANCE | invtx Cs |
8 | Touch screen | INVT/Kunluntongtai |   |
9 | Contactors | French Schneider |  |
10 |
Solenoid valve |
AirTAC/ E^SUN |   |
11 | Plastic pan sealing ring | Taiwan / SOG |  |
| 12 | Oil-water separator | E^SUN | |
| 13 | High- speed motors | Germany /UFC |  |
| 14 | Temperature control meter | South Korea / Autonic |  |
| 15 | Travel switch | American / Honeywell |  |
Machine Details :
| Image display | Function | Detailed description |
 | Touch screen : INVT Kunluntongtai， | The industry's leading touch screen in the woodworking industry, with fast response and no false touches |
 | Pre-miling | The diamond pre-milling cutter mills away the corrugation marks and excess burrs of the spiral trimmer on the board, making the edge of the board fit more closely with the edge strip, making the bonding stronger and more beautiful. The pneumatically controlled pre-milling seat is more precise and easier to operate. |
 | Six-wheel pressing, one large, five small and six-wheel pressing, rubber welting | The six wheels are more precise than the four wheels. The fit is firmly, the thick and thin veneer can be easily handled, the cylinder controls the opening and closing of the rubber door, and the glue amount is uniform. Double glue pot can use different colors of glue. No need to clean the glue pot frequently improves efficiency |
 | Centralized lubrication system | Automatic regular oil injection maintenance, multi- channel oil pipes are connected to the key moving parts , all- round smoothing, reducing machine wear and prolonging the service life of the machine |
 | Lower the glue pot | Melt the gule and apply it to the contact surface of the board, so that the edge banding strip is pasted to the board |
 | Front and Back end cutting together | The single rails are aligned together, and the excess edge banding at both ends of the board is cut off, and the air pressure is more stable. |
 | Rough trimming | Click on the screen to automatically control the cylinder. The six-edged R knife trims off the excess edge banding to form a rounded corner, making the trimming more beautiful. |
 | Fine trimming | Click on the screen to automatically control the cylinder. The six-edged R knife trims off the excess edge banding to form a rounded corner, making the trimming more beautiful. |
 | Scraping | Pneumatic entrainment- controlled scraper does not need to be adjusted separately, and the screen is in place with just one click. The super carbide R knife smoothes the fine lines of the edge banding strip and makes it smooth. |
 | Buffing | Polish the plate after edge sealing to make the upper and lower edges of the edge band smoother and more beautiful. |
 | Tracking | Precisely milled the four corners of the bonded edge strips into R-arc shapes to increase the beauty of the corners of the workpiece. |
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Automatic Edge Banding Machine
Machine Introduction :

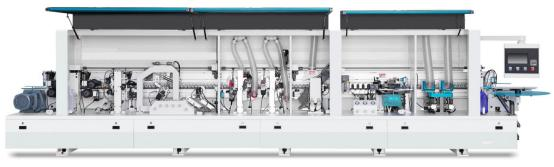

(1)Machine photos
(2)Function description
Pre-milling , Automatic tape feeding, Gluing, Pressing, End cutting, Rough trim, Fine trim, Corner-rounding, Scraping, Buffing
(3) Scope of application
Suitable for plate furniture, custom furniture, cupboard wardrobe, office furniture, solid wood furniture, tables ,chairs,doors and windows,wood products， decoration industry, etc
(4)Machinable boards
Suitable for Medium Density Fiberboard, eco-board, multi-layer board, creative board, straight solid wood board, aluminum honeycomb board and other boards
Technical Parameter :
1 |
Precision | Workpiece width | ≥ 60mm |
Workpiece thickness | 10-60mm | ||
Workpiece length | ≥ 120mm | ||
2 | Thickness of edge band | 0.4-3mm | |
3 | Working air pressure | 6 bar | |
4 | Total power | 15.48KW | |
5 | Feeding speed | 15—23m/min | |
6 | Electric lifting | 0.37KW | |
7 | Pre-milling power | 2.2kW x2 | |
8 | End cutting power | 0.37kW x2 | |
9 | Power of rough cutters | 0.75kW x2 | |
10 | Power of fine cutters | 0.75kW x2 | |
11 | Power of angle grinders | 0.37kW x2 | |
12 | Conveyor power | 4kW | |
13 | Total power | 16.5kW | |
| 14 | Machine dimensions | 7100*970* 1700mm | |
| 15 | Package dimensions | 7300x970x1900mm | |
| 16 | Weight | 2450 kgs | |
Machine Accessories Brands :
Item | Configuration model |
Brand | Logo |
1 | Conveyor motors | Tengwan/Tuosheng | |
2 | Rubber pot high temperature bearings | Germany/Humanism | |
3 | Flush head / other cylinders | AirTAC/ E^SUN | |
4 | Keep track ofthe cylinder | AirTAC | |
5 | Proximity switches | Autonics | |
6 |
PLC | INVT/INOVANCE | invtx Cs |
7 | Frequency converters | INVT/INOVANCE | invtx Cs |
8 | Touch screen | INVT/Kunluntongtai | |
9 | Contactors | French Schneider | |
10 |
Solenoid valve |
AirTAC/ E^SUN | |
11 | Plastic pan sealing ring | Taiwan / SOG | |
| 12 | Oil-water separator | E^SUN | |
| 13 | High- speed motors | Germany /UFC | |
| 14 | Temperature control meter | South Korea / Autonic | |
| 15 | Travel switch | American / Honeywell | |
Machine Details :
| Image display | Function | Detailed description |
| Touch screen : INVT Kunluntongtai， | The industry's leading touch screen in the woodworking industry, with fast response and no false touches |
| Pre-miling | The diamond pre-milling cutter mills away the corrugation marks and excess burrs of the spiral trimmer on the board, making the edge of the board fit more closely with the edge strip, making the bonding stronger and more beautiful. The pneumatically controlled pre-milling seat is more precise and easier to operate. |
| Six-wheel pressing, one large, five small and six-wheel pressing, rubber welting | The six wheels are more precise than the four wheels. The fit is firmly, the thick and thin veneer can be easily handled, the cylinder controls the opening and closing of the rubber door, and the glue amount is uniform. Double glue pot can use different colors of glue. No need to clean the glue pot frequently improves efficiency |
| Centralized lubrication system | Automatic regular oil injection maintenance, multi- channel oil pipes are connected to the key moving parts , all- round smoothing, reducing machine wear and prolonging the service life of the machine |
| Lower the glue pot | Melt the gule and apply it to the contact surface of the board, so that the edge banding strip is pasted to the board |
| Front and Back end cutting together | The single rails are aligned together, and the excess edge banding at both ends of the board is cut off, and the air pressure is more stable. |
| Rough trimming | Click on the screen to automatically control the cylinder. The six-edged R knife trims off the excess edge banding to form a rounded corner, making the trimming more beautiful. |
| Fine trimming | Click on the screen to automatically control the cylinder. The six-edged R knife trims off the excess edge banding to form a rounded corner, making the trimming more beautiful. |
| Scraping | Pneumatic entrainment- controlled scraper does not need to be adjusted separately, and the screen is in place with just one click. The super carbide R knife smoothes the fine lines of the edge banding strip and makes it smooth. |
| Buffing | Polish the plate after edge sealing to make the upper and lower edges of the edge band smoother and more beautiful. |
| Tracking | Precisely milled the four corners of the bonded edge strips into R-arc shapes to increase the beauty of the corners of the workpiece. |
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
