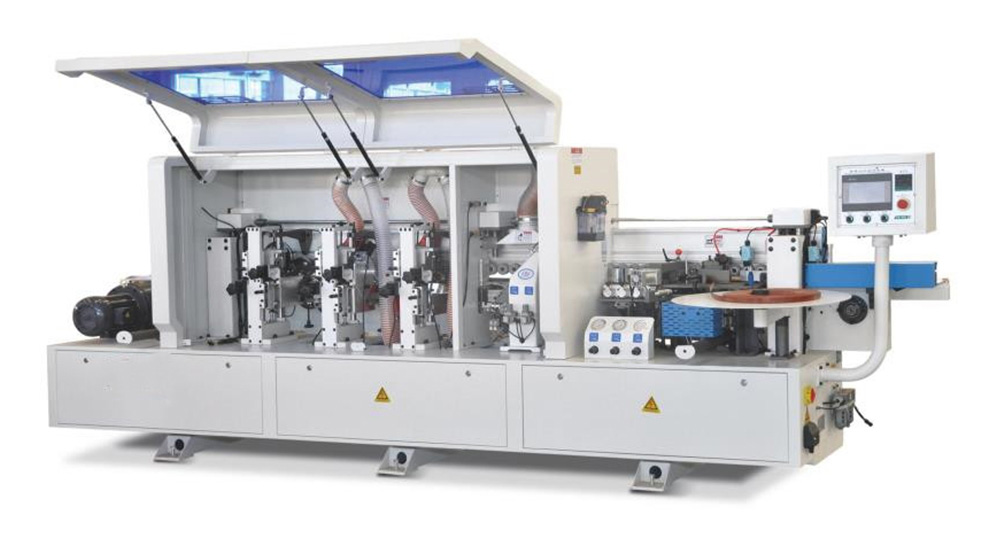

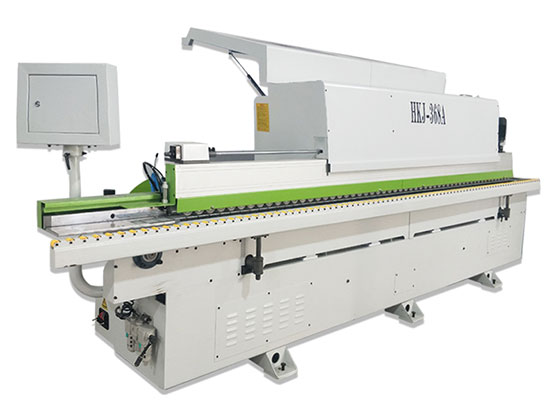

Edge Banding Machine
Machine advantage:
1. the pre-milling device USES a double milling cutter to cut the plate saw processing caused by the ripple marks, line again modification, in order to achieve more edge sealing fruit.
2. The gluing and sealing device makes the gluing of the edge sealing plate and the edge sealing material even through different mechanisms, so as to ensure the adhesive force is more firm.
3. the head device through the precision linear guide rail movement, the use of automatic tracking by the mold and high frequency electrode rapid cutting and other mechanisms, to ensure that the cutting surface is flat and smooth.
4. The coarse and fine trimming device is used to repair the excess edge sealing materials in the upper and lower parts of the edge sealing strip of the processed plate. The structure such as automatic tracking by mold and high-frequency high speed motor are adopted to ensure the level and smoothness of the upper and lower parts of the edge trimming plate.
5. The edge scraping device is used for the ripple marks caused by the cutting process of trimming non-linear movement, so as to make the upper and lower parts of sapwood more smooth and tidy.
6. copy tracking up and down rounded corners device can make the end face of the board more smooth and beautiful.
7. polishing device is used to clean the processed plate with cotton polishing wheel, through polishing to make the sealing side end face more smooth. 8. Grooving device is used for direct grooving of side plate and bottom plate, which can reduce the working procedure of cutting plate saw and make it more convenient and fast.
Technical parameter:
Feeding speed | JCX-465D |
Edge Thickness | 0.4-3mm |
Panel Thickness | 10-60mm |
Panel Length | Min.120 |
Panel Width | Min.60 |
Work pressure | 0.6Mps |
Min panel Size | 150(L)*150(w)mm |
Motor Power | 12.5kw |
PS: All the working area and specifications can be customized according to your requests.
Product Description:
Edge banding machine in woodworking is used in banding edge of desks,carbinet,wardrobe and stright line furniture.The edge bander can be PVC,melamine,wood based works and so on,with powerful fuctions as edge feeding,sticking,material cutting,front-back trimming.
Application Area:
Edge banding machine in woodworking is used in banding edge of desks,carbinet,wardrobe and stright line furniture.
Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.

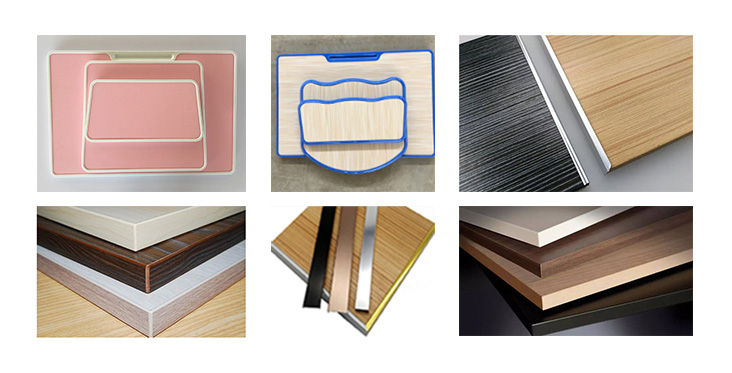

Applicable material:
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
