JCXstone-5Z
JCXStone

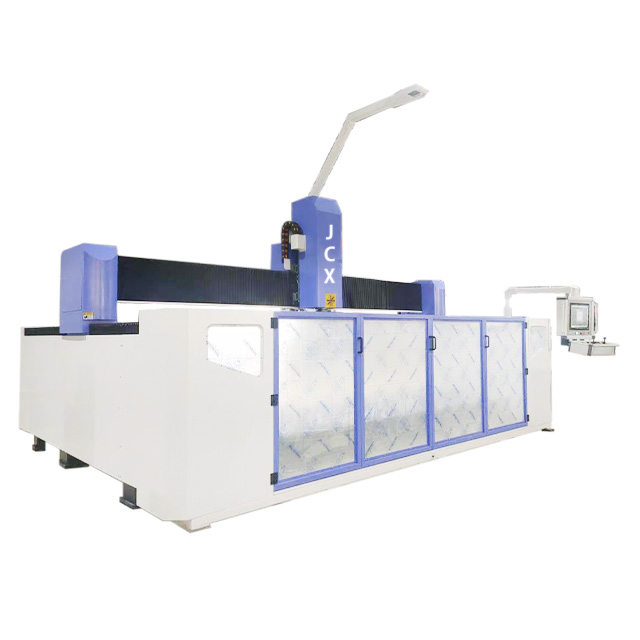

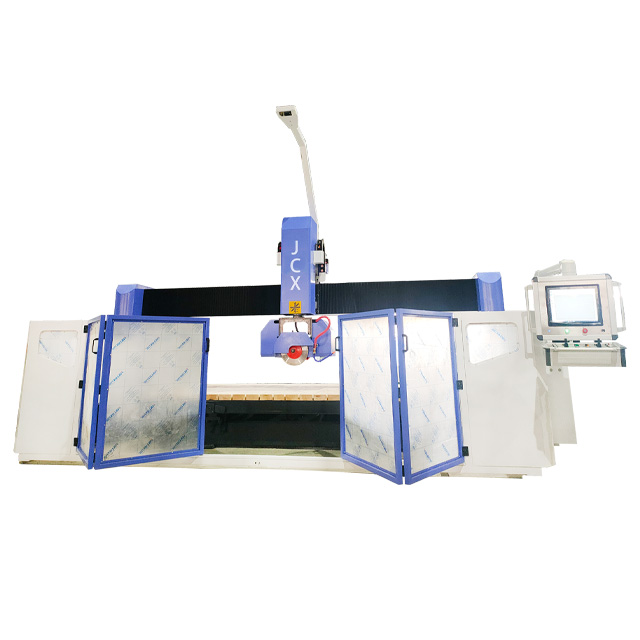

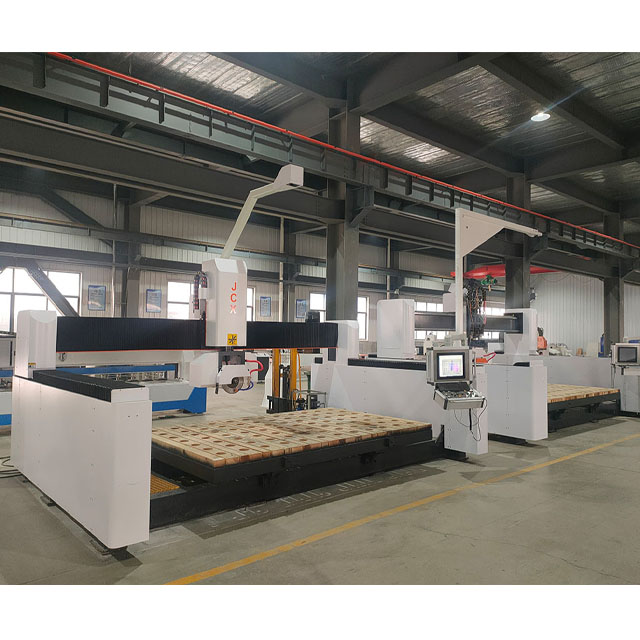

Five Axis Intelligent Bridge Cutting Saw

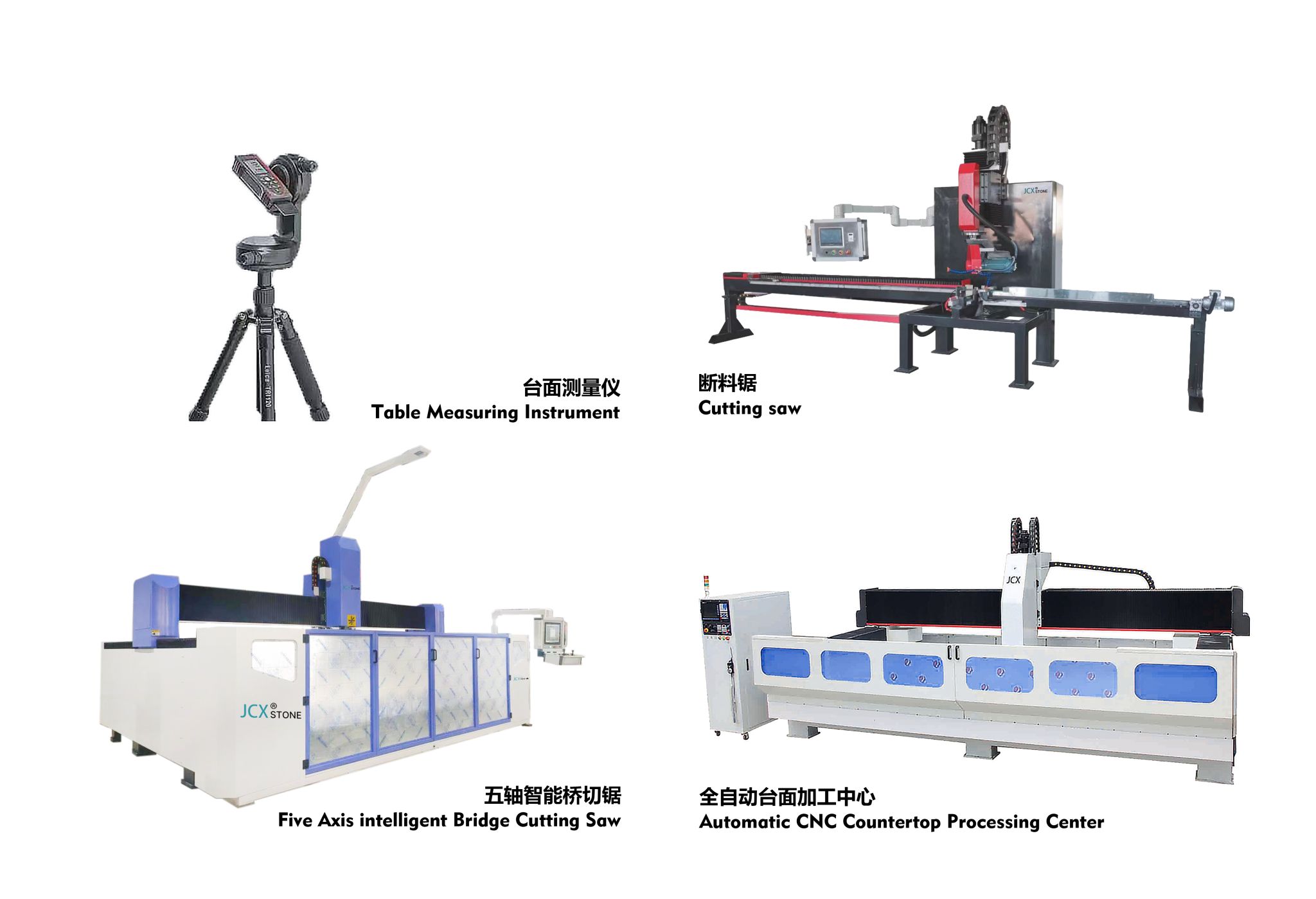

Dust-free Installation Production Line :
Product Parameters :
X axis working size | 3200mm ( Transverse) |
Y axis working size | 2000mm ( Longitudinal) |
Saw blade diameter | 350-400mm |
Bed body | Seamless welding, aging treatment, five – side milling machine processing |
Surface treatment | High temperature spray to prevent paint loss |
Cutting thickness | Within 50mm |
Control system | Intelligent five-axis system |
Head rotation Angle | 0-360 ° open shadow angle with milling cutter (optional) |
Camera system | HD wide-angle camera |
Angle of head tilt | Any Angle from 0 to 90 degrees |

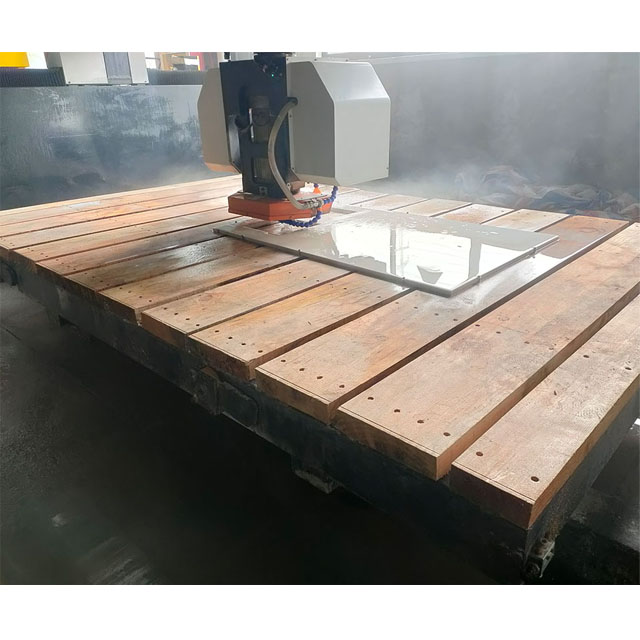

Suction plate | Intelligent typesetting intelligent sucker moving plate |
Cutting machine | High speed motor 11KW kw Rated speed 3000/6000 (optional) |
Cutting speed | 0-3000mm/min according to stone thickness |
Transmission mode | High wear-resisting widened square rail 30 (35 optional) + imported high precision ball screw Y-axis Double track (optional) |
Driving mode | High precision Wei Chuang 1.5KW servo control (Yaskawa 1.3KW optional)/Angle tilt Ori servo motor |
Control Method | Intelligent five axis five linkage professional control system |
Table | Board + universal wheel (optional), table move 85 degrees |
Program method | Modify data directly in the operating system |
Oil Filling method | Automatic oil filling lubrication |

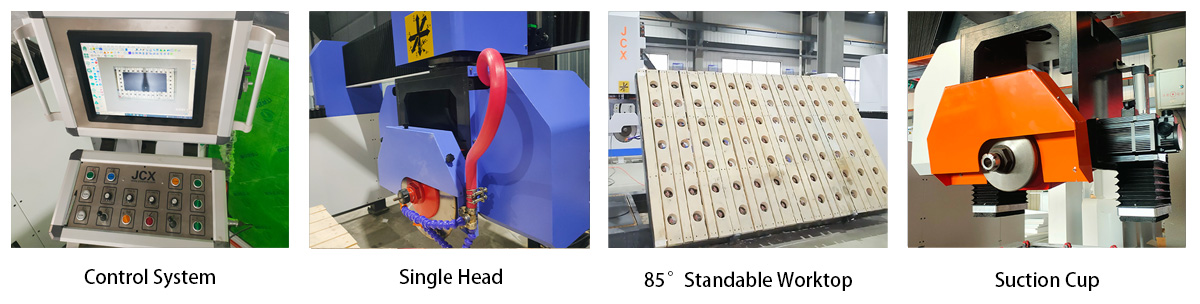

Accessories :

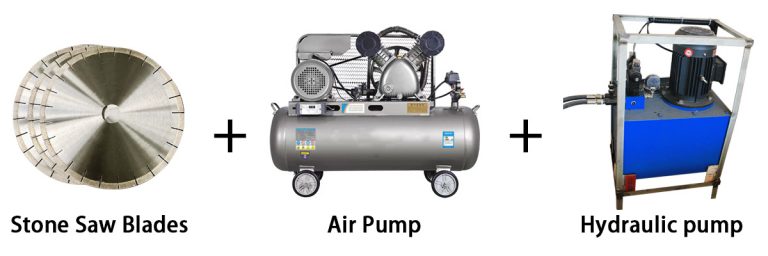

Complimentary Accessories :

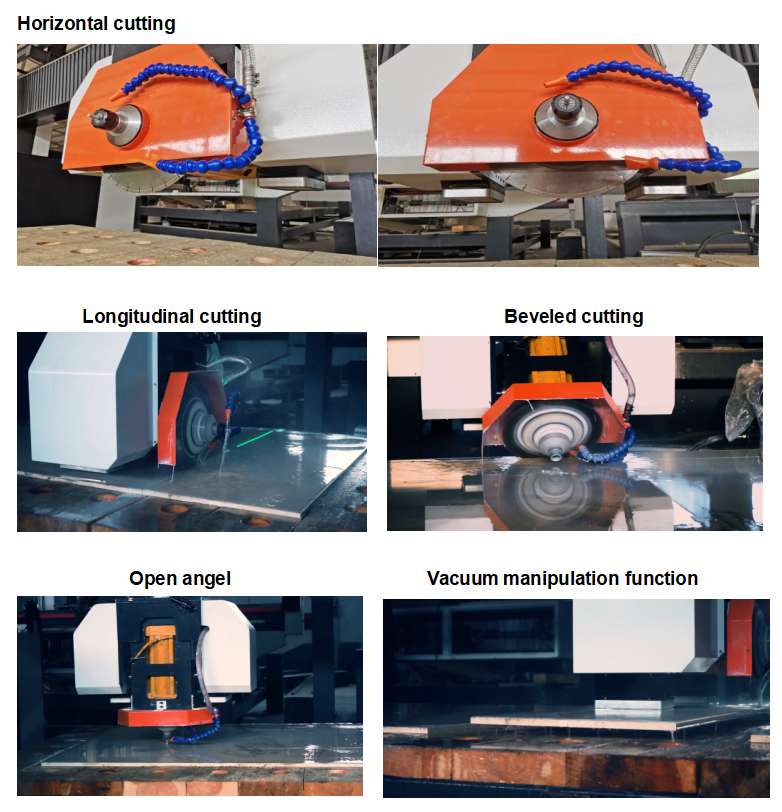

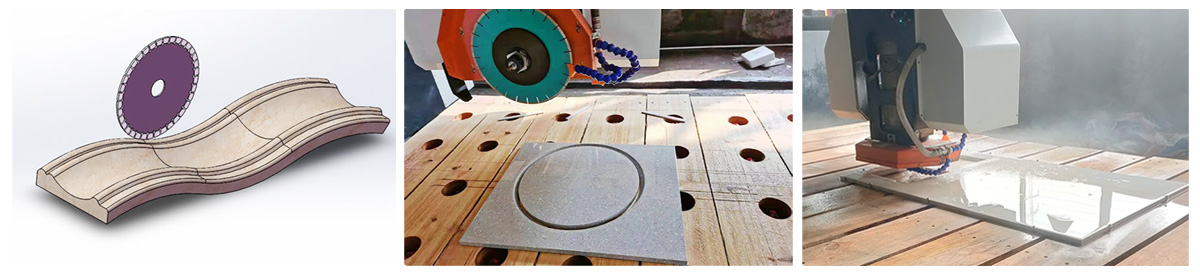

Samples :
Machine Feature :
This machine is made of heavy materials, compact bed and durable bed without deformation. The whole machine processes the guide rail surface and drilling through a large five face milling machine. The key parts of the machine choose imported excellent accessories, with high machining precision, large production capacity and higher degree of automation. Imported high-precision ball screw transmission is adopted, and the lead screw is highly heat-treated.
The wear resistance is more durable and the service life of the whole machine is prolonged. This equipment is equipped with high-end, servo control, fast and stable operation.
OEM/ODM Customized :
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
