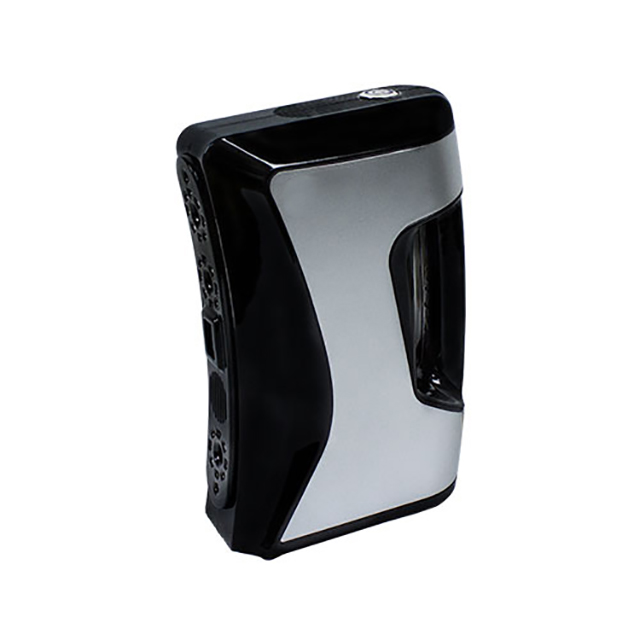

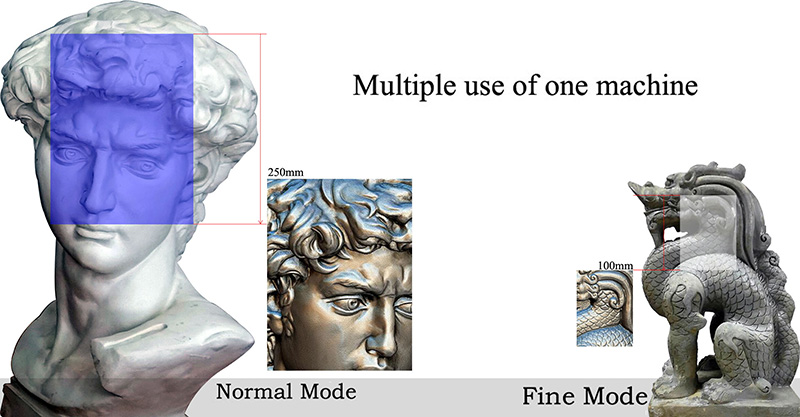

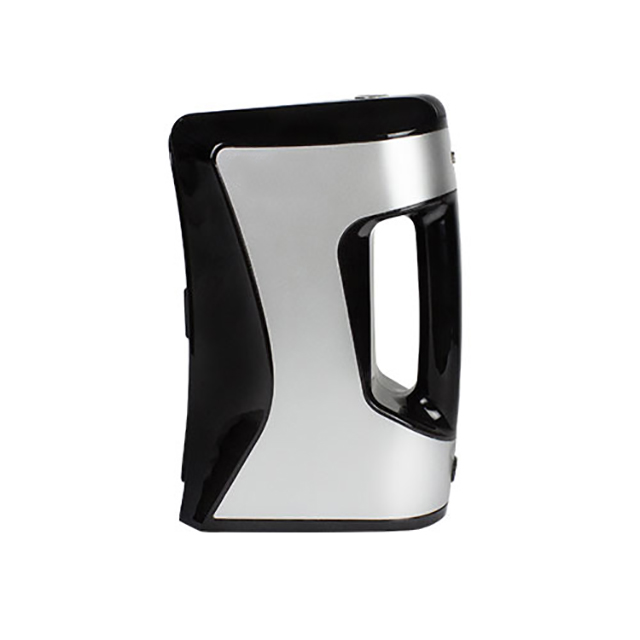

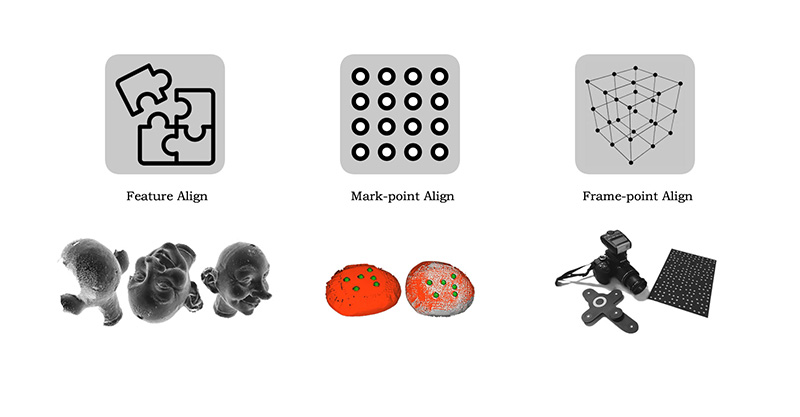

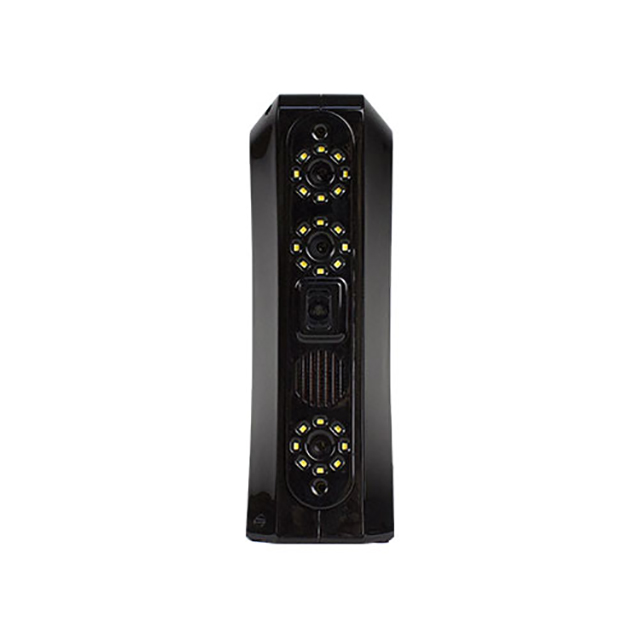

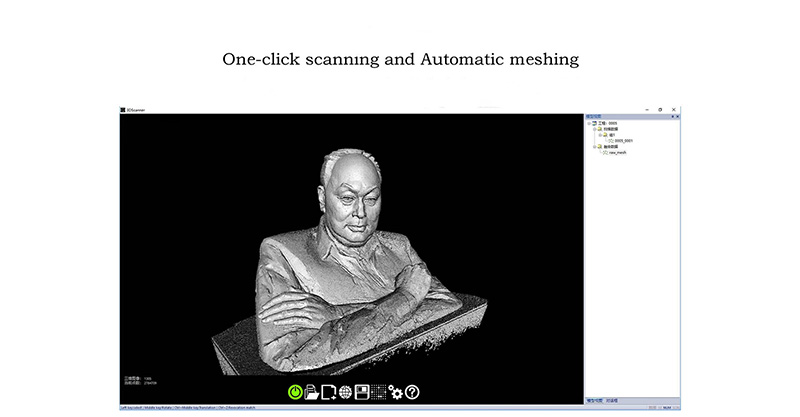

JCX3DScanner is a highly integrated and easy-to-operate handheld 3D scanning system designed based on real-time 3D reconstruction application scenarios. It can achieve 0.03 seconds high-speed scanning and one-key automatic global registration of point clouds, denoising fusion, lossless meshing, and compensation Hole, curvature sampling generates STL standard three-dimensional format. The system is developed based on high-speed structured light phase grating 3D reconstruction technology, which not only has the convenience of hand-held but also can maintain the sub-pixel high-precision characteristics of phase structured light. The system supports features, mark points and frame three splicing methods that support normal and fine scanning at the same time. Mode (100mm/250mm), which can scan both fine sculptures and small and medium-sized molds. In addition, the system can be extended to support the photogrammetric system, so as to adapt to the application of 3D scanning scenes with larger scope and higher precision requirements, and widely serve in the application scenes of 3D reconstruction in various industries.
Product Description:
Specification:
Standard mode
Fine mode
Scope
250mm
100mm
Dot pitch
0.25mm
0.12mm
Precision
0.1mm
0.04mm
Adaptation
400~1500mm
40~400mm
Sensor
ONSEMI 1310000pixel 600fps
Raster
TI 1280*800 Led White light
Lens
12mm Standard optical measuring lens
Communication Interface
USB 2.0
power supply
12V 5A/100~240V 60HZ/1.5A
Scan speed
0.03s Non-contact structured smooth scanning
Scanning method
Non-contact structured smooth scanning
Working distance
490mm
Depth of field
490mm±30%
weight
0.9kg
Size
240*165*55mm
Splicing mode
Marking point splicing / feature splicing
Global registration
Support
Temperature compensation
Support
Auxiliary positioning
Double laser spot
Output format
AC/ASC/OBJ/STL/PLY
Extended support
Can provide third-party API development interface, extended support for optical tracking photogrammetry robotic arm, etc.
Certification
CE FCC WEEE CNAS National laboratory third-party certification
For the products sold by the manufacturer, the original factory engineers are provided with relevant technical guidance and training services for installation, commissioning and use.
Application:
FAQ:
1. who are we? We are based in Beijing, China, start from 2010,sell to Domestic Market(32.00%),Southeast Asia(13.00%),Africa(9.00%),Mid East(8.00%),Oceania(8.00%),Eastern Asia(8.00%),South America(8.00%),North America(3.00%),Western Europe(3.00%),Eastern Europe(3.00%),Northern Europe(2.00%),Central America(1.00%),South Asia(1.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Cnc router,woodworking cnc router,stone cnc router,advertising cnc router,model cnc router
4. why should you buy from us not from other suppliers? We are one of a leading CNC router manufacturer about 10 years, link your ideas with our customized CNC routers to make your dream machine.Fine quality and precision,good performance.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
