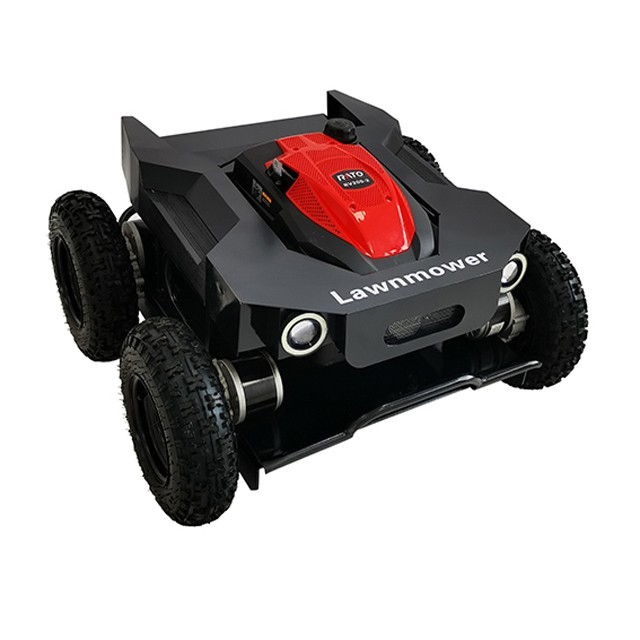

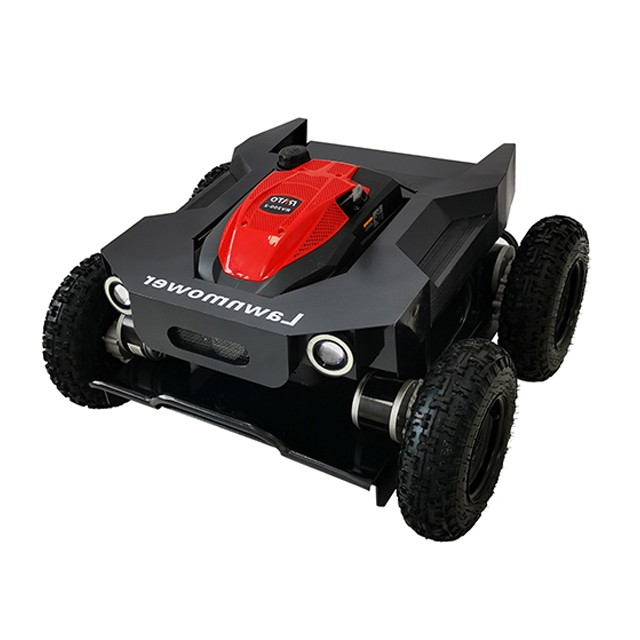

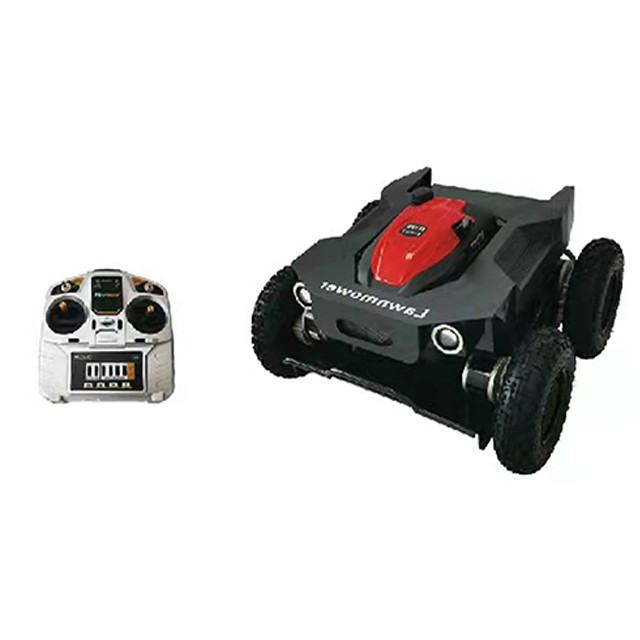

J1 Lawn Mowers

Oil-electric hybrid

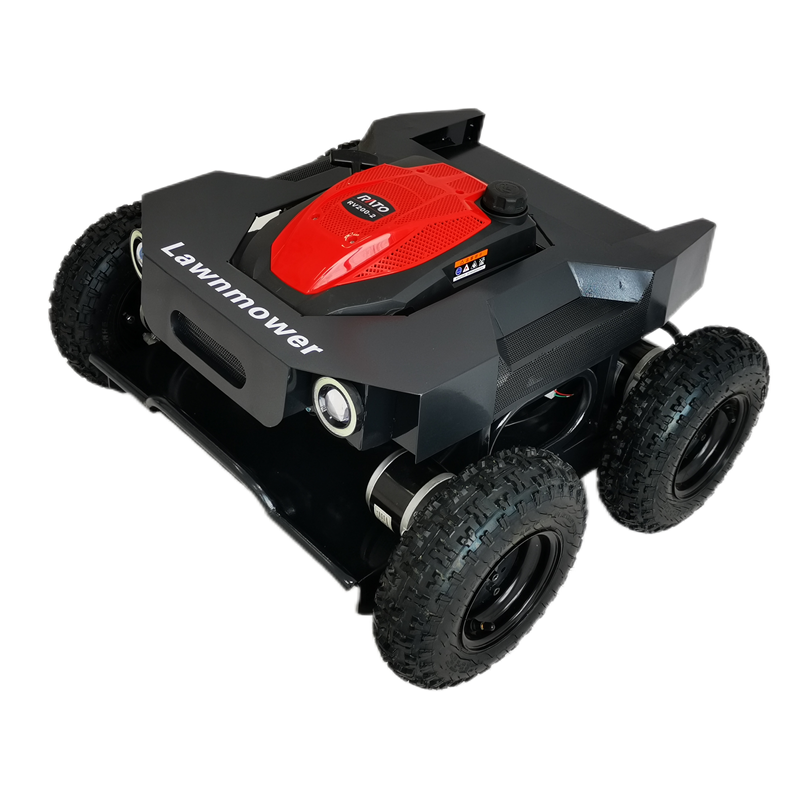

Remote Controlled Robot Lawn mower
Iron Man's exterior design, smooth and beautiful lines.It uses a lawn mower to weed the orchard, and the weeds are cut to cover the orchard, which can be used as an organic fertilizer for the orchard, which will not pollute the environment and increase soil fertility.
Availability:
Quantity:

PDF Export

  • J1

  • JCX


J1 Lawn Mowers


  Machine Advantage:

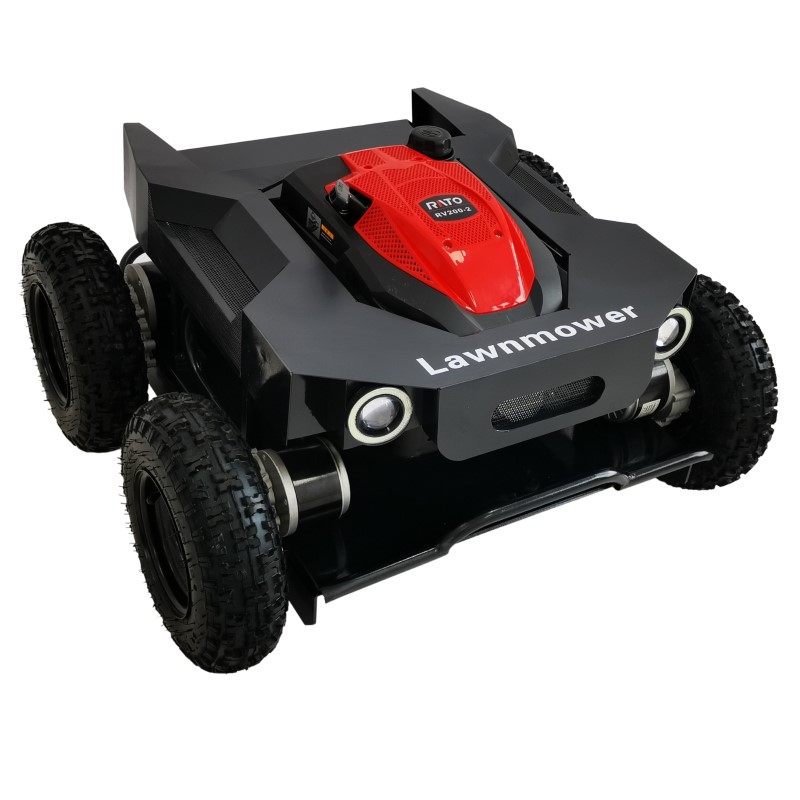

Jcx-j1 Lawn Mowers-1




Remote Controlled Robot Lawn mower

Iron Man's exterior design, smooth and beautiful lines.It uses a lawn mower to weed the orchard, and the weeds are cut to cover the orchard, which can be used as an organic fertilizer for the orchard, which will not pollute the environment and increase soil fertility.




Jcx-j1 Lawn Mowers-2



Oil-electric hybrid:

The walking of the motor is powered by the battery, and the mowing blade is driven by the gasoline engine. At the same time, the gasoline engine drives the generator to generate electricity to charge the battery.Therefore, if you just walk and don't mow the grass, the battery to supply power. If mow the grass, must turn on the gasoline engine, and the gasoline engine charges the battery at the same time.

Jcx-j1 Lawn Mowers-3



Oil-electric separation:

The walking of the motor is powered by the battery, and the mowing blade is driven by the gasoline engine. The battery and the engine is separate, the engine cannot charge the battery.Therefore, if you just walk and don't mow the grass, the battery to supply power. If mow the grass, must turn on the gasoline engine.




Jcx-j1 Lawn Mowers-4

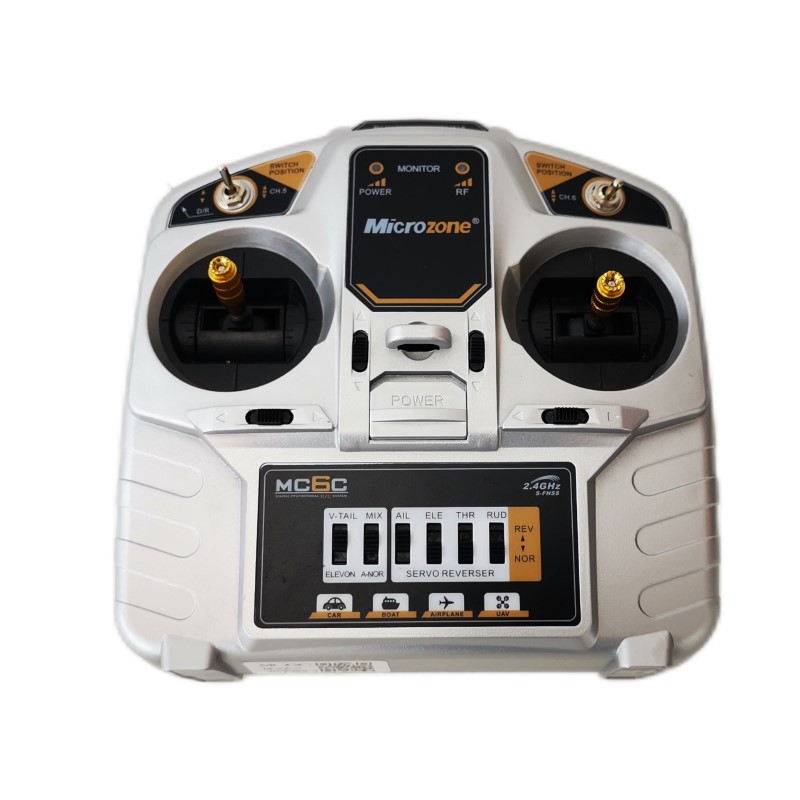

Remote control

Remote control handle,easy to operate

Jcx-j1 Lawn Mowers-5

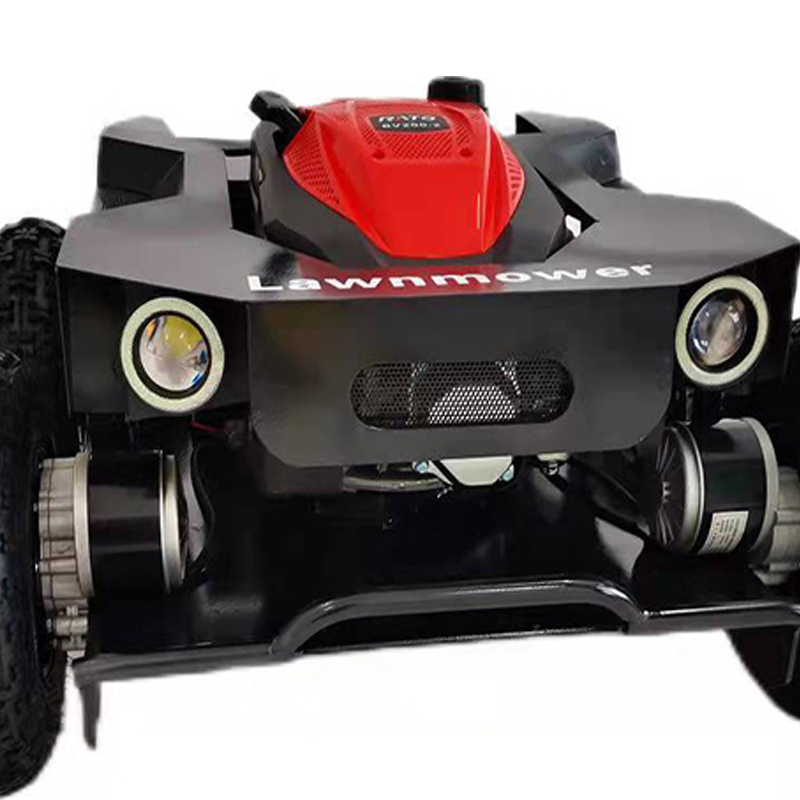

Lighting Design

LED light for night work.

Jcx-j1 Lawn Mowers-6

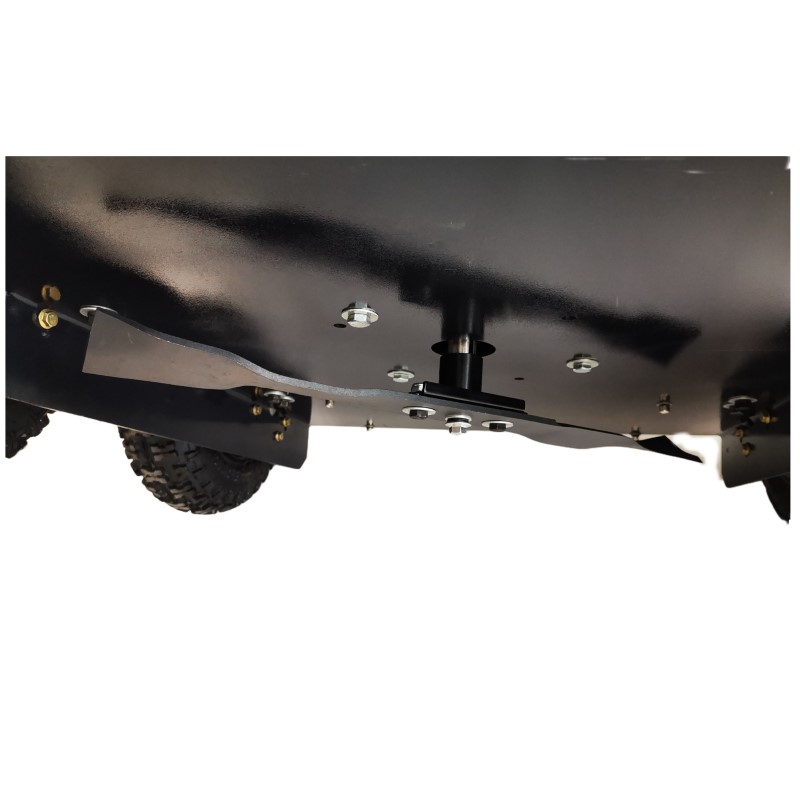

Cutter

Manganese steel blade,easy to cut


Jcx-j1 Lawn Mowers-7

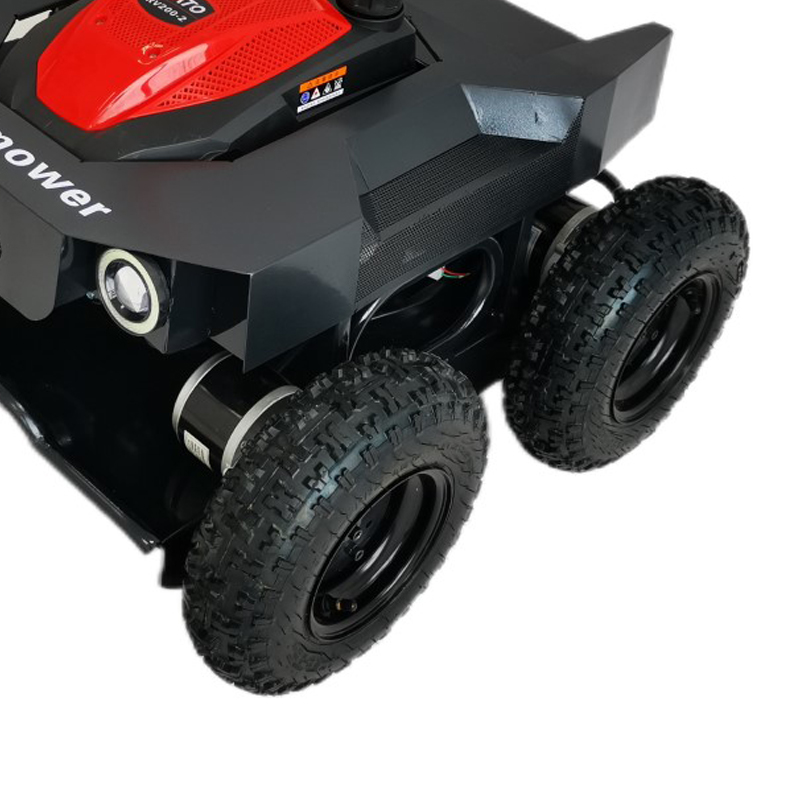

Four wheel drive

Anti-skid tires, Four wheel drive,Differential steering,uphill and downhill like flat ground

Jcx-j1 Lawn Mowers-8

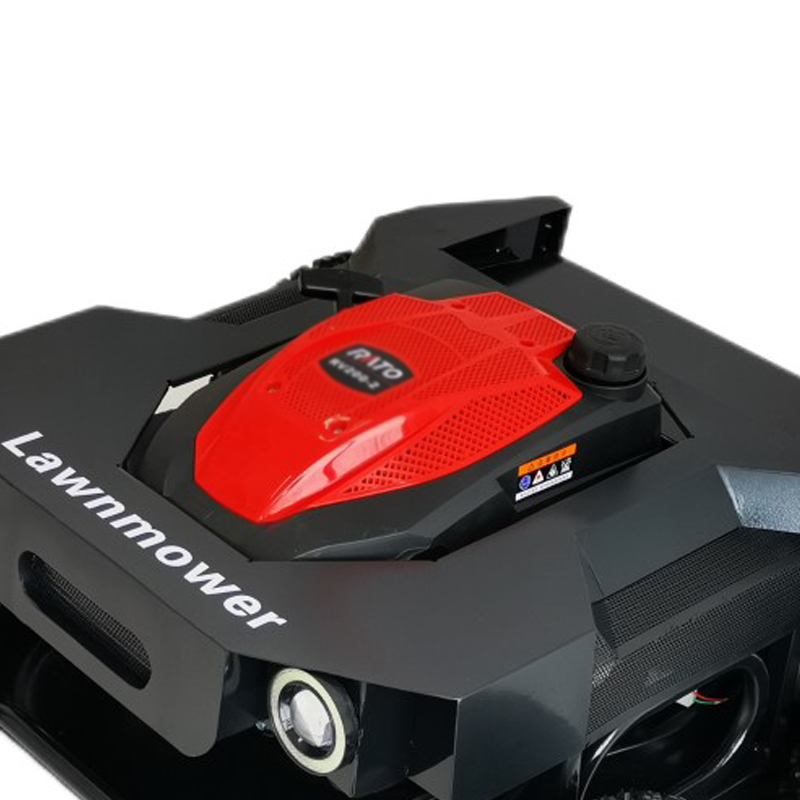

Hybrid power supply

Single cylinder engine, Fuel tank capacity is 1.5L.Work continuously for 3-5 hours

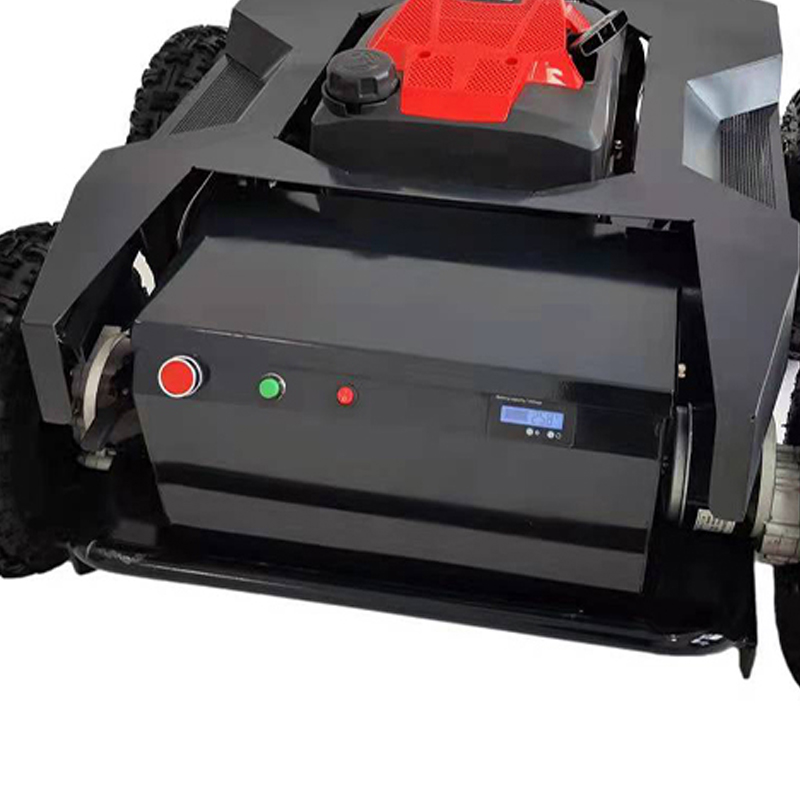

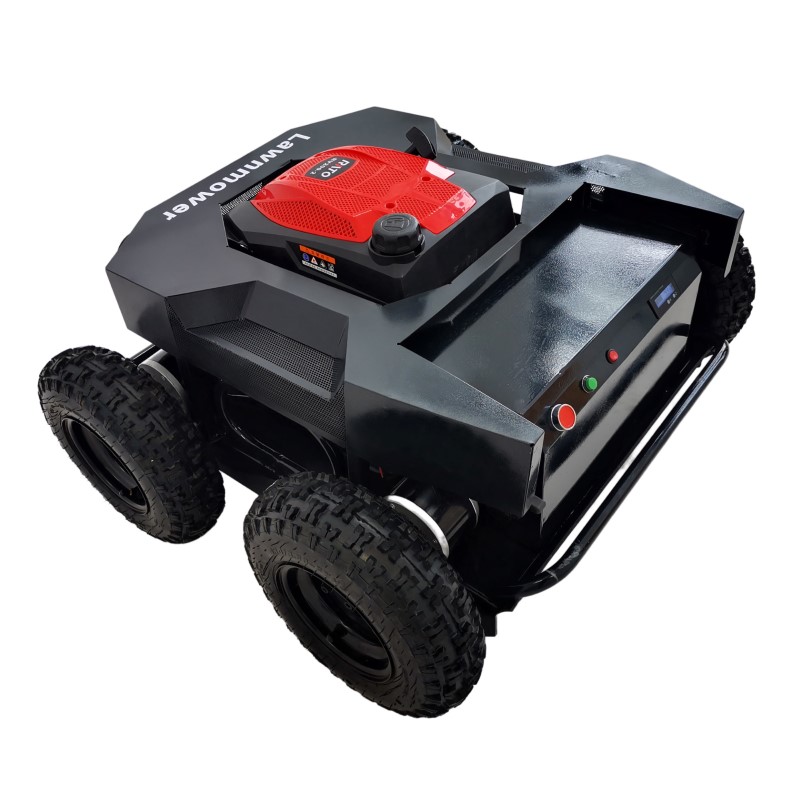

Jcx-j1 Lawn Mowers-9One key start up

One-key start, convenient and worry-free



  Specification:


Name
Robotic Lawnmower
Model
QKLM200
Vehicle size
800*810*445mm
Engine type
Single cylinder,4-S(OHV)
Net power
4.2kw/3600rpm
Battery Parameters
24v/40Ah
Motor parameters
24v/250w*4
Driving mode
Four wheel drive
Steering mode
Differential steering
Stubber height
50mm
Mowing range
520mm
Remote control distance
200-1000mm/Optional
Endurance time
3-5h
Vehicle weight
45kg
Start mode
A key to start
Tank capacity
1.5l


  Application:


Jcx-j1 Lawn Mowers-application

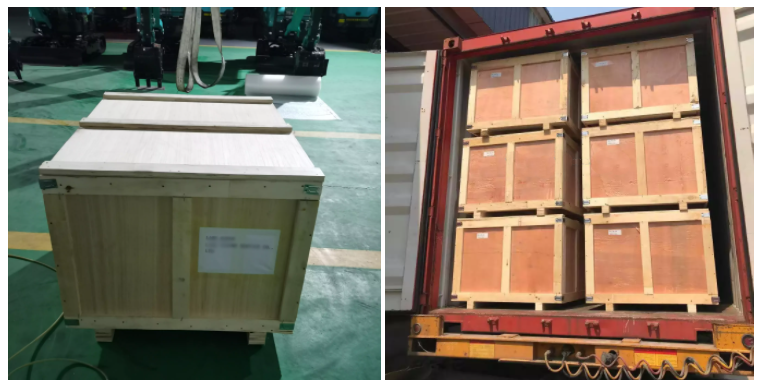

  Packing & Delivery:


Jcx-j1 Lawn Mowers-Package


  Other Products:

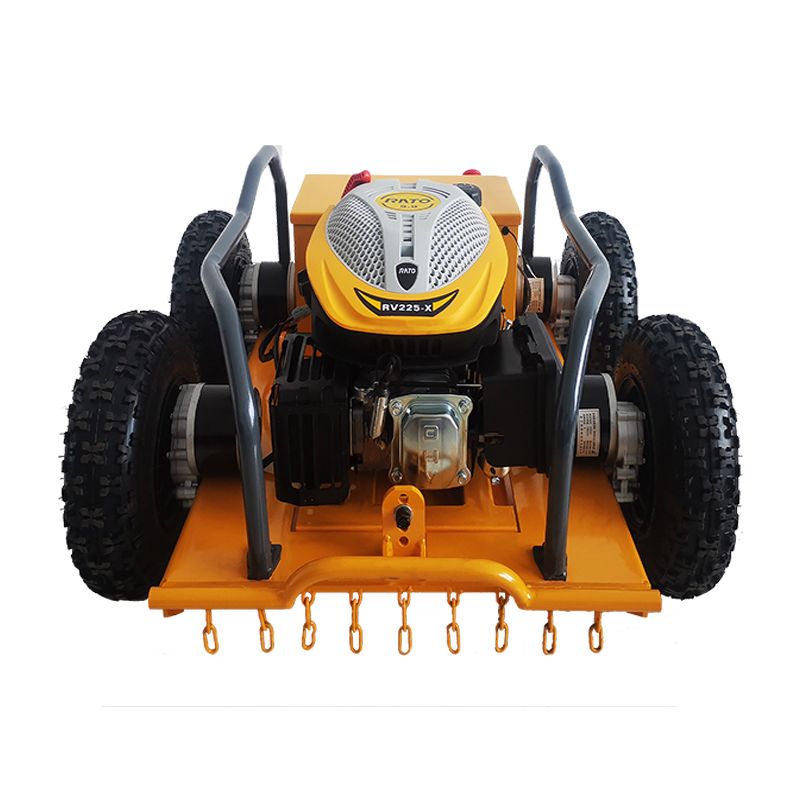

J2 Lawn Mowers_1

J2 Lawn Mowers

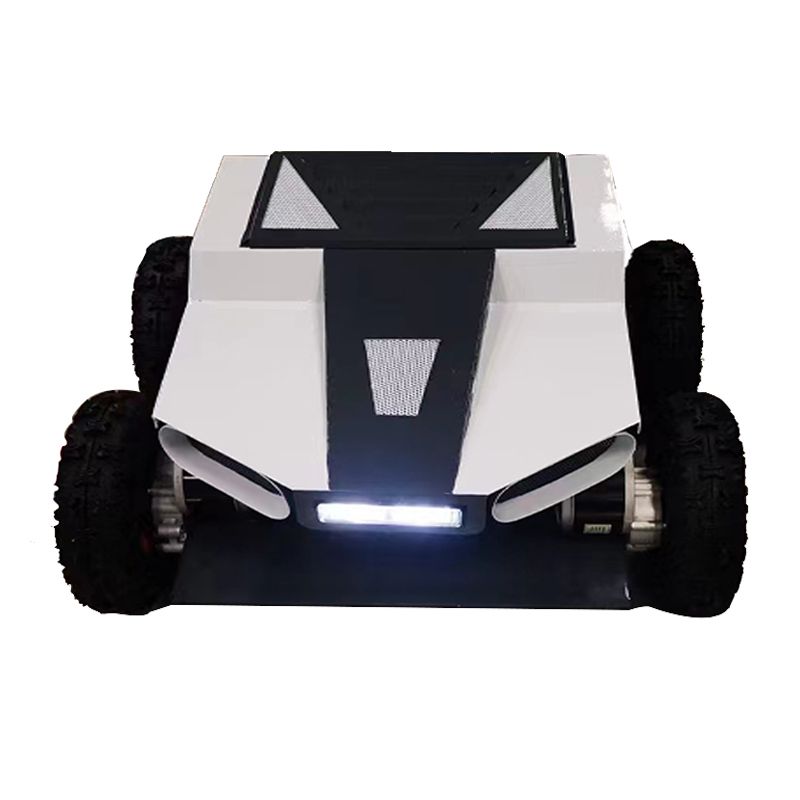

J3 Lawn Mowers

J3 Lawn Mowers

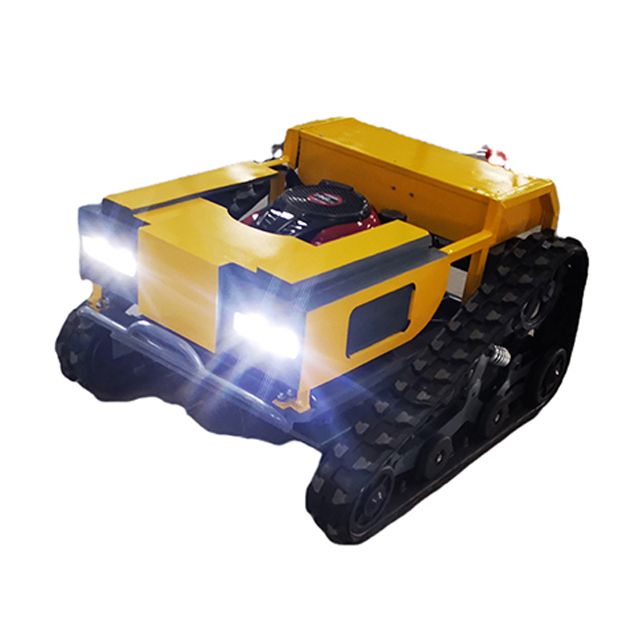

J4 Lawn Mowers_1
