JCXstone-4020
JCXstone

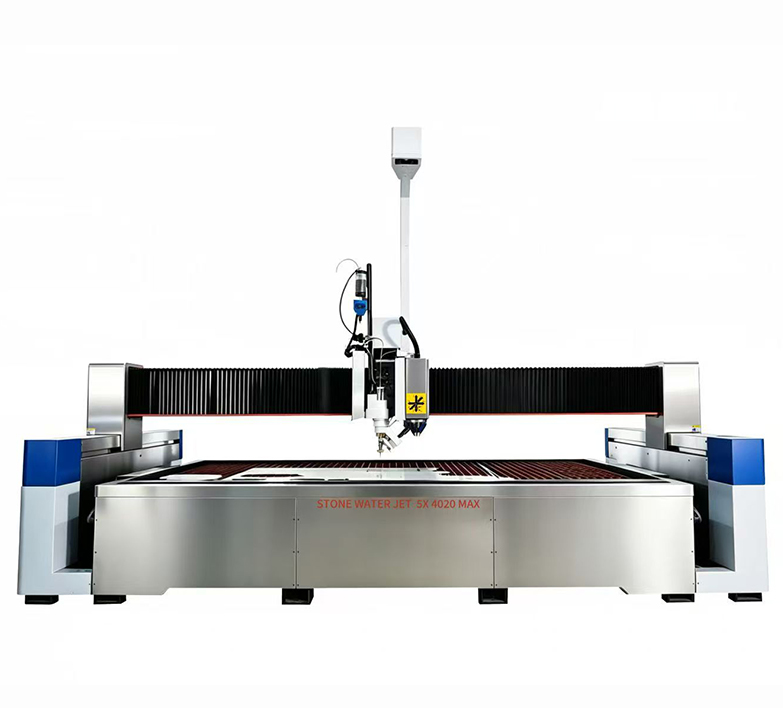

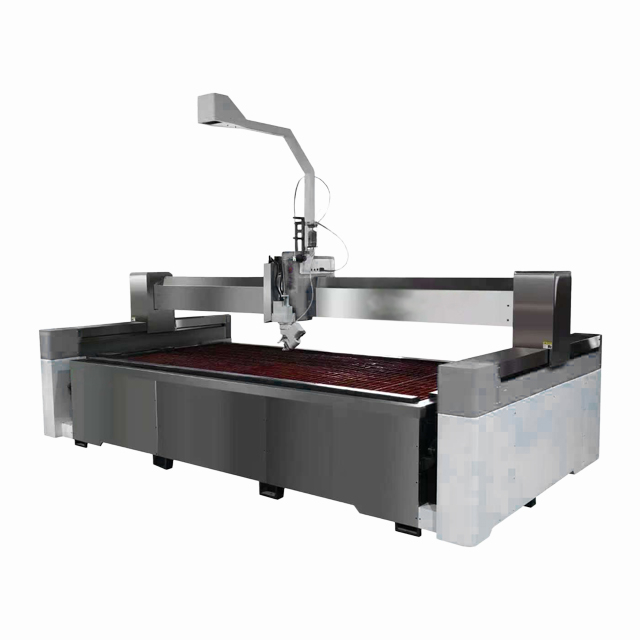

4020 Five-Axis WaterJet Cutting Machine
Machine Feature :
This 5-axis CNC waterjet cuts diverse metals,realizing angled and complex shaping withhigh precision and burr-free cuts.
Product Characteristics :
Supports bevel cutting and complex‑shape machining
High precision, compatible with various materials
High‑quality components for stable high‑pressure operation
Multi‑format compatible and easy to operate

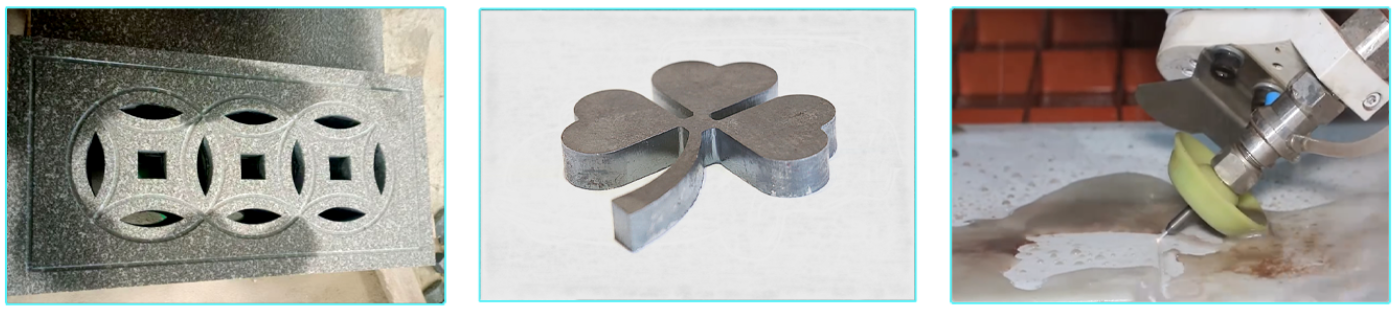

Samples:
Printer parameter:
| Category | Parameter | Value |
|---|---|---|
| Machine parameters | Cutting Material | Almost any material |
| Cutting Dimensions (mm) | 4000*2000 | |
| Cutter Head Lift Height (mm) | ≤100 | |
| Cutter Head Tilt Range | ≤75° | |
| Cutter Head Detection Device Configuration | Weihong original laser detection | |
| Cutting Accuracy (mm) | ±0.15 | |
| Processing Speed | 0.50 ~ 3.5 m/min (depending on material) | |
| Repeat Positioning Accuracy (mm) | 0.05 | |
| Maximum Feed Speed | 3500 mm/min | |
| Maximum idle speed | 5000 mm/min | |
| Supercharger configuration | Booster assembly configuration | JCX brand supercharger assembly |
| Supercharger inlet pressure (MPa) | Greater than 0.4 MPa | |
| Booster main motor power | 37 KW | |
| Maximum pressure (MPa) | 400 MPa | |
| Long-term operating pressure (MPa) | ≤340 MPa | |
| Maximum displacement (L/min) | 3.7 | |
| Maximum nozzle diameter (mm) | 0.33 | |
| Cylinder body | Domestic (with special treatment) | |
| Piston | 17-4 | |
| Seal assembly | Imported raw materials | |
| Cylinder body (high-pressure cylinder) | Imported raw materials | |
| Ceramic plunger | Imported raw materials | |
| High-pressure seal assembly | Imported raw materials | |
| High-pressure inlet valve | 15-5 | |
| Check valve repair kit | Imported pressure-compensated variable displacement pump | |
| Oil pump type | Imported pressure-compensated variable displacement pump | |
| Maximum oil pump pressure (MPa) | 31.5 | |
| Main motor power (kW) | 37 KW | |
| Oil tank capacity | 90 L | |
| CNC control system | CNC Hardware | Industrial computers, solid-state drives |
| Shanghai CNC (Weihong) bus servo control system / NcStudio V10 Waterjet Cutting Control System | ||
| PLC | ||
| Software | AutoCAD DXF / G code | |
| Windows 7 | ||
| High-pressure alarm e-stop, oil overheat alarm e-stop | ||
| Machine configuration | Machine tool lubrication method | Oil-immersed |
| Crossbeam material / high-pressure water switch | Heat-treated profile / pneumatic high-pressure water switch | |
| Longitudinal beam material | Heat-treated profile beam (4200×2500 mm, milled and formed in one pass) | |
| Water tank structure and material | Longitudinal beam reinforcement, steel plate and longitudinal beam fully welded | |
| X- and Y-axis control methods | Shanghai CNC (Weihong) bus servo control system | |
| A- and C-axis control methods | Shanghai CNC (Weihong) bus servo control system | |
| Z-axis control method | Shanghai CNC (Weihong) bus servo control system | |
| Control motor manufacturer | Shanghai CNC (Weihong) bus servo control system | |
| Linear guide manufacturer | NUG X-20, Y-30, Z-15 | |
| Ball screw manufacturer | TBI Y-axis double screw: 4010, Z-axis: 2005 | |
| Machine tool heat treatment | Annealed heat treated | |
| Electrical switch | Schneider (genuine) | |
| With reverse plate bracket | Separate hydraulic station | |
| Will high-pressure water enter the sand valve | Isolated sand-valve sand supply system prevents high-pressure water backflow into the sand hopper | |
| Sand supply system | Requires air compressor 0.2 MPa (power not less than 3 KW) |
