JCXstone-5F-C
JCXStone

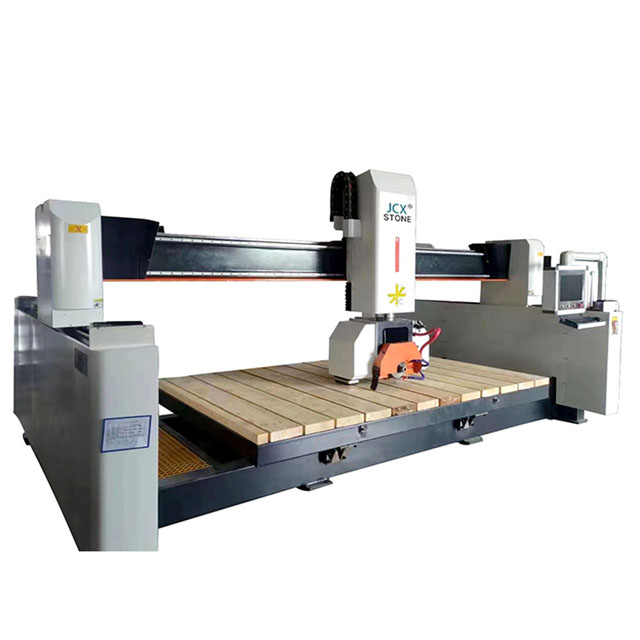

5 Axis Stone Cutting Saw
Product Parameters :
X-axis travel | Width 3200mm |
Y- axis travel | Length 2000mm |
Blade diameter | 350mm |
Bed frame | Seamless welding ,aging treatment, five faces milling machine processing |
Surface treatment | High temperature spray to prevent paint from falling off |
Cutting thickness | within 50mm |
Transmission mode | High wear resistant widened square rail + X,Y axis gear rack , Z axis ball screw |
Driving mode | High precision servo control |
Cutting motor | Saw + tools , waterproof and high temperature resistant |
Cutting speed | 1-2500mm/min （based on thickness of material） |
Motor power | 11KW |
Control system | Update the latest five axis system |
Programming mode | Modify data directly in operating system |
Platform rotation angle | 0-85 degrees |
Head rotation angel | 0-360 degrees |
Head tilt angel | Any angel within 0-90 degrees |
Vacuum manipulation | With vacuum manipulation function |
Table | Hydraulic, thickened wooden table ，add universal wheel |
Oiling method | Automatic oiling and lubrication |
Tools box | One saw blade, wrench, wearing parts |
Dimensions | L 5250mm, W3230mm, H 2530mm |
Weight | 3500kg |

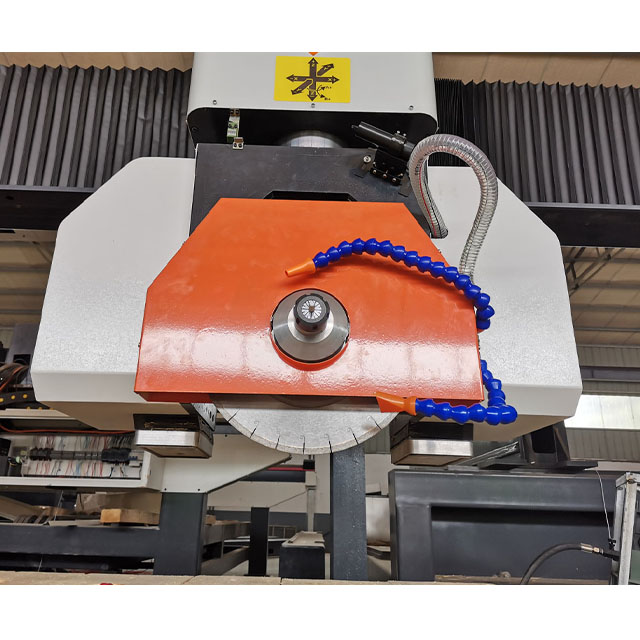

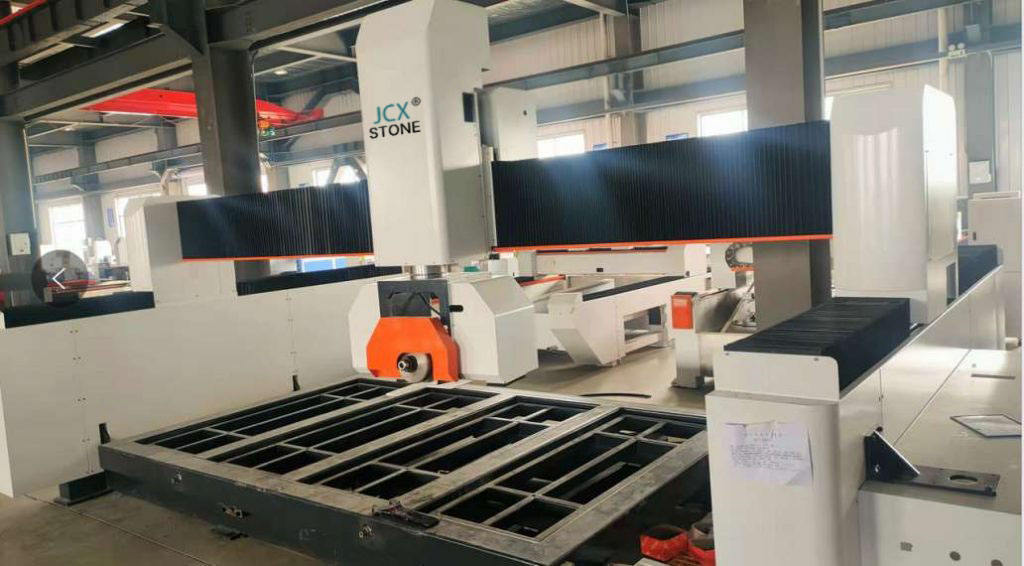

Machine Photos :
Automatic Rotary Platform
Samples :
Machine Feature :
This machine is made of heavy materials, compact bed and durable bed without deformation. The whole machine processes the guide rail surface and drilling through a large five face milling machine. The key parts of the machine choose imported excellent accessories, with high machining precision, large production capacity and higher degree of automation. Imported high-precision ball screw transmission is adopted, and the lead screw is highly heat-treated.
The wear resistance is more durable and the service life of the whole machine is prolonged. This equipment is equipped with high-end, servo control, fast and stable operation.
Packaging Details :
Film+ PE stretchy film in 20 feet container.
Package is much more strong and environmental protection. We can also make package according to your requests.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.
Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.
We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on )
We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
