JCXstone-M20
JCXStone

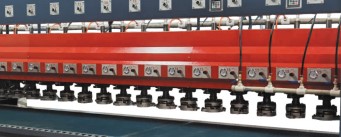

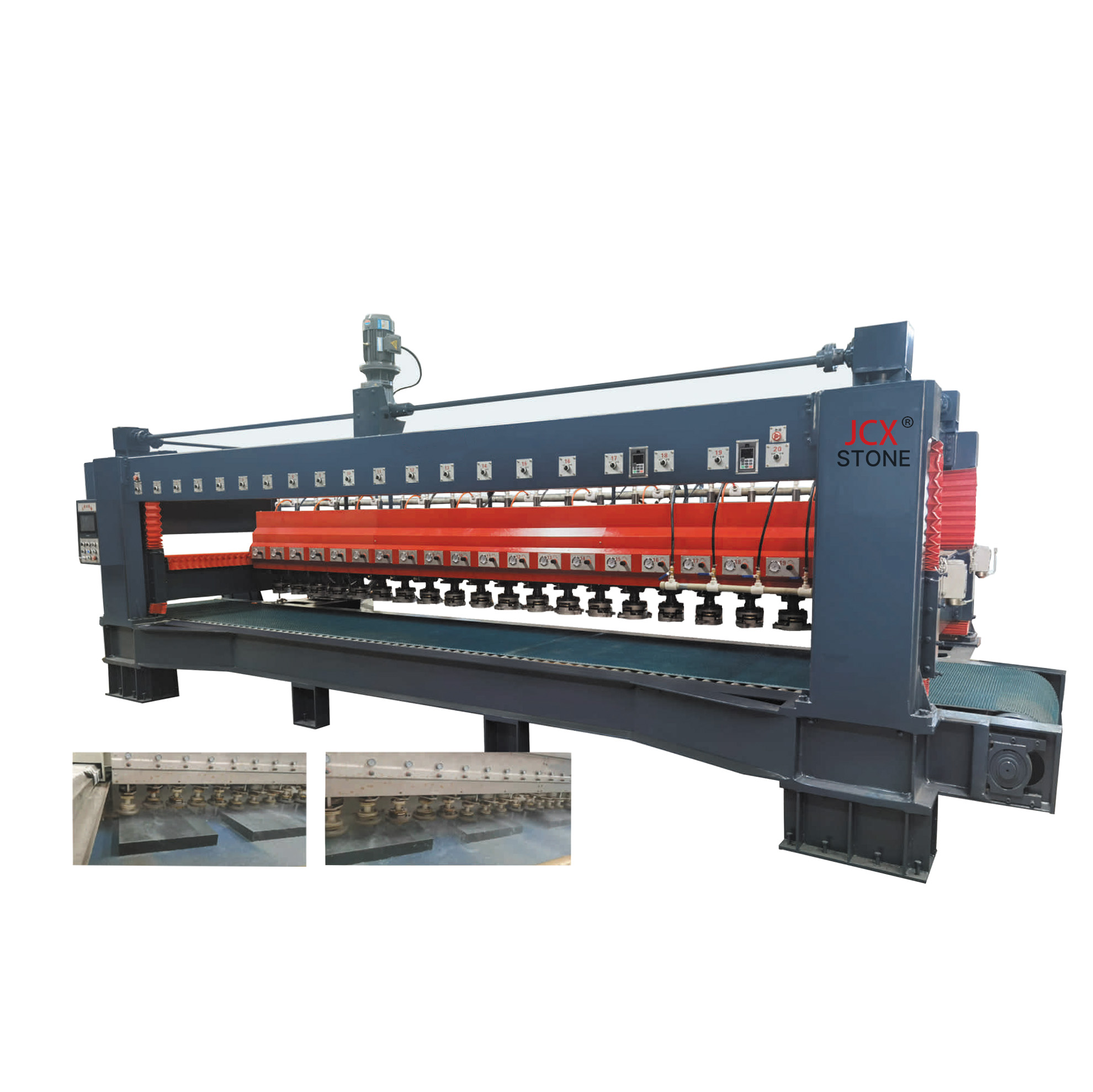

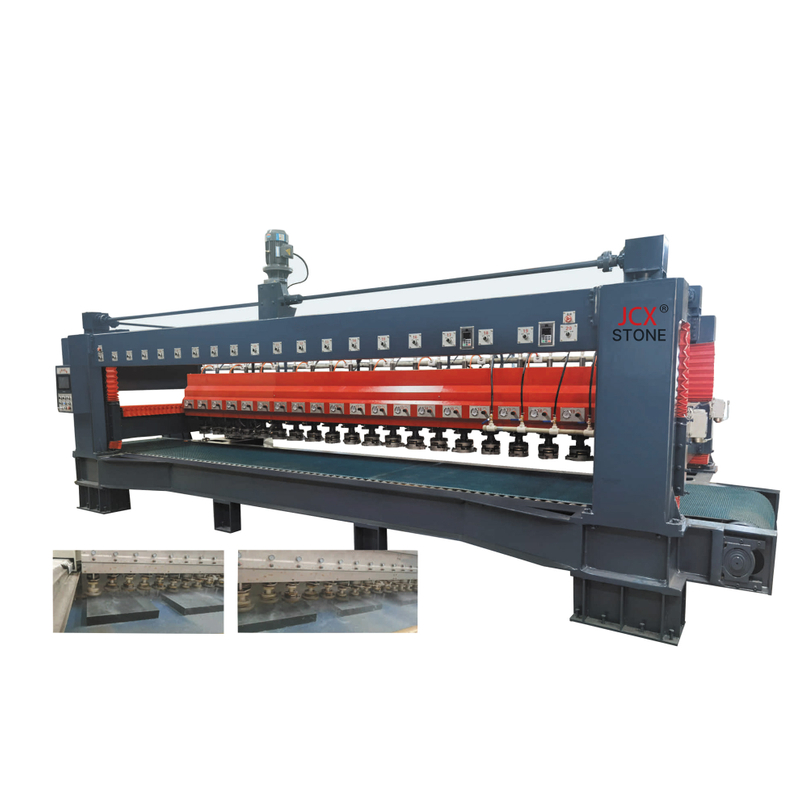

Multihead Automatic Polishing Line

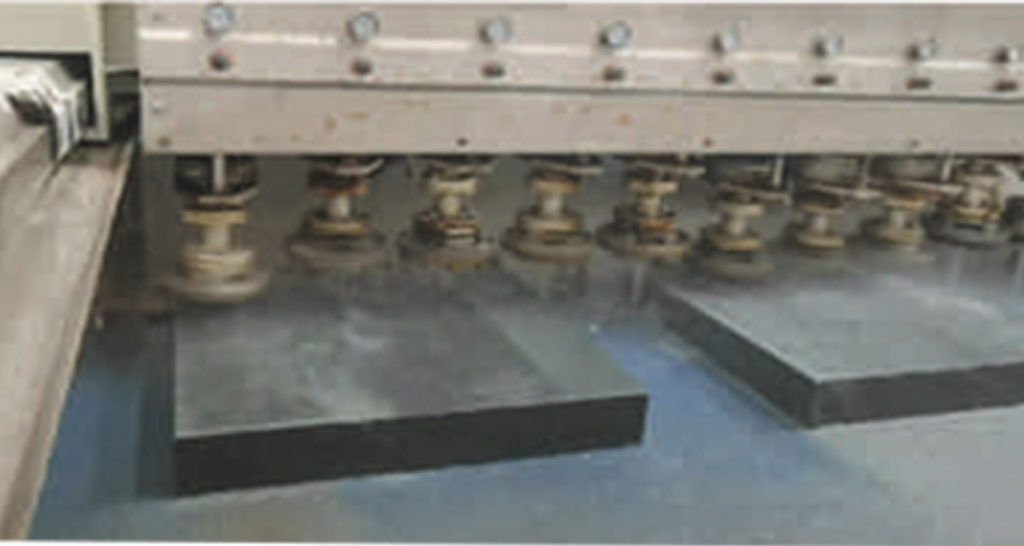

Samples :
Product Advantages :
1.The equipment is stable and easy to install.
2.High efficiency and high precision.
3.Fully automatic tool change function.
4.One person can operate multiple devices.
Specification :
| Product name | Multihead automatic polishing line |
| Size | 12800~2800*2880mm |
| Main motor for each grinding head | 7.5KW |
| Total power | 88KW |
| Max. processing size | 1000*(15-500)mm |
| Conveyor belt speed | 0-2800mm/min |
| Hydraulic pressure | 0.2-0.4Mpa |
| Water consumption | 15 m*/h |
| System air pressure | 0.5-0.7Mpa |
| Working air pressure for grinding head | 0.2-0.5Mpa |
| Air consumption | 50-100L’min |
| Processing efficiency | 0.5 m/h |
Detail :
Service Advantages :
24 hours technical support by email or phone.
The seller provides maintenance and all spare parts of the machine within one year warranty.
Under the Normal working condition, the whole machine is in the guarantee.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
