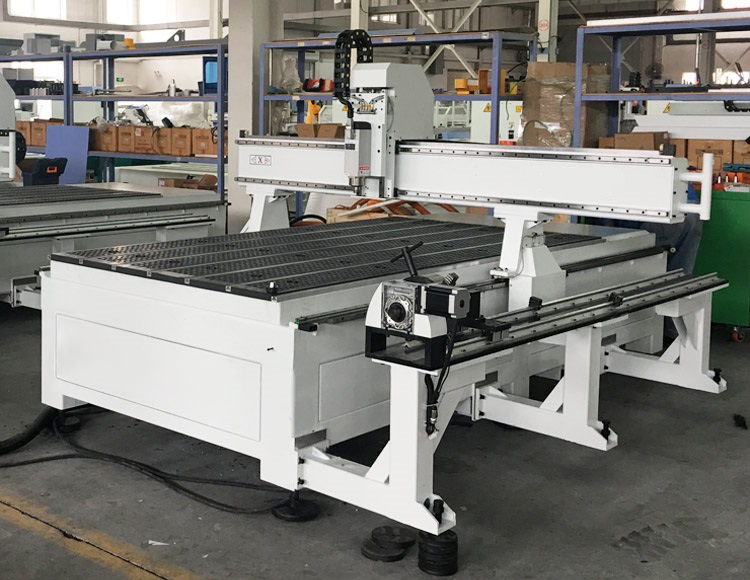

Plane and cylinder engraving machine
Machine advantage:
1. It adopts four-axis control system, full servo drive, handle control (optional: industrial control, computer), which is convenient to operate and easy to learn.
2. High engraving accuracy, the smallest cutter head is 0.1mm, and the smallest workpiece can be processed 50*70mm.
3. The fuselage is welded by industrial steel pipes, with a box-like structure and large carrying capacity
4. The body is self-heavy, and it runs at high speed without shaking and more stable; the coordinate positioning is accurate, and the accuracy is 0.06mm.
5. The high-speed spindle motor adopts water cooling technology, and its energy consumption is low, 1-2 degrees of electricity per hour.
6. The system has self-protection function, which can save the original point and continue engraving in unexpected situations such as broken knife, power failure, and jamming.
7. The XYZ axis adopts fully imported screw rods and high-precision linear guides, with higher accuracy, faster moving speed, and 20m/min higher engraving speed
Technical parameter:
Machine name | Plane and cylinder engraving machine |
Flat table X-axis working size | 1500mm |
Flat table Y-axis working size | 2400mm |
Z axis working size | 350mm |
Rotary axis working size | 350mm |
Working table | T-slot working table |
Traveling Speed | ≥20m/min |
Working Speed | ≥15m/min |
Position Precision | ±0.05mm |
Repeat Position Precision | ±0.05mm |
X,Y axis transmission system | Rack |
Z axis transmission | Ball Screw |
Guide rail | Imported from Taiwan , 25mm |
Motor Drive | Servo drive |
Motor | 1.5KW servo motor |
Spindle | 2.2 kw HQD water cooling spindle |
Spindle Speed | 8000-24000rpm |
Inverter | 4.5KW*2 |
Control System | DSP A18 |
Tool box | Tool box and whole set tool collect |
Power | 220V / 380V 50H/60HZ |
Total output power | 15KW |
Lubrication Syste | Manual |
software | Wentai, Artcam, Type3 |
Working Dictate | G Code |
Machine Color | customized |
Machine siz | 3000x2200x1800mm (main machine） |
Machine weigh | 1500kgs |
PS: All the working area and specifications can be customized according to your requests.
