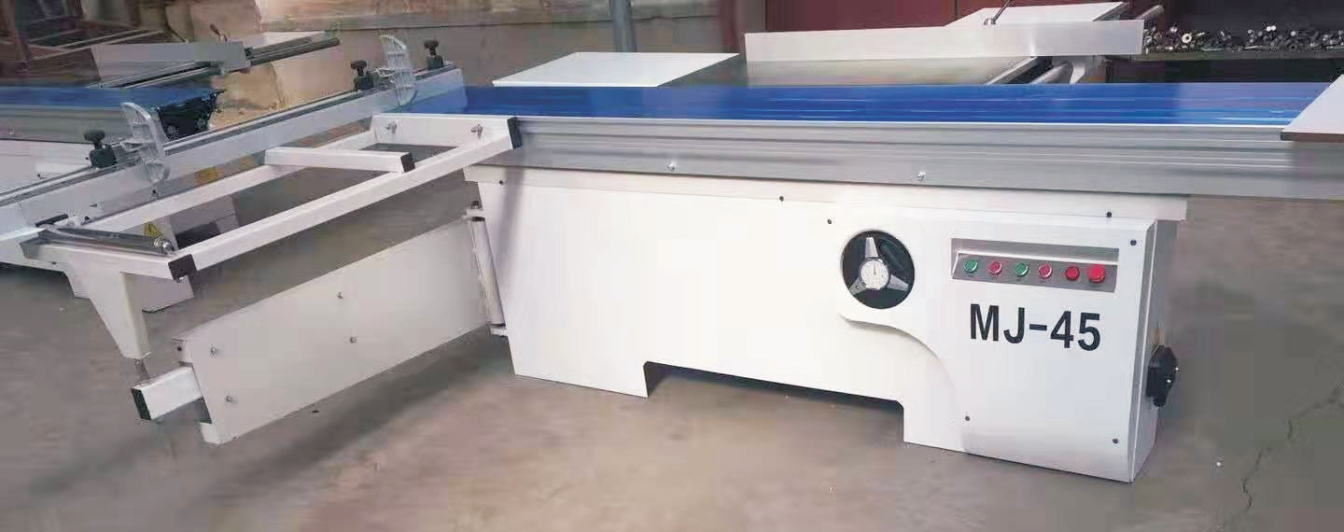

Precision Panel Saw

Precision Panel Saw

  Machine advantage:

This machine tool can cut all kinds of solid wood board, wood-based board, ABS board, PVC board, organic glass board and other plates with similar wood structure and hardness. It is one of the necessary equipment for furniture making, decoration and other industries.

The machine consists of the bed, the mobile worktable, the support of the mobile worktable, the fixed work table, the main saw, the line saw, the drive lifting mechanism, and the horizontal and longitudinal guide plates. The guide rail of machine tool is designed with a pure hard chromium element rolling relative moving mechanism, which ensures the long and accurate work of the machine tool. The angle of the main saw blade and the line saw blade is intuitively displayed by the precision angle instrument, and the operation is simple.The machine consists of the bed, the mobile worktable, the support of the mobile worktable, the fixed work table, the main saw, the line saw, the drive lifting mechanism, and the horizontal and longitudinal guide plates. The guide rail of machine tool is designed with a pure hard chromium element rolling relative moving mechanism, which ensures the long and accurate work of the machine tool. The angle of the main saw blade and the line saw blade is intuitively displayed by the precision angle instrument, and the operation is simple.

  Technical parameter:

PS: All the working area and specifications can be customized according to your requests.

  Installation And Regulation:

    1 . The location of the machine should be selected on hard ground or special foundation. After the whole machine is positioned, the bed level should be adjusted to ensure the accuracy of the machine.The location of the machine should be selected on hard ground or special foundation. After the whole machine is positioned, the bed level should be adjusted to ensure the accuracy of the machine.

    2 . In order to ensure the coincidence degree of the fixed worktable and mobile worktable, adjust the parallelism of the mobile worktable to the main sheet, adjust the parallelism of the longitudinal guide plate to the main basis, adjust the perpendicularity of the horizontal guide plate to the main basis, and make the indexes meet the accuracy requirements of the machine.

    3 . All of the above indexes, the factory to every good tune, the user needs to test the index of knowledge. If there is any error, it can be adjusted by technical personnel. After that, there is no need for further ad jus tment.

  Use And Maintenance:

    1 . After the adjustment of the machine to the precision requirements, first to confirm whether the change is good, should pay special attention to the zero line can not forget access, the equipment has grounding signs, can not be wrong, and after the correct access, you can test the car. Before running, turn the handle and handle, check the triangle belt and other rotary mechanisms, and whether the transportation will affect their functions. Before the official operation, we should first move the trial run to confirm that the steering is correct, then we can install the access piece into normal use. Pull out and rotate the stop latch at the end of the worktable, the worktable can move, and push to the two section, install the appropriate main and slice. Use a small plate to sawing, do not cut it off, try sawing, turn the handle on the right side of the machine to adjust the coincidence degree between the scribing piece and the main part.

When the scribing piece is used for trapezoidal saw tooth, the cutting width of the scribing piece is slightly wider than the cutting width of the main slice when adjusting the height of the scribing slice. Adjust the height of the main part, so that the sawtooth top will expose the workpiece about 7mm. When the planeness of the plank is large, a combination type line sheet should be used to adjust the gasket in the plate so as to achieve the purpose of slightly wider than the main sheet. After the adjustment, it must be confirmed that the position of the adjustable position must be prohibited so as to enter the normal production.

    2 . Maintain

 This machine should use the suction equipment.

Each class should clean up connectors, moving parts, worktables,

guideways and machine cavity. When workload is large, clean it as time is required, so as to ensure its accuracy.

Each class of oiling parts: motor rotating shaft, drawing line, lifting and rotating shaft, screw rod, wire and relative rotation and sliding place.

The track of mobile workbench should be especially clean and machine lubricating oil should be rubbed.

  Safety Precautions:

    1 . According to the film shield, it can protect the operator's safety and can't be demolished at any time.

    2 . The power should be switched off when cleaning, changing or repairing, and it can be carried out until the machine stops completely.

    3 . When you operate, you must not rely on your hand. When you cut small and narrow workpieces, you need to use push handles.

    4 . The appropriate saws and rotational speeds should be selected.

    5 . It is necessary to regularly check the operation of machine tools, and find that abnormal problems should be stopped in time.

    6 . Saw non wood board piece before, should consult the relevant personnel, in order to avoid losses and accidents.

    7 . Machine tools should be reliably grounded

  Thin Sheet Of Vulnerable Parts:

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.

Guarantee and After-sale service:

1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
