JCXStone-Y
JCXStone

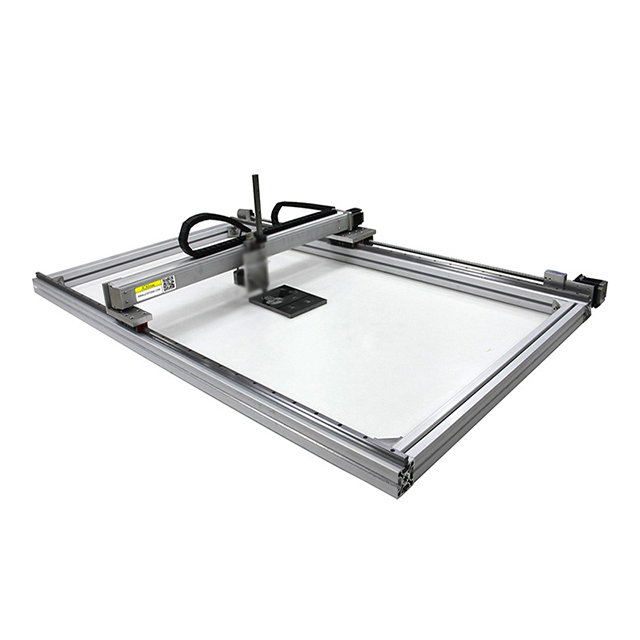

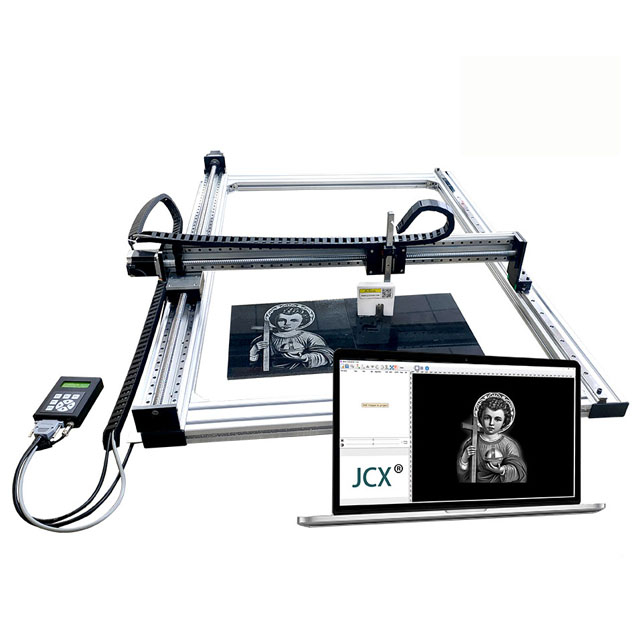

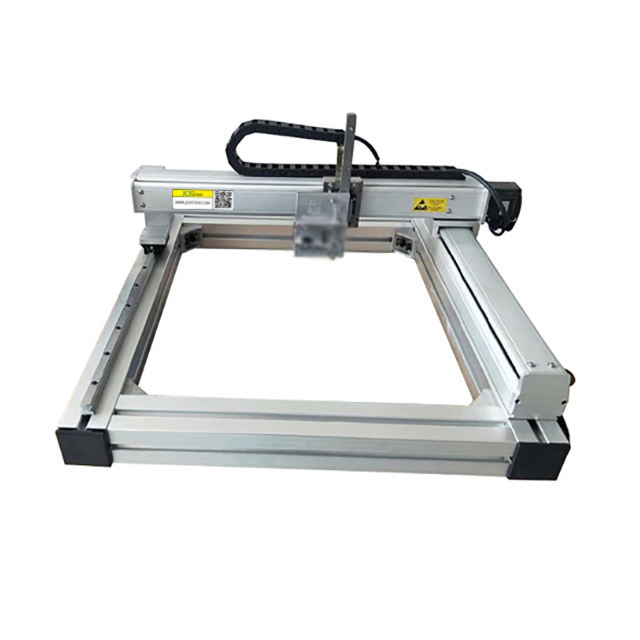

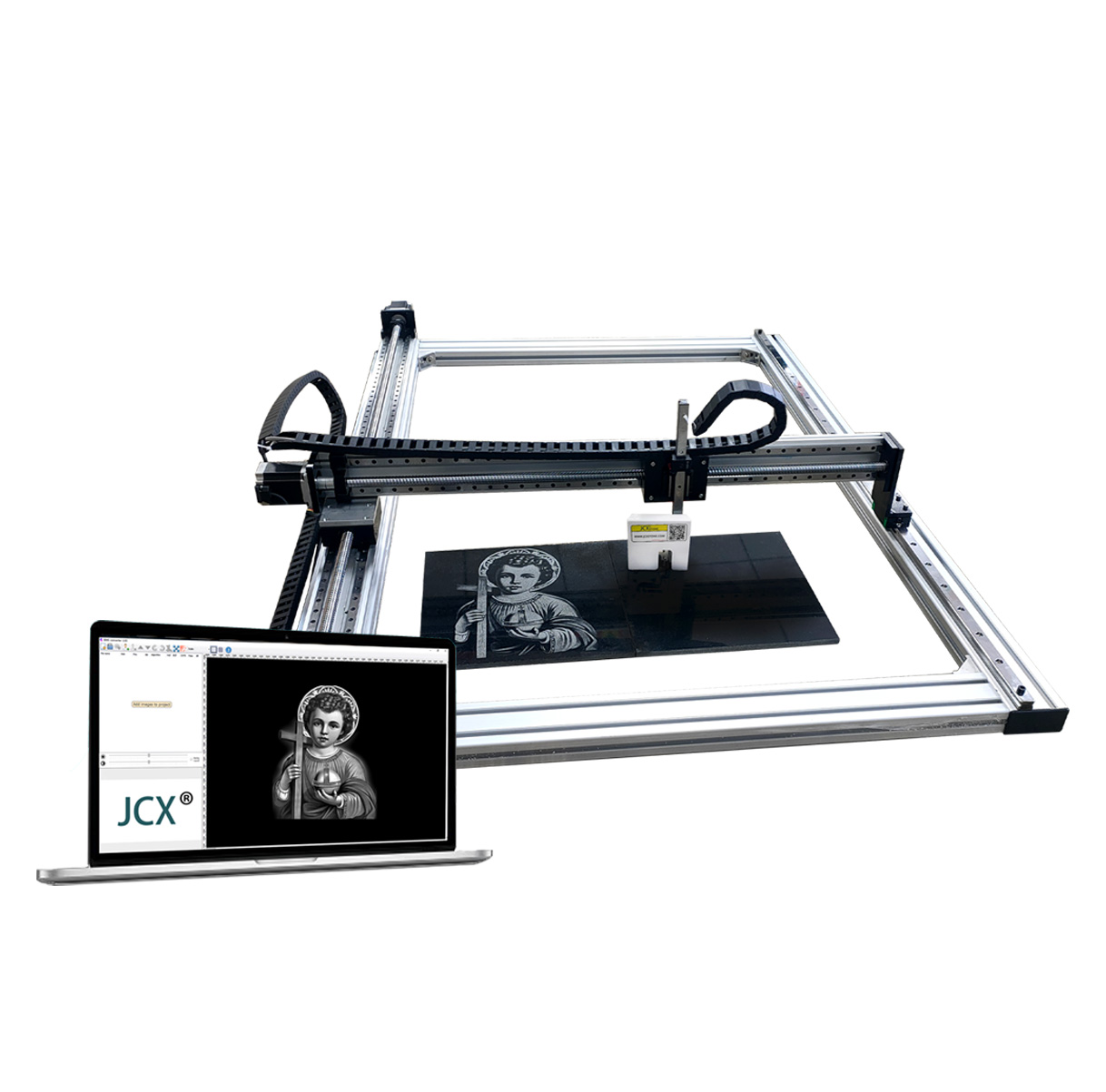

Affordable Stone Impact Engraving Machine
Product Parameters :
Technical Parameters | Description |
Type | Tablet |
Working size | 400х600мм/600х800мм/700х1200мм |
Weight | 45kg |
Power supply | 220 V 50 Hz |
Total power | <80W |
Transmission type | X-axis-screw Y-axis-screw |
Images download | SD-card |
Independent controller | Completely autonomous |
Internal memory | Yes |
Processed materials | Granite, Gabbros, Basalt, Marble, Glass |
Engraving depth | 0.5мм |
Location precision | 0.05мм |
Engraving steps | From 0.1 to 0.5 with the accuracy of 0.025 mm (100-20 steps/cm) |
Grey shades | From 2 (bit format) to 256 |
Combined regime | Yes; 256 shade |
Engraving speed | 1-2,5 hours for the images with size 30х40 cm |
Engraving tools (needles with the diamond weight 0,06 carat) | 10-30 images with size 30х40 cm |
Maximum incline of material | 90 degrees |
Warranty period | 1 year |
After-sale service | Yes |

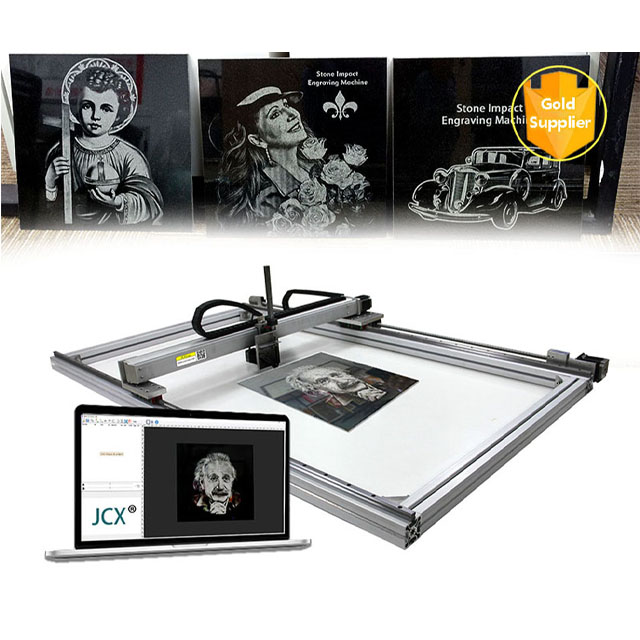

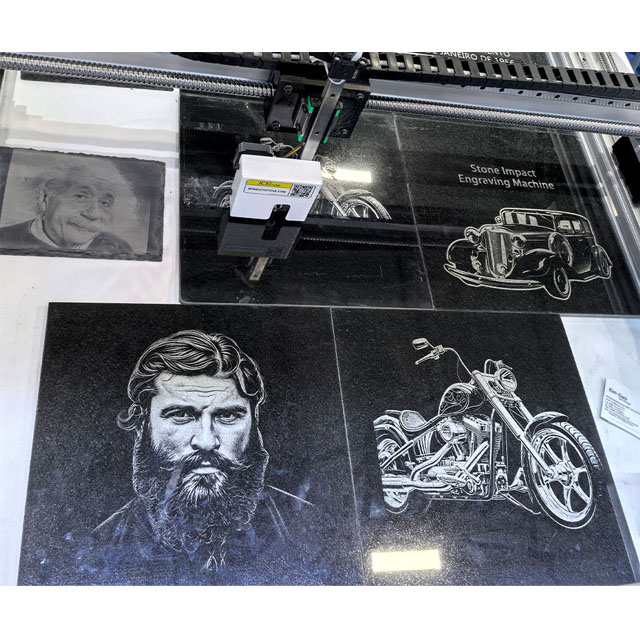

Samples :
Product Advantages :
Light weight and small form factor simplify transportation, storage, and use in small manufacturing plants;
Brand manufacturer quality unit ( Bosch Rexroth, Shangyin, etc. );
Built-in autonomous controller and non-volatile memory, no need to connect a computer;
Fast image making and engraving;
Anti-power failure;
minimum power consumption;
Use SD card to download images;
Sensor LCD panel on machine control block;
The built-in software is concise and clear;
Large selection of grayscale and user licenses for engraved images;
Software adjustment of user working speed;
Easy training for personnel that do not require specialized knowledge;
1 year warranty service;
Departures to customers to train personnel and install machines;
Permanent support for all customers, including the possibility to provide them with service at their address after the warranty period.
Frequently Asked Questions By Customers :
1. How long does it take to engrave a 30*40cm picture?
About 30 minutes.
2. The average engraving speed of the machine
2 m/min.
3. How long does it take to engrave a 10*10cm picture?
About 10 minutes.
4. How much area can a diamond drill bit engrave?
It can work on 10 square meters.
5. Is it possible to pilot with Apple plus Photoshop?
Yes, first use photoshop to process the photo, then use sepcial software to process the photo, change the photo format to bmc. (system together with machine)
6. What is the principle of engraving?
Diamond Needle.
7. What is the working format?
bmc format.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
