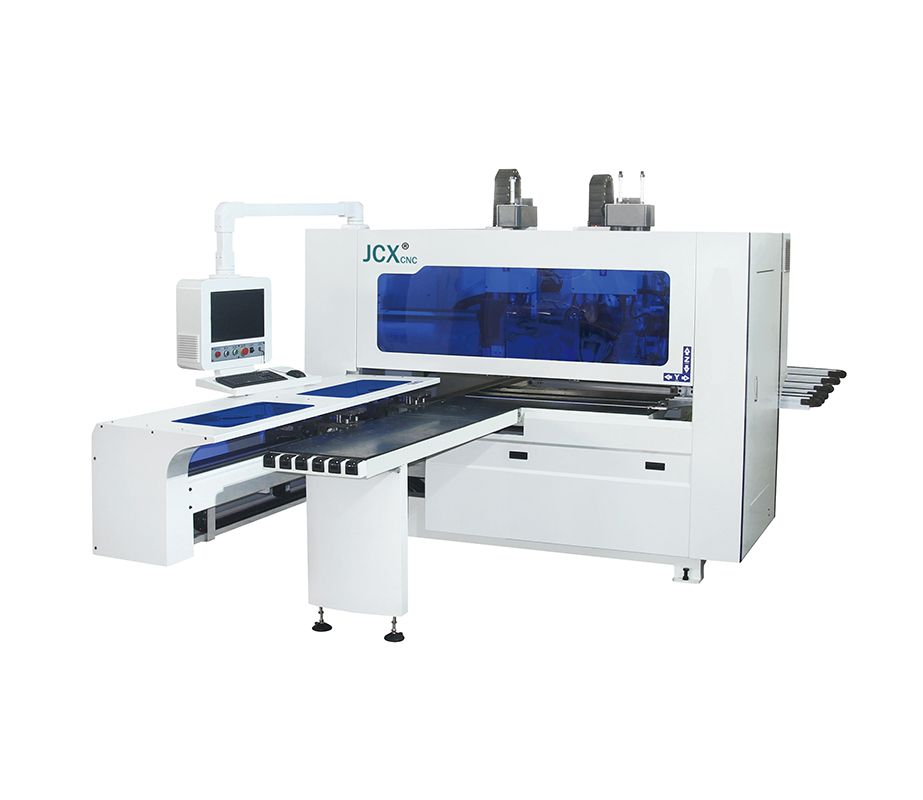

Single Drilling Package CNC Hexa Drill
Machine Advantage:
The six -side CNC drilling center is suitable for panel furniture manufacturing enterprises. It can complete six face drilling of workpieces (including special-shaped ones) and slotting of front and back sides, and can connect with various kinds of concealed connection technology at present;
The maximum width of the workpiece to be processed is 1220mm, and the length is unlimited;
X-axis adopts a long guide rail to ensure maximum processing efficiency, double grippers, and an automatic side tightening device to ensure the stability of the workpiece in the process of moving;
The air floating table of the feeding table can effectively protect the workpiece from being damaged during the sliding process;
The open docking interface can be compatible with XML, MPR, and other formats, can be seamlessly docked with the design order splitting software, without programming, and can be processed by scanning the general bar code;
Import and export mode: forward front out, forward back out, backward out rotation, efficient operation.
Technical parameter:
NO | 规格 | Specifications | 技术参数 |
1. | 加工木板长度 | Processing wood length | 70mm~3050mm |
2. | 加工木板宽度 | Processing wood width | 30mm~1200mm |
3. | 加工木板厚度 | Processing wood thickness | 10mm~60mm |
4. | X 轴移动速度 | Max moving speed of x-axis | 150m/min |
5. | Y 轴移动速度 | Max moving speed of Y-axis | 90m/min |
6. | Z 轴移动速度 | Max moving speed of Z-axis | 45m/min |
7. | 上钻组垂直钻 | Drill group vertical driling | 9 branch |
8. | 上钻组水平钻 | Drill group horizontal driling | 8 branch |
9. | 下垂直钻 | Drill down vertically | 9 branch |
10. | 钻组功率 | Drill group power | 2.2KW×2 |
11. | 镂铣主轴方式 | Lou milling spindle mode | Er3 |
12. | 镂铣转速 | Lou milling speed | 18000r/min |
13. | 镂铣主轴功率 | Lou milling spindle power | 3.5kw×2 |
14. | 工作台高度 | Workbench height | 900mm |
15. | 主进入吸尘管直径 | Lord enters the diameter of the suction pipe | 125mm |
16. | 总功率 | Total power | 19.8kw |
17. | 工作电压 | Operating voltage | 380V 50HZ |
18. | 工作气压 | Working pressure | 0.6-0.8Mpa |
19. | 重量 | weiht | 3800Kg |
20. | 外形尺寸 | Dimensions | 5500mm×2750mm×2300mm |
PS: All the working area and specifications can be customized according to your requests.
Main Configuration:
配置名称 | Configuration Name | 品牌名称 | Brand Name |
系统 | System | 台湾 | Taiwan |
伺服电机 | Servo Motor | 汇川 | Huichuan |
电器 | Electrical appliances | 霍尼韦尔 | France Schneider |
直线导轨滑块 | Linear guide rail slider | 台湾上银 | Bank of Taiwan |
滚珠丝杆 | Ball wire rod | 台湾 TBI | TBI Taiwan |
齿轮齿条 | Gear rack | 德国 | Germany |

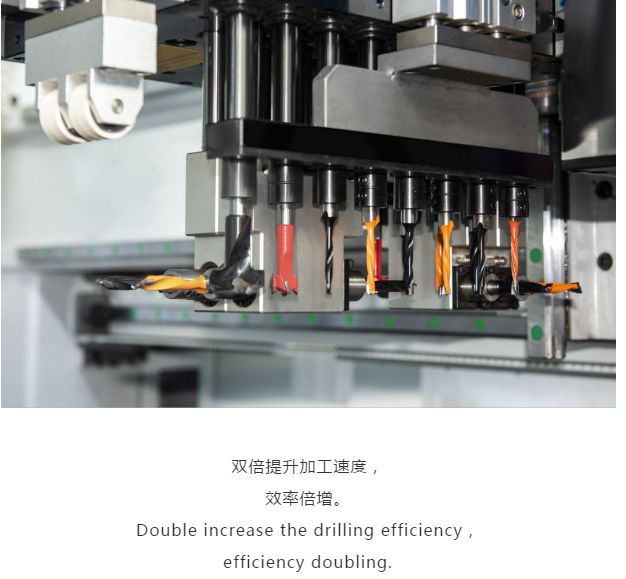

钻包 | Drill kits | 普登 | Proteam |
Functional Role:
部件名称 Part Name | 参考图片 Reference Picture | 部件说明 Description of components |
电器及电箱 Electrical and electric boxes |

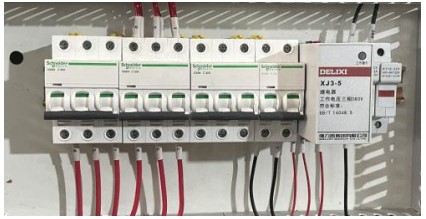

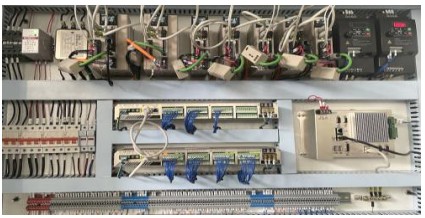

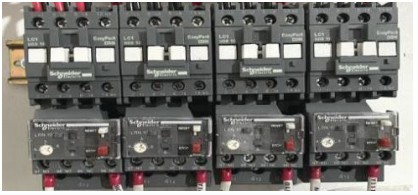

| 品牌：法国施耐德 Brand: Schneider, France 整机按照欧洲 CE 标准生产、接线、所有线路线号标识明 确，线路清晰，随机附带电路图，机器发生故障时，排 除故障检查线路简单方便。 According to the European CE standards, the whole machine production, wiring, all line number identification is clear, the line is clear, random with circuit diagram, machine failure, troubleshooting inspection line is simple and convenient. |

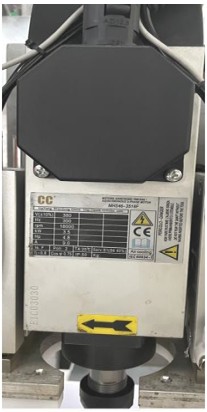

主轴 Main spindle |  | 品牌：长川 Brand: Changchuan 3.5KW 气冷式高速主轴 2 个，转速 18000rpm/min； 3.5 KW Air-cooled high-speed spindle 2, speed 18000 rpm/min; |

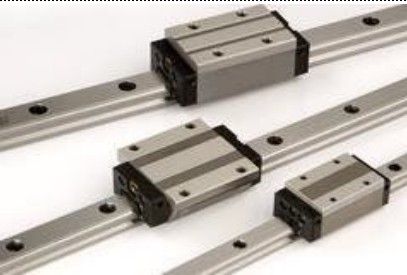

导轨及滑块 Guide rail and slider |  | 品牌：台湾上银 Brand: Taiwan Shangyin 防尘性能好，精度 高，重负荷且使用寿命长。 Good dustproof performance, high precision, heavy load and long service life |
传动 Transmission |
| 采用特殊订制进口高精度 2M 斜齿条，进口高精度减速机， 传动力大且平稳，Z 轴采用滚珠丝杆传动。 Special custom imported high precision 2 M helical bar, imported high precision reducer, large and stable transmission force, Z shaft using ball wire rod transmission |

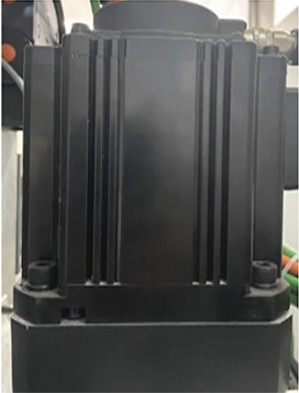

驱动及电机 Drive and Motor |  | Brand ：Huichuan噪音低，高速力矩大。内置精密 轴承，扭力大，工作时 间长，高解析及定位精度高。 Low noise and high speed torque. Built-in precision bearing, large torsion, long working time, high resolution and accurate positioning. |

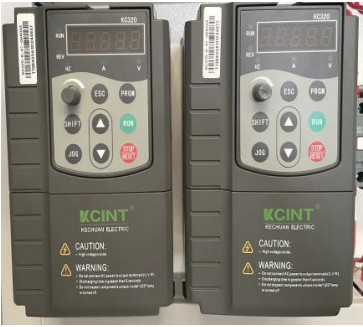

变频器 Frequency converter |  | 低频输出力矩大，电机运转噪音小，运行平衡，转速精 度高。 The low frequency output torque is large, the motor operation noise is small, the operation balance, the speed precision is high |

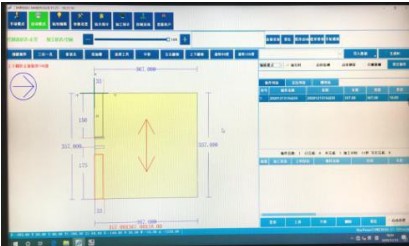

控制软件 Control software |  | 人机界面接触友好，操作简单，系统算法科学，响应时 间快。 The man-machine interface is friendly, easy to operate, scientific system algorithm and fast response time. |

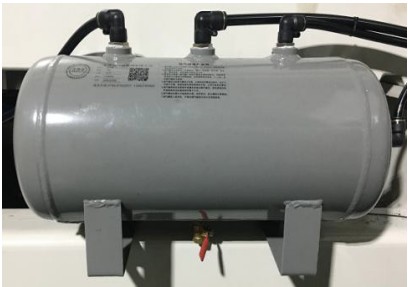

储气罐 Gas storage tanks |  | 高端机上面都有配置储气瓶，确保气压稳定工作，以防 机器的气压不稳定造成设备正常运作，这样设备工作更 稳定。 High-end machines are equipped with gas cylinders to ensure stable air pressure, in case the machine pressure instability caused by the normal operation of the equipment, so that the equipment work more stable. |

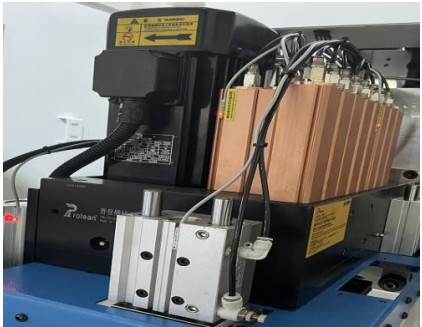

钻包 Drill kits |  | 品牌：普登 Brand: Proteam |

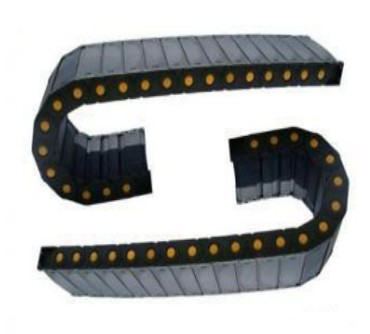

拖链 Trailer chain |  | 采用高柔性电缆拖链，不错的防尘，防腐，防静电性能， 支持 150 度折弯，有效地保护电缆线。 Adopt high flexible cable towing chain, excellent dustproof, anticorrosion, anti-static performance, support 150 degree bending, effectively protect cable |
润滑系统 Lubricating system |  | 润滑作用，保持机械精度及机械使用寿命。 Lubrication, maintain mechanical accuracy and mechanical service life. |
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
