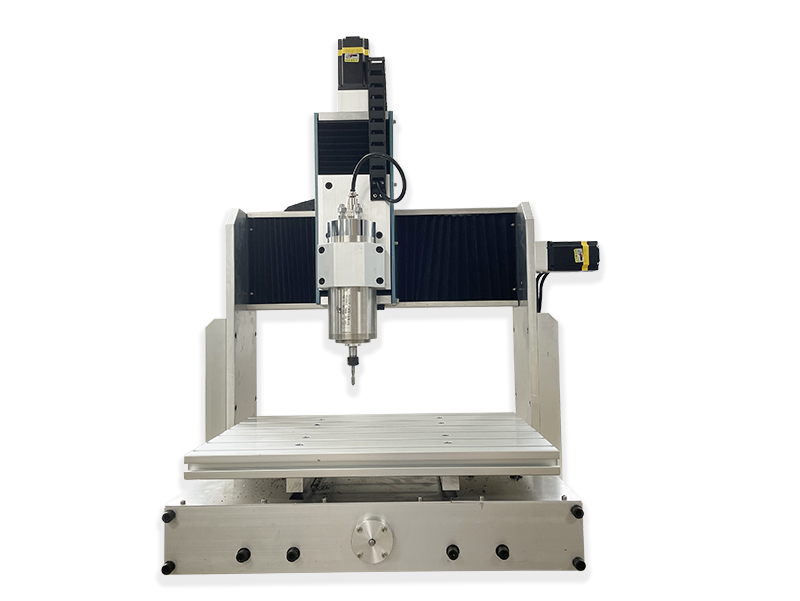

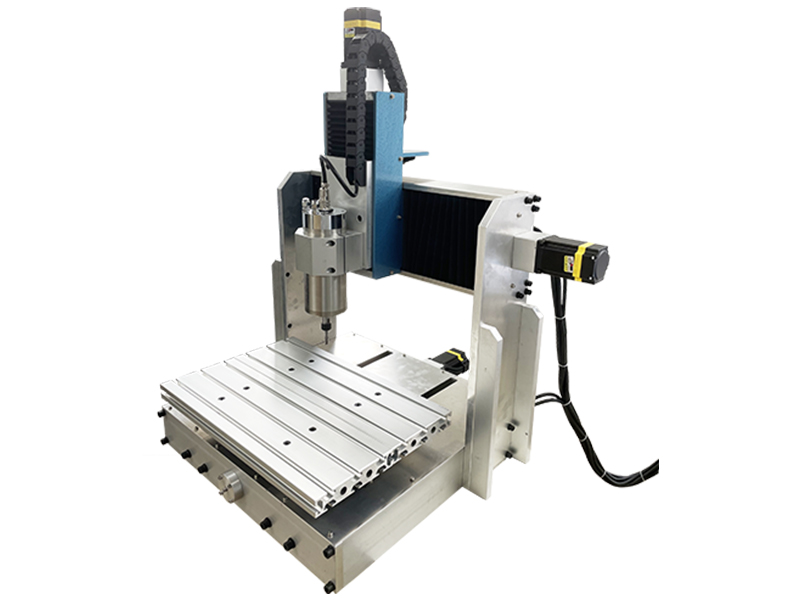

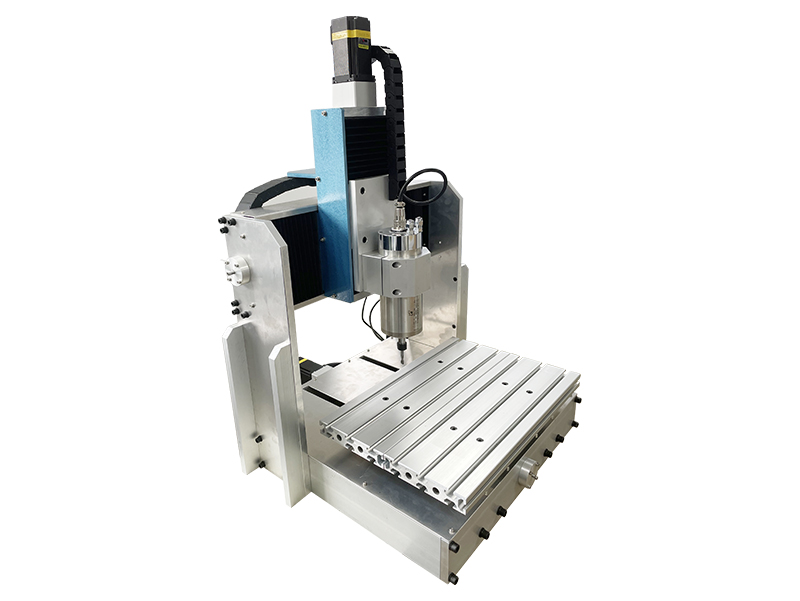

Small Engraving
Machine advantage:
1. The bed body adopts casting structure, the structure is stable; the base adopts box structure, which is convenient to operate.
2. The three-axis adopts linear guide rail, rigid, high precision, precision ball screw.
3. The interface adopts international standard G code instructions, compatible with internal and external engraving software, and the operation is simple and convenient.
Technical parameter:
Name | CNC Engraving machine |
Model | YD-3030 |
X Y axis travel | 300 X 300 mm |
Z axis travel | 100 mm |
Working size | 300X300mm |
Position accuracy of XYZ axis | ±0.02/ 300mm |
Reposition accuracy of XYZ axis | 0.01mm |
Vertical XY axis | 0.02/ 300mm |
Height of Z axis | 100 mm |
Spindle motor | 1.5KW with water-cooling spindle |
Rotary speed of Spindle | 6000-24000rpm |
| Max speed of moving and engraving | 3000mm/min |
Guide | Liner square guide ( Taiwan HIWIN) |
Ball screw | Taiwan TBI |
Drive system | Servo motor |
Water cooling spindle | 1.5 KW |
Collect chuck system | ER 20 |
Format of instructions | G code |
Environment for software | Top-desk PC with Windows 98/2000/XP |
Interface | PCI |
Controlling system | NC studio ( Original ) |
Software Type | Wentai |
Electrical requirements | 220V/ 50HZ |
Packing size | 1.1*1.1*0.7 M |
Gross weight | 150KG |
PS: All the working area and specifications can be customized according to your requests.
Application Area:
This model can be widely used in Wood carving, Bluestone, Marble, Jade, Agate, Jade carving, Various porcelain crafts ,Logo carving and Mold making.
Applicable material:
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
