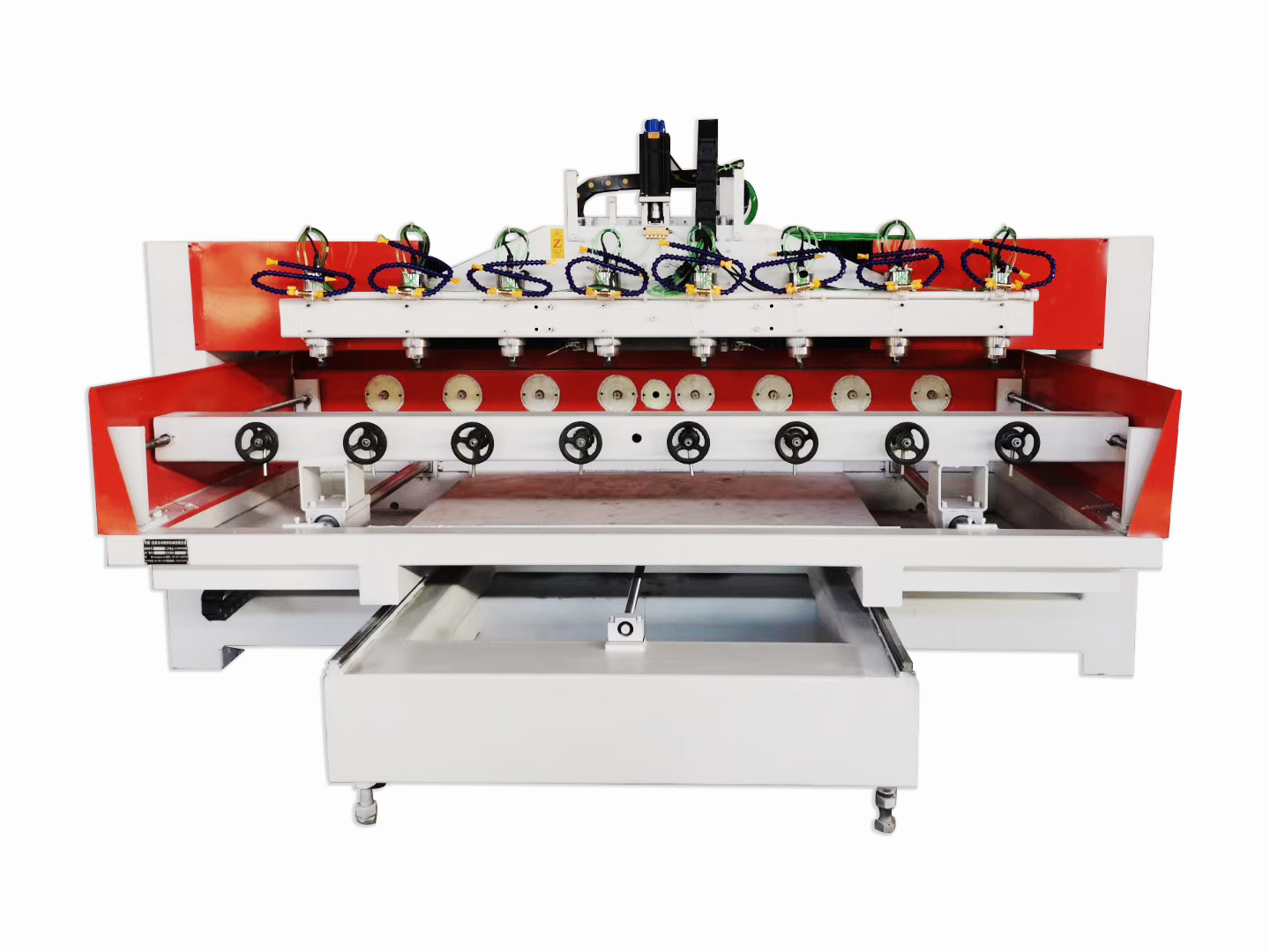

Three-dimensional cylinder CNC machine
Machine advantage:
1. It adopts four-axis control system, full servo drive, handle control (optional: industrial control, computer), which is convenient to operate and easy to learn.
2. High engraving accuracy, the smallest cutter head is 0.1mm, and the smallest workpiece can be processed 50*70mm.
3. The fuselage is welded by industrial steel pipes, with a box-like structure and large carrying capacity
4. The body is self-heavy, and it runs at high speed without shaking and more stable; the coordinate positioning is accurate, and the accuracy is 0.06mm.
5. The high-speed spindle motor adopts water cooling technology, and its energy consumption is low, 1-2 degrees of electricity per hour.
6. The system has self-protection function, which can save the original point and continue engraving in unexpected situations such as broken knife, power failure, and jamming.
7. The XYZ axis adopts fully imported screw rods and high-precision linear guides, with higher accuracy, faster moving speed, and 20m/min higher engraving speed
Technical parameter:
Machine name | Three-dimensional cylinder CNC machine |
Working Area | 1200*250 MM---8 heads |
Traveling Speed | ≥20m/min |
Working Speed | ≥15m/min
|
Precision
| ±0.05mm |
X,Y axis transmission system | Ball Screw |
Z axis transmission | Ball Screw |
Guide rail | Imported from Taiwan , 30mm |
Motor Drive | Taiwan brand drive |
Motor | Taiwan brand servo motor |
Spindle | 2.2 kw HQD water cooling spindle |
Spindle Speed | 8000-24000rpm |
Inverter | 4.5KW*4 |
Control System | DSP A18 |
Tool box | Tool box and whole set tool collect |
Power | 220V / 380V 50H/60HZ |
Lubrication System | Manual |
software | Wentai, Artcam, Type3 |
Working Dictate | G Code |
Machine Color | customized |
Machine size | 2000x2700x1900mm (main machine） |
Machine weight | 2000kgs |
PS: All the working area and specifications can be customized according to your requests.
Applicable industry:
It is suitable for carving three-dimensional workpieces such as European-style and antique solid wood furniture, staircase columns, Buddha statues, human figures, handicrafts, plastic models, etc., and can be used for complex plane relief.

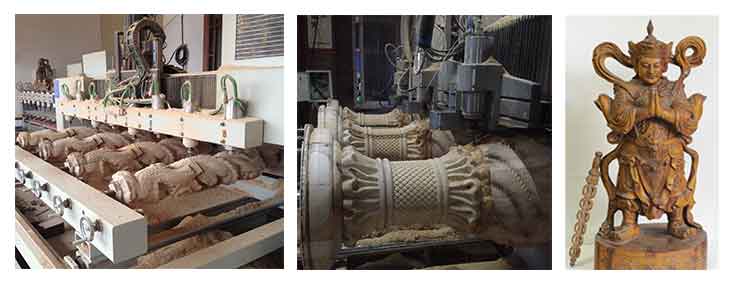

Samples:
Applicable material:
Solid wood panel, Artificial board, Acrylics, PVC, MDF, Carbon fiber
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package is much more strong and environmental protection. We can also make package according to your requests.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
