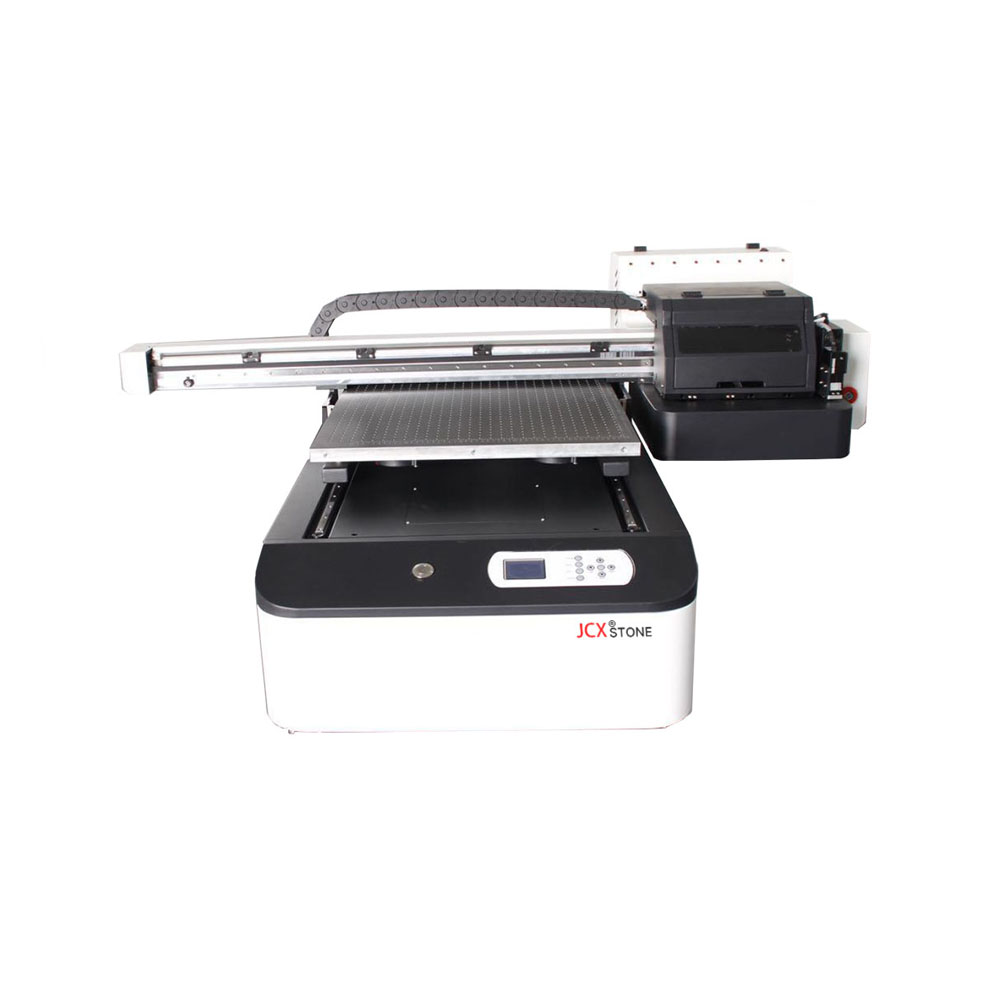

JCXstone-6090UV
JCXStone
UV Printer
Samples :
Product Advantages :
UV Flatbed Printer has a wide range of printing materials.
UV Flatbed Printer has low printing cost.
UV Flatbed Printer has fast printing speed.
UV Flatbed Printer has rich colors and clear and vivid images.
UV Flatbed Printer is environmentally friendly and reduces pollution.
Specification :
Model | JCXstone-6090UV |
Print head | 3pcs Epson XP600 |
Print color | CMYK, LC, LM, White, Varnish |
Print resolution | Upto 1440dpi |
Print height | 15cm |
Print size | 60cm*90cm |
Print Speed | 8sqm/hour (4pass) 5sqm/hour (6pass) 2sqm/hour (8pass) |
Ink Type | UVInk |
Dry system | UV Led lamp |
Media Type | Glass, acrylic, wood, ceramic tile, phone case, phone case, pen, golf ball… |
Image data format | TIFF,JPEG |
RIP Software | Photo print |
Operation environment | Power supply: 220v(±10%), >10A,single phase (Temperature): 18°C-35°C (Humidity): 40%-70% |
Power Consumption | 1200W |
Computer system | Windows7 / Windows10 |
Machine Size (LxWxH) | 1608*1650*670mm/200KG |
Packing Size (LxWxH) | 1790*1730*840mm/300KG |
Certification | CE |
Detail :

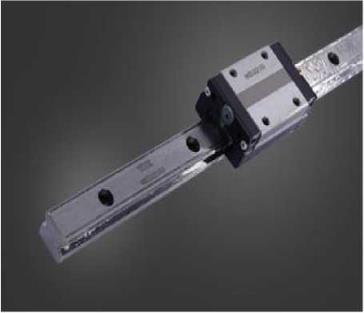

1.Jap an imported THK rail Original THK guide imported from Japan, high precision, stable, quiet and silent……

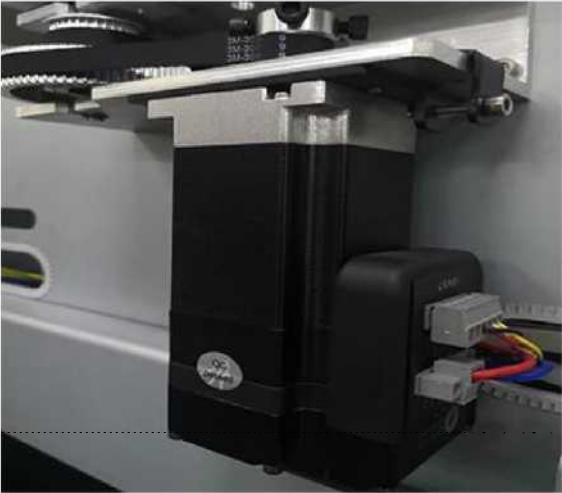

2.Leadshine motor
Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.

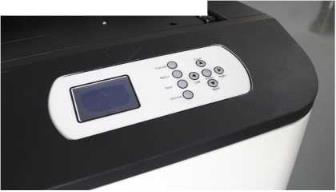

3.Control Panel
Simple and convenient with LED screen，easily switch to different interfaces,easily turn on or turn off.
4.Intelligent ink saaping design

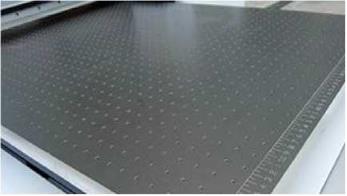

5.Suction platform
Full width 6Q*90cm Printing Suction Plat form, ST with scale, easily, measurement and posit ioning, firmly adsorbing printing.
6.Uv Led Curing System
High efficiency,double lights with water cooling, working time is longer than 20000 hours, energy conservation and environment protection.
Frequently Asked Questions By Customers :
Do you offer free printing samples?
Yes, we can print some samples according to customer’s requirements.
What’s your delivery time?
We will arrange the delivery within 3~7 working days after received the deposit.
What payment method are supported?
Payment method is T/T or LC, PayPal, Western Union, Credit Card, etc.
If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
Service Advantages :
24 hours technical support by email or phone.
The seller provides maintenance and all spare parts of the machine within one year warranty.
Under the Normal working condition, the whole machine is in the guarantee.
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
