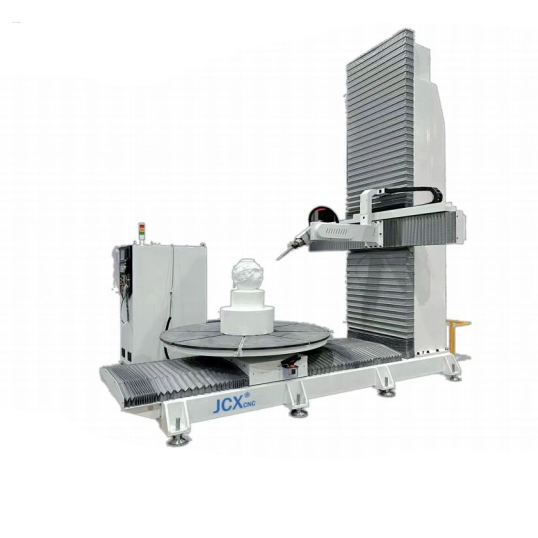

Vertical Five-Axis Foam Engraving And Milling Machine

This machine is equipped with Five-Axis, and can quickly carve 360 degrees without dead corners. After the machine uses computer composition, it can carve exquisite patterns on various foam materials. It is meticulous and fast. No matter how complex the style you choose, we can carve it out. This is a machine that can improve efficiency and has high cost-effectiveness.

Availability:

Quantity:



Inquiry Add to Basket PDF Export

Model:
JCXLaser-1525
Brand:
JCX

Product Description

Vertical Five-Axis Foam Engraving And Milling Machine

Product Parameters :

Model	JCX-1525
Control System	Five-Axis Controller (Handwheel
Working Size	250015001500mm (X/Y/Z axis) A-axis+10°~-120° ,C-axis +360
Working Speed	0-5000mm
Bed Frame Structure	Thickened square tube welding, Aging treatment.
Working Table	T-slot working table
Guide Rail	Precision linear guide rail
Transmit	X/Y/Z axis, TBI ball screw
Spindle Motor	7.5KW air cooling spindle, 0-18000 RPM
Servo Motor	Servo drive and motor
Electrical Cabinet	Classic upright cabinet
Lubrication System	Automatic filling oil
Power Supply	380V 50 Hz, three-phase
Graphic Requirements	CAD drawings such as .dxf and.dwg,as well as 3D graphics
System Code	txt, .nc and other standard G-code
Packing Size	450022002300mm,3050kgs

Machine Feature :

c653b328fc4ea3572c1c0285cc8f5007 600677ce60845bcf53fe2546aaacb21e 0ed1c96df3c3a8a77acd8bbd39391e2d
