JCXstone-J610
JCXStone
Vinyl Cutter
product Details :

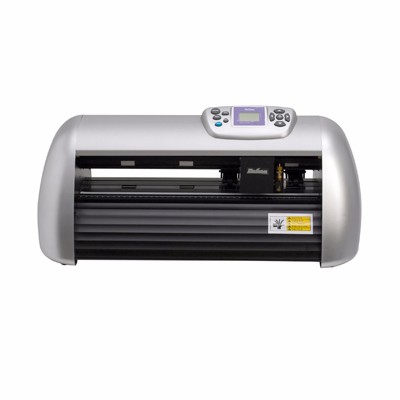

J305 Step Motor Vinyl Cutter

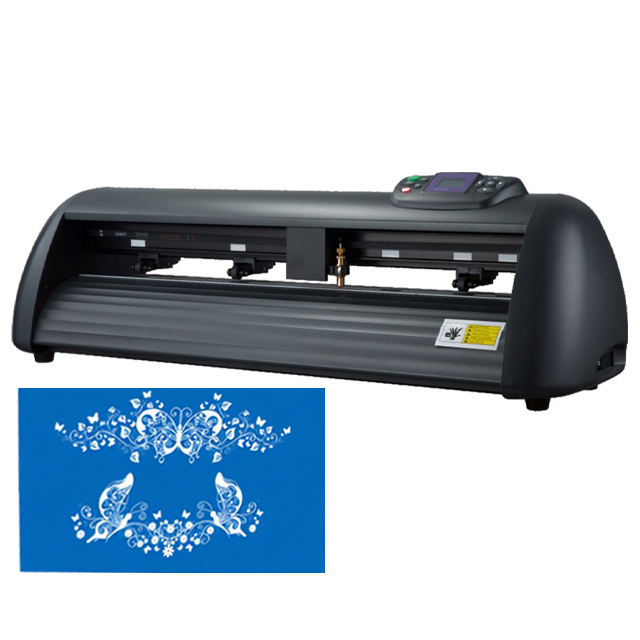

J610 Step Motor Vinyl Cutter

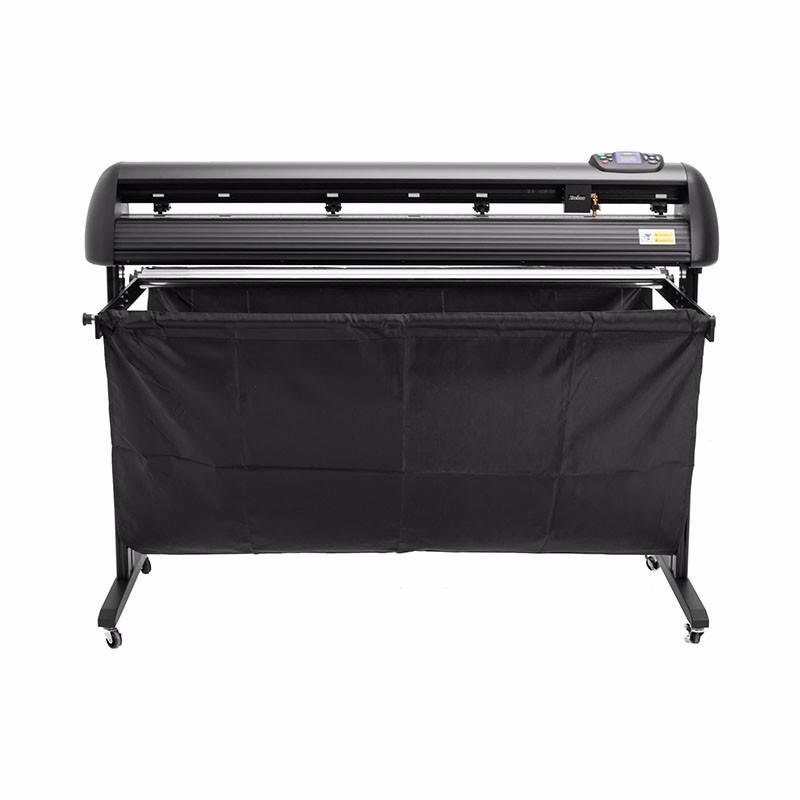

J1200 Step Motor Vinyl Cutter
Parameter comparison :
Model | J305 | J610 | J1200 | ||
Manually Contour Cutting | Optional | ||||
Automatically Contour Cutting | x | ||||
Bluetooth Wireless Communication | x | ||||
U-disk Offline Work | Optional | ||||
Coreldeaw.Ai Output Directly | x | ||||
Wifi Wireless Communication | x | ||||
Interface | USB 2.0,RS232C | ||||
Max.Cutting Speed | 600mm/s | ||||
Driver | 1A stepper motor,10 microstep subdiving driver | ||||
Work Noise | 72-78db | ||||
Max.Cutting Thickness | 1mm | ||||
Pressure | 50g~800g(160 Adjustable) | ||||
Display | 4*8 High definition LCD | ||||
Mechanical Precision(mm) | 0.025mm | ||||
Repeat Accuracy | 0.1mm | ||||
Power Supply | AC90~240V/50Hz~60Hz | ||||
Operating Environment | Temperature:+5℃~+35℃,Relative Humidity:30%~70% | ||||
Maximum paper width | 415mm | 720mm | 1300mm | ||
Max.Cutting Width | 305mm/12 inch | 610mm/24 inch | 1200mm/48 inch | ||
Support Mode | x | Optional | Standard accessories | ||
Net Weight | 585*265*270mm/9kg | 890*265*270mm/12kg | 1530*265*270mm/28kg | ||
Gross weight | 715*380*395mm/12.3kg | 1015*380*395mm/16kg | 1595*380*395mm/32.5kg | ||
Company Introduction :
Beijing Yandiao CNC Machine Company, mainly engaged in the design, research, and production of CNC machines since 2010. Factory, over 8000² workshops, with more than 80 working people, is located in Jinan city, Shangdong province.Focus on providing solutions for the cnc machine industry. We have our own machining workshop. All machines frame, gantry, and Z-axis are made in our own workshop. In this way, we can ensure our good quality and lower the cost.We can design and produce according to customers' requirements. (including machine structure, type, color, spare parts, and so on ).We can make OEM. ( with customers' own logo on the machine )
We have rich experience in exporting, and we will prepare well all customs documents and CO for making customs successfully.
